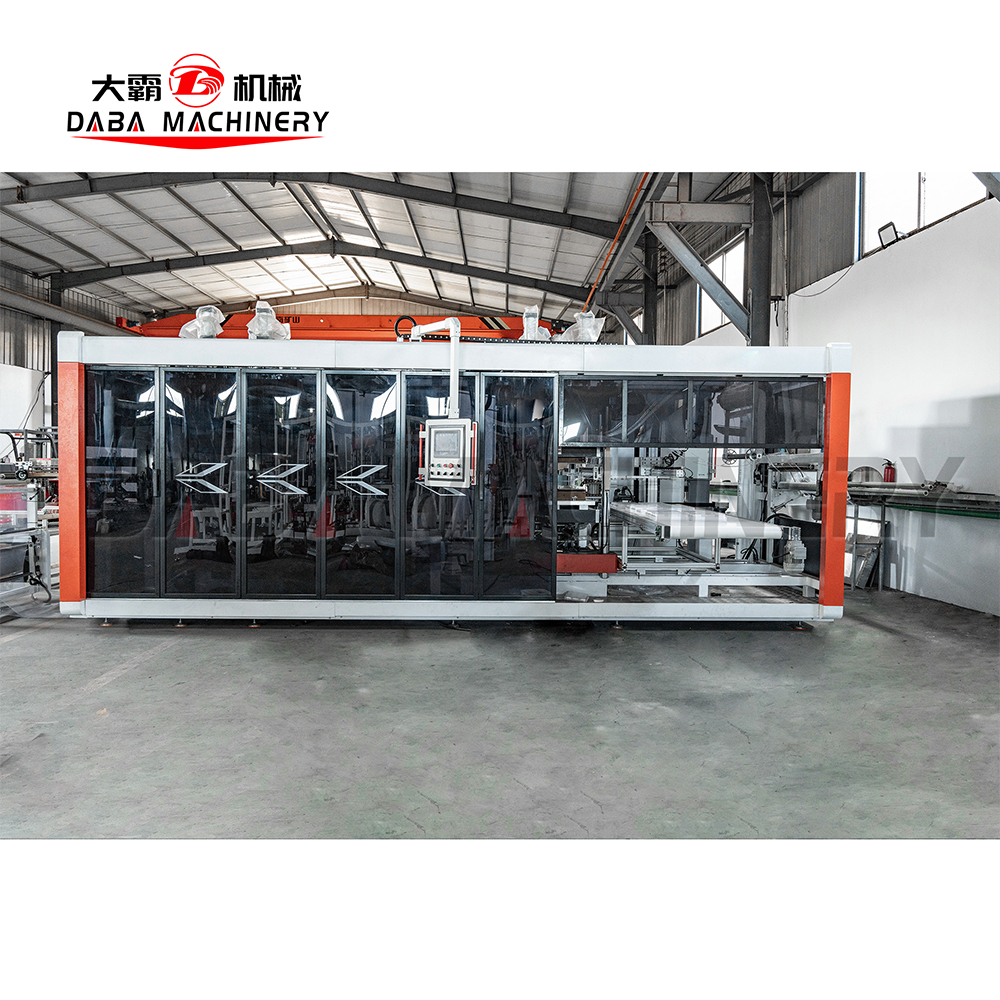

DB-HY70/80 BOPS Three-Station Plastic Thermoforming Machine


ItemSpecification
ModelDB-HY70/80
Max Forming Area700 × 800 mm
Max Forming DepthIn-mold pick-up: 75 mm / External stacking: 120 mm
Material Thickness Range0.1 – 1.0 mm
Max Cutting Force70 Ton
Production Speed600 – 1500 cycles/hour
Total Heating PowerZone A: 20 KW / Zone B: 36 KW
Total Motor Power23 KW
Air Pressure0.7 MPa
Air Consumption3000 L/min
Water Consumption50 L/min
Power SupplyAC380 ±15V, 50/60Hz
Sheet Roll Diameter1000 mm
Machine Weight10,000 kg
Main Machine Size (L×W×H)7670 × 1705 × 2830 mm
Loader Size (L×W×H)1440 × 1323 × 1306 mm

Get A Quote

Product details


The DB-HY70/80 BOPS Three-Station Plastic Thermoforming Machine adopts a new design concept and advanced control system, integrating both positive-pressure and positive/negative-pressure thermoforming modes that can be freely switched to meet different production needs. It is suitable for processing BOPS, PET, PS, PVC, PLA and other thermoplastic materials, enabling the production of high-transparency and high-stretch flanged or flat-edge products such as bowls, dishes, lids, fruit trays, mooncake trays, food trays, bakery trays, supermarket trays, medical trays, and daily-use packaging products.

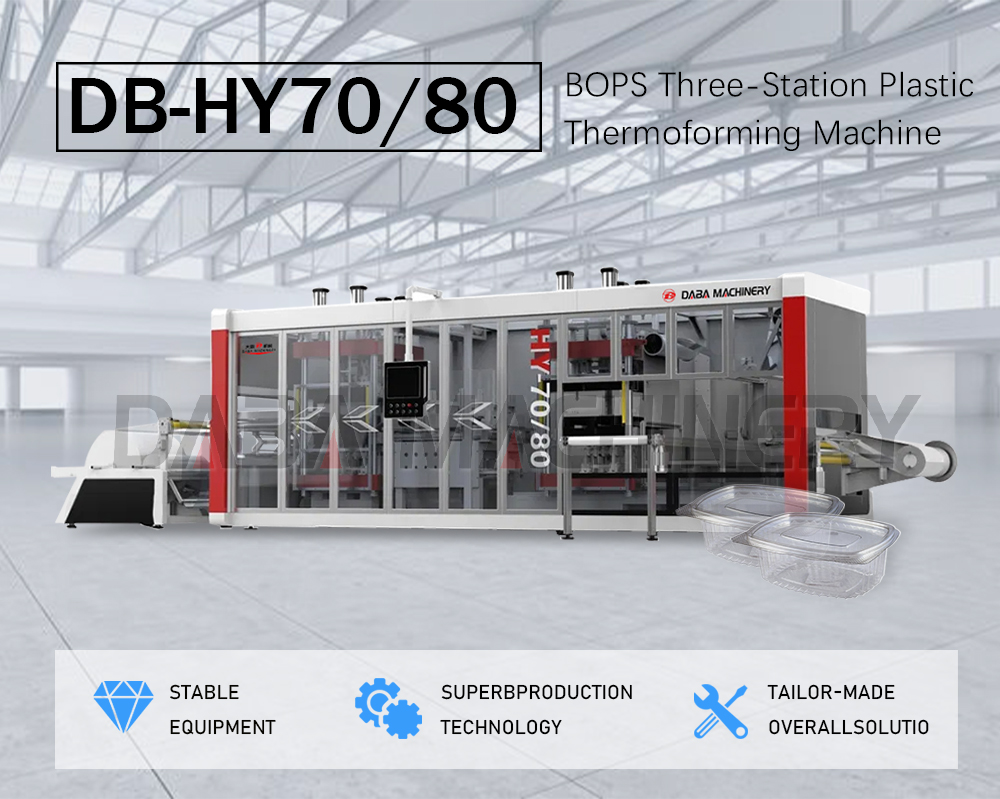

         DB-HY7080 BOPS Three-Station Plastic Thermoforming Machine landing page (1)



DBOP-S7080 BOPS Three-Station Plastic Thermoforming Machine landing page (1)

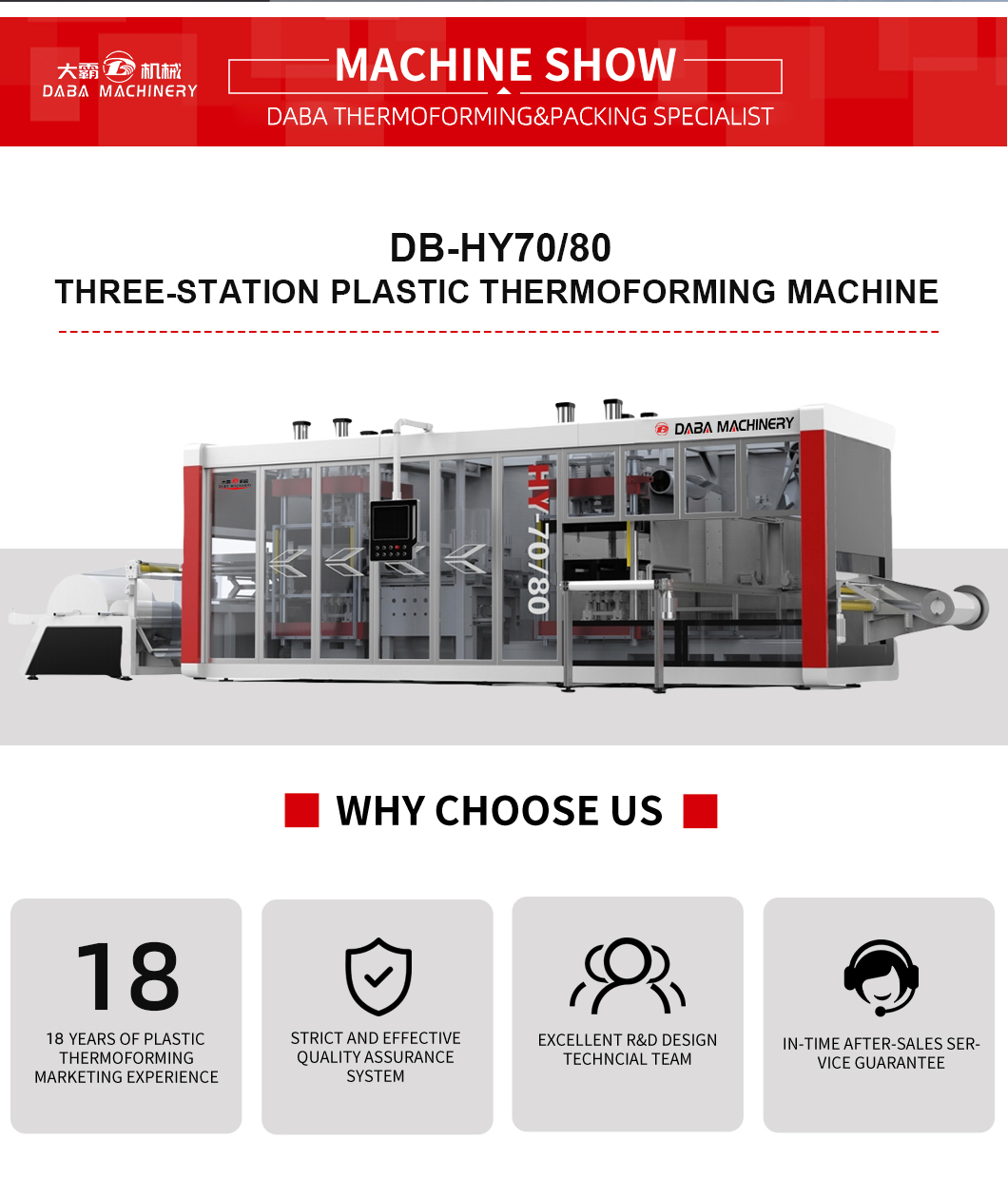

DB-HY7080 BOPS Three-Station Plastic Thermoforming Machine landing page (2)

DB-HY7080 BOPS Three-Station Plastic Thermoforming Machine landing page (3)

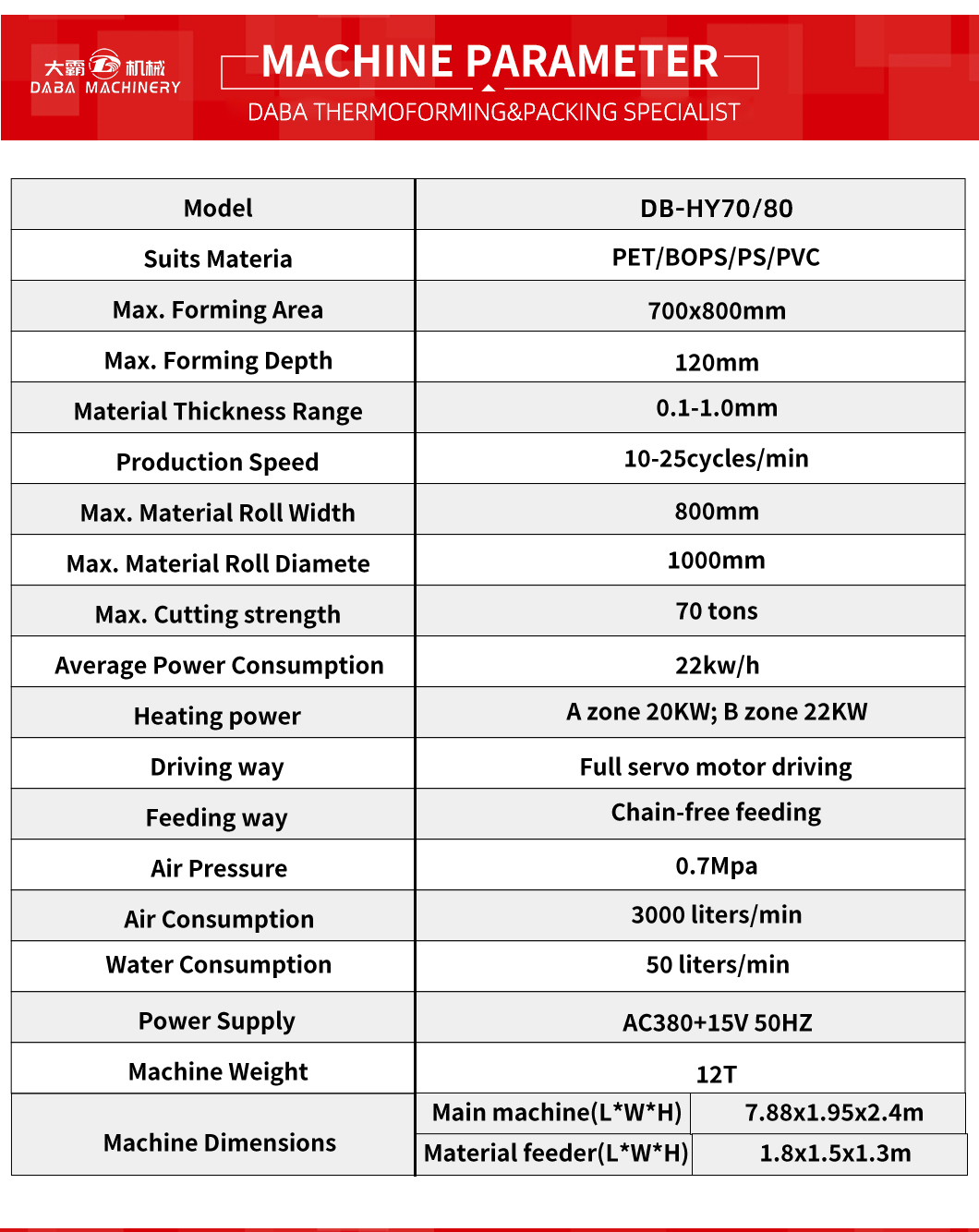

DB-HY7080 BOPS Three-Station Plastic Thermoforming Machine landing page (4)

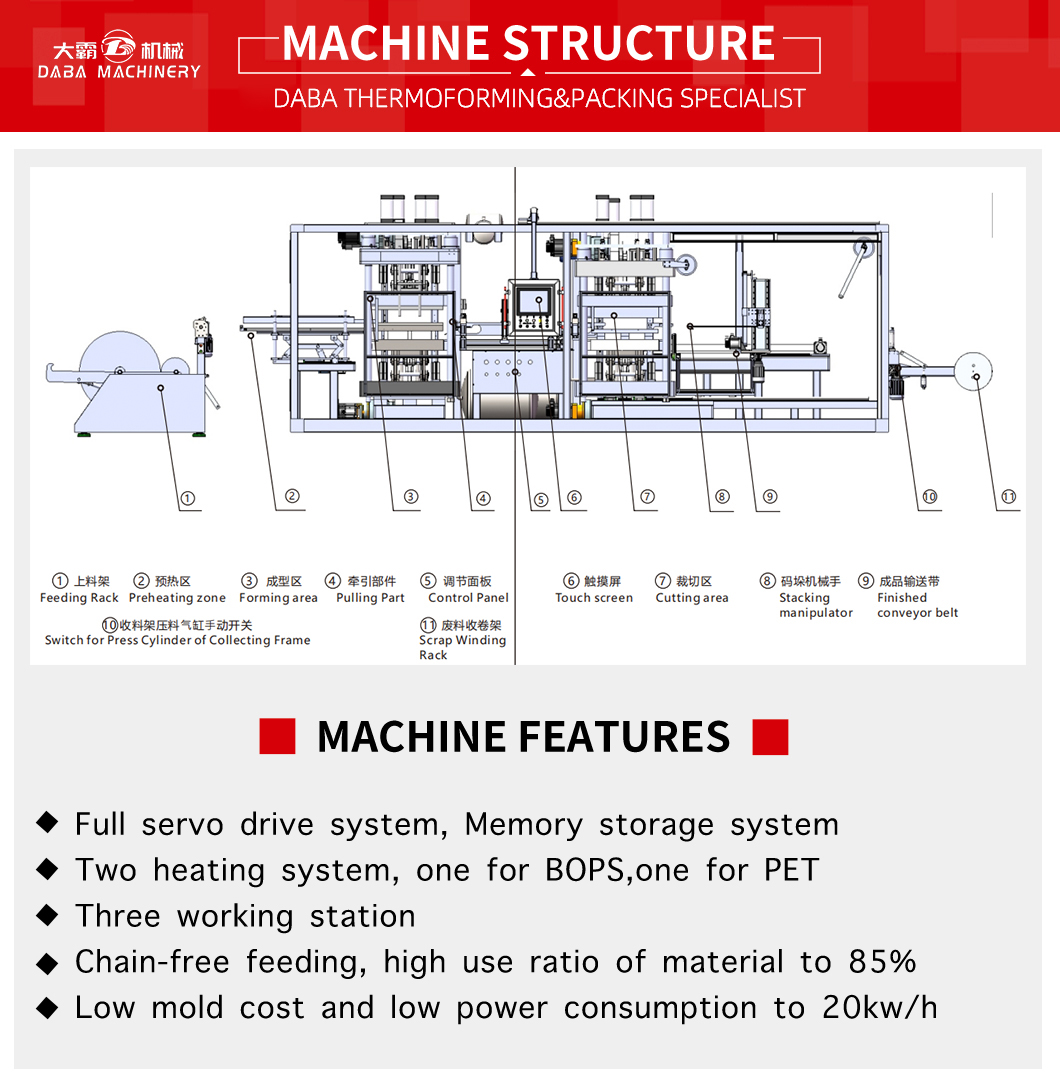

DBOP-S7080 BOPS Three-Station Plastic Thermoforming Machine landing page (5)

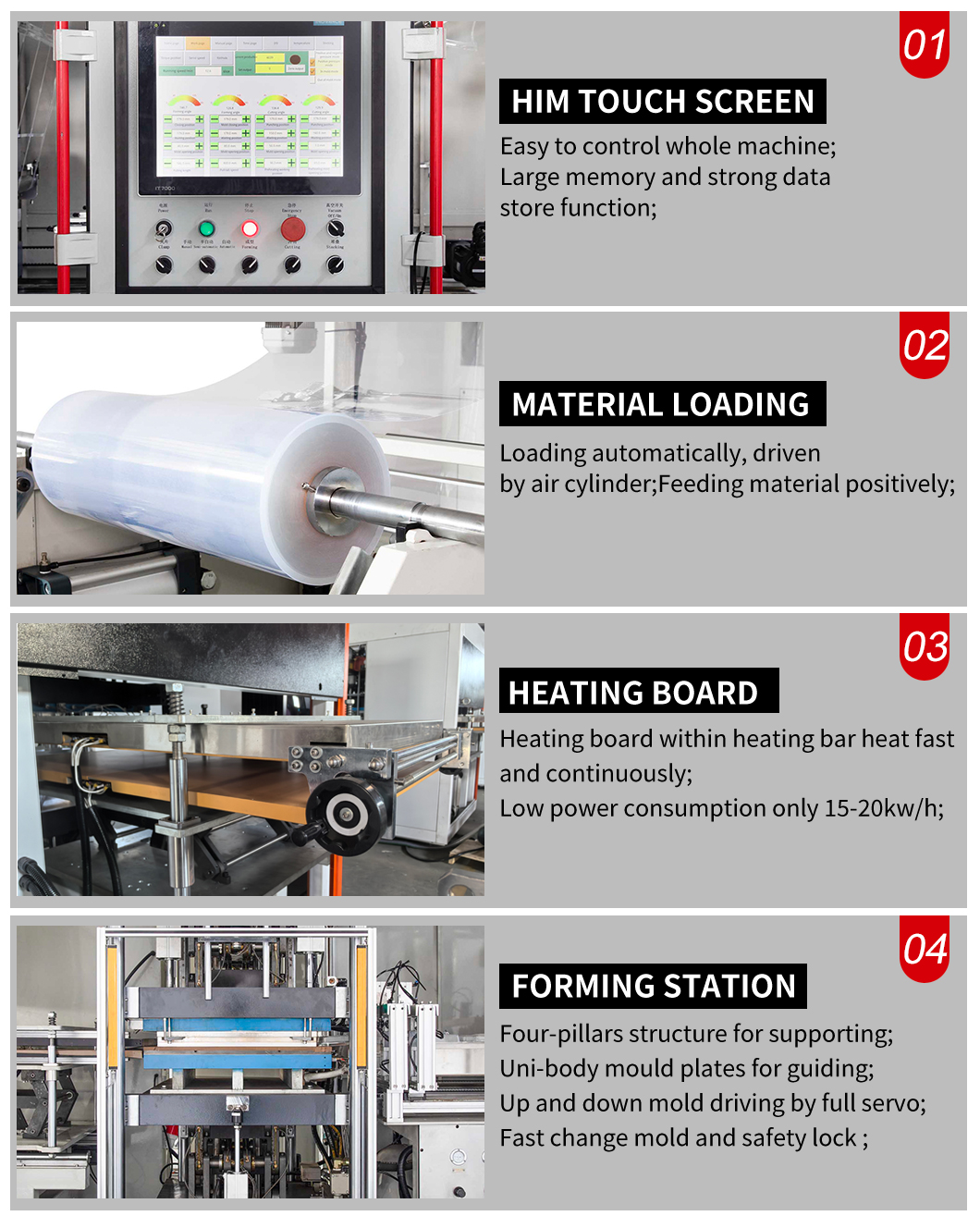

DBOP-S7080 BOPS Three-Station Plastic Thermoforming Machine landing page (6)

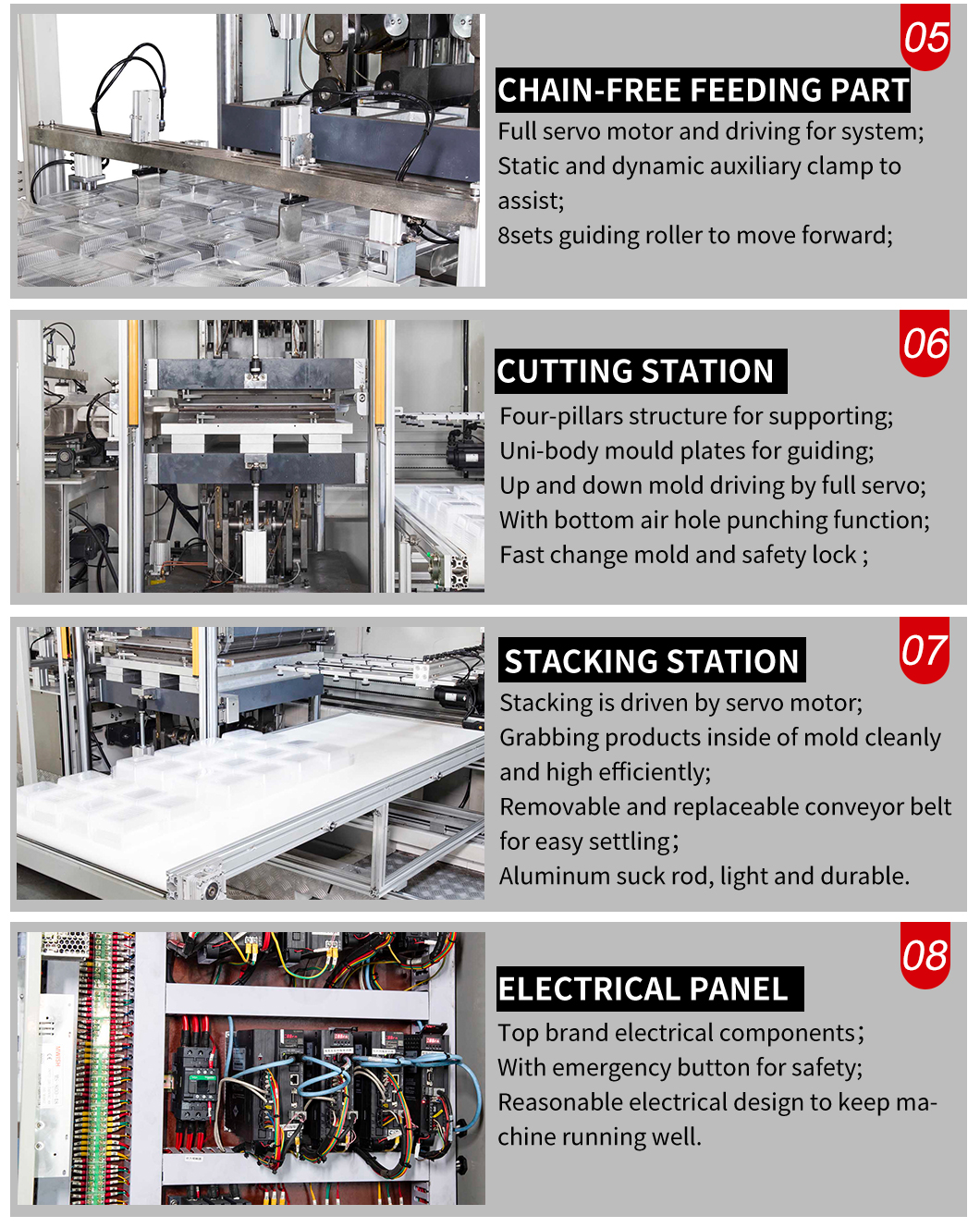

DBOP-S7080 BOPS Three-Station Plastic Thermoforming Machine landing page (7)

DBOP-S7080 BOPS Three-Station Plastic Thermoforming Machine landing page (8)

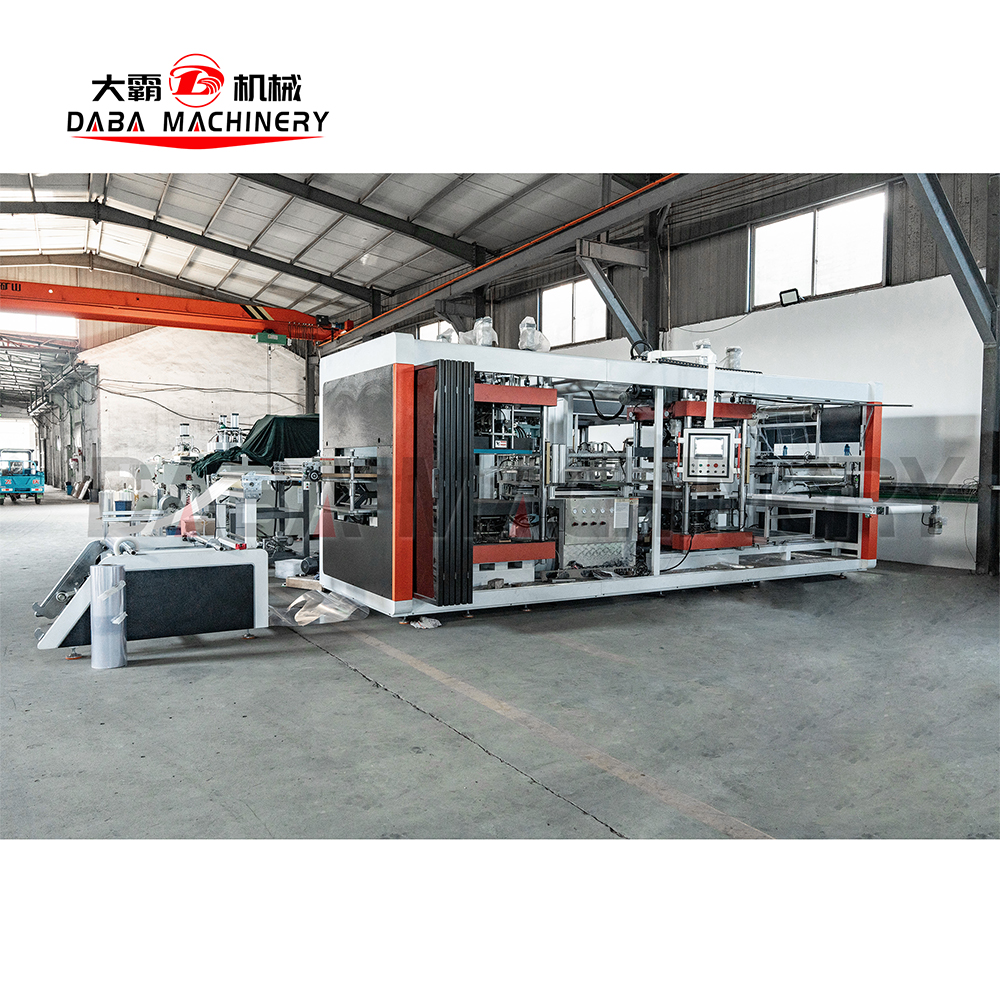

          Three-Station Plastic Thermoforming Machine production
