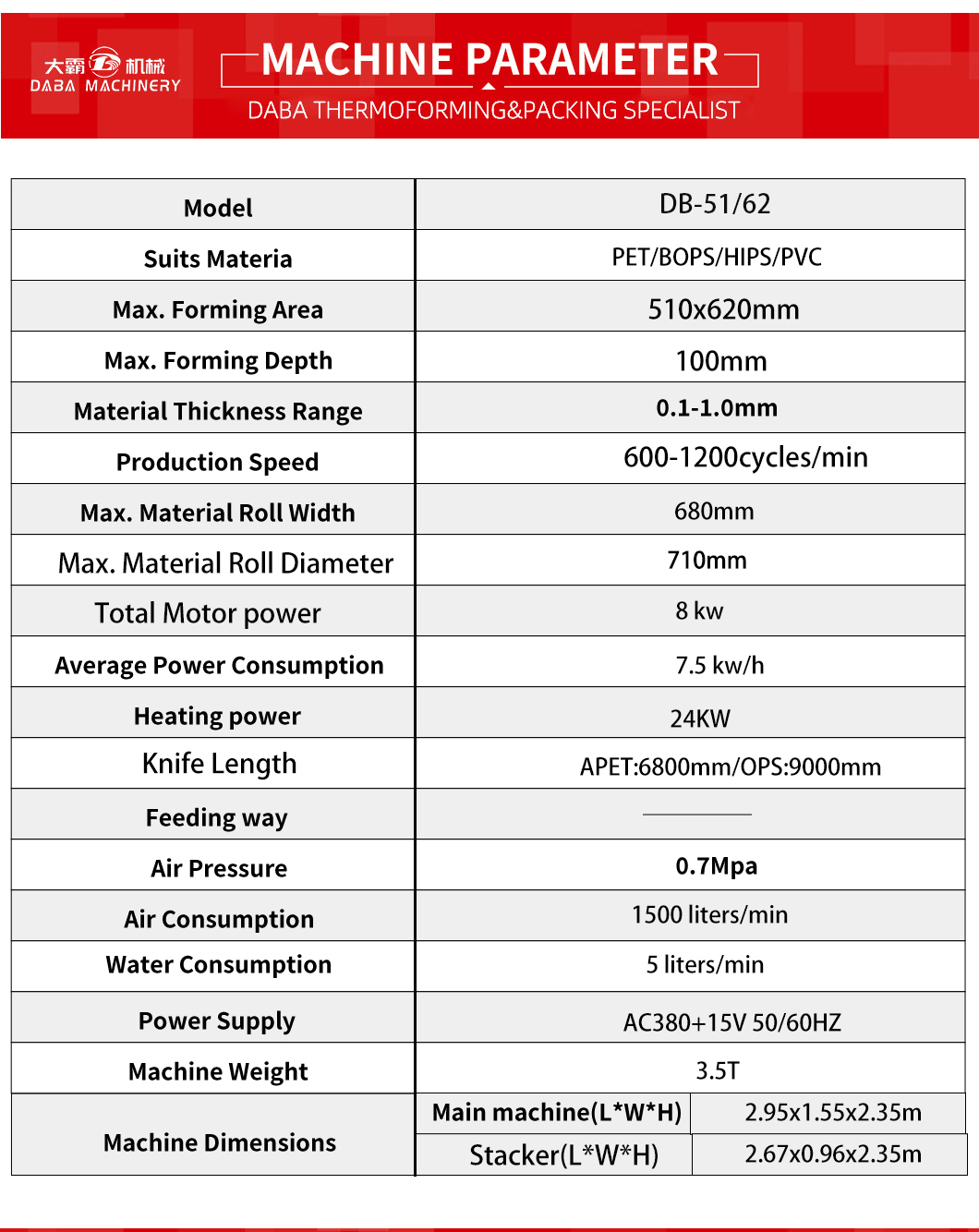

Model | DB-51/62 |
Max.Forming Area | 510x620mm |
Max.Forming Depth | 100mm |
| Material Thickness Range | 0.10-1.0mm |
Air Pressure | 0.7Mpa |
Air Consumption | 1500 Litres/min |
Water Consumption | 5 Litres/min |
Power Consumption | 7.5kw/h(Approximate) |
Total Heating power | 24kw |
Total Motor power | 8kw |
Power Supply | AC380V±15V 50/60HZ |
Production speed | 600-1200 Cycles/h |
Dimensions | 2950x1550x2350mm |
Weight | 3500kg |

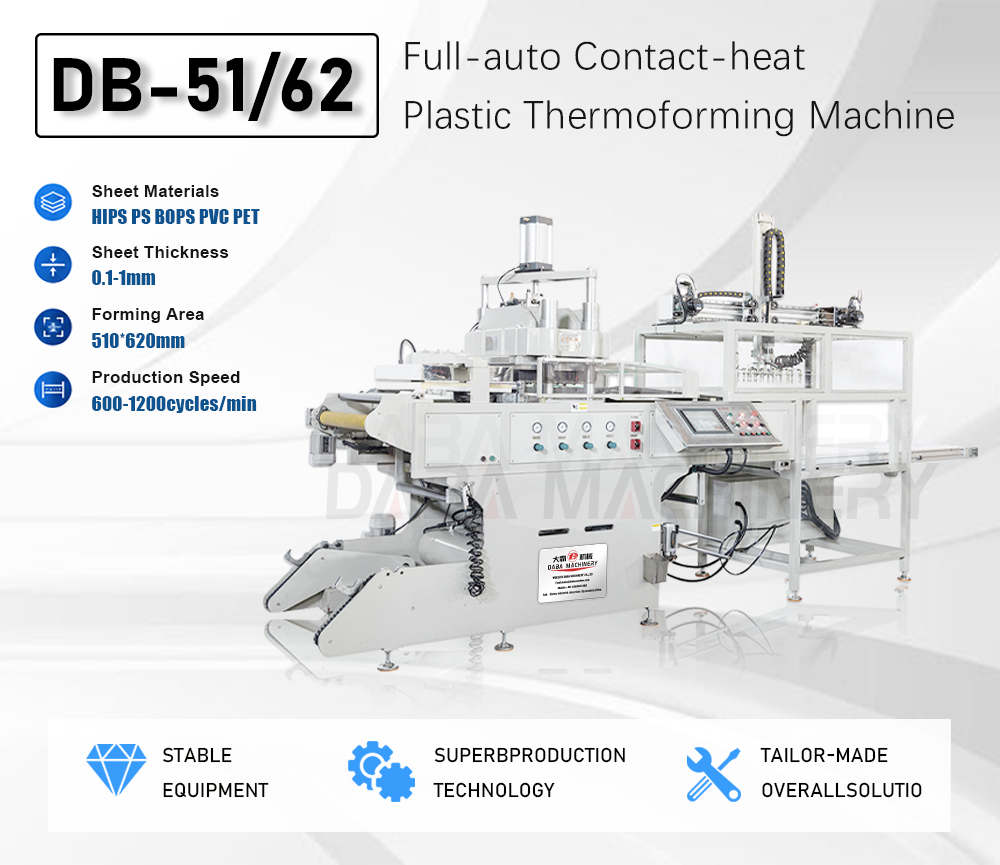

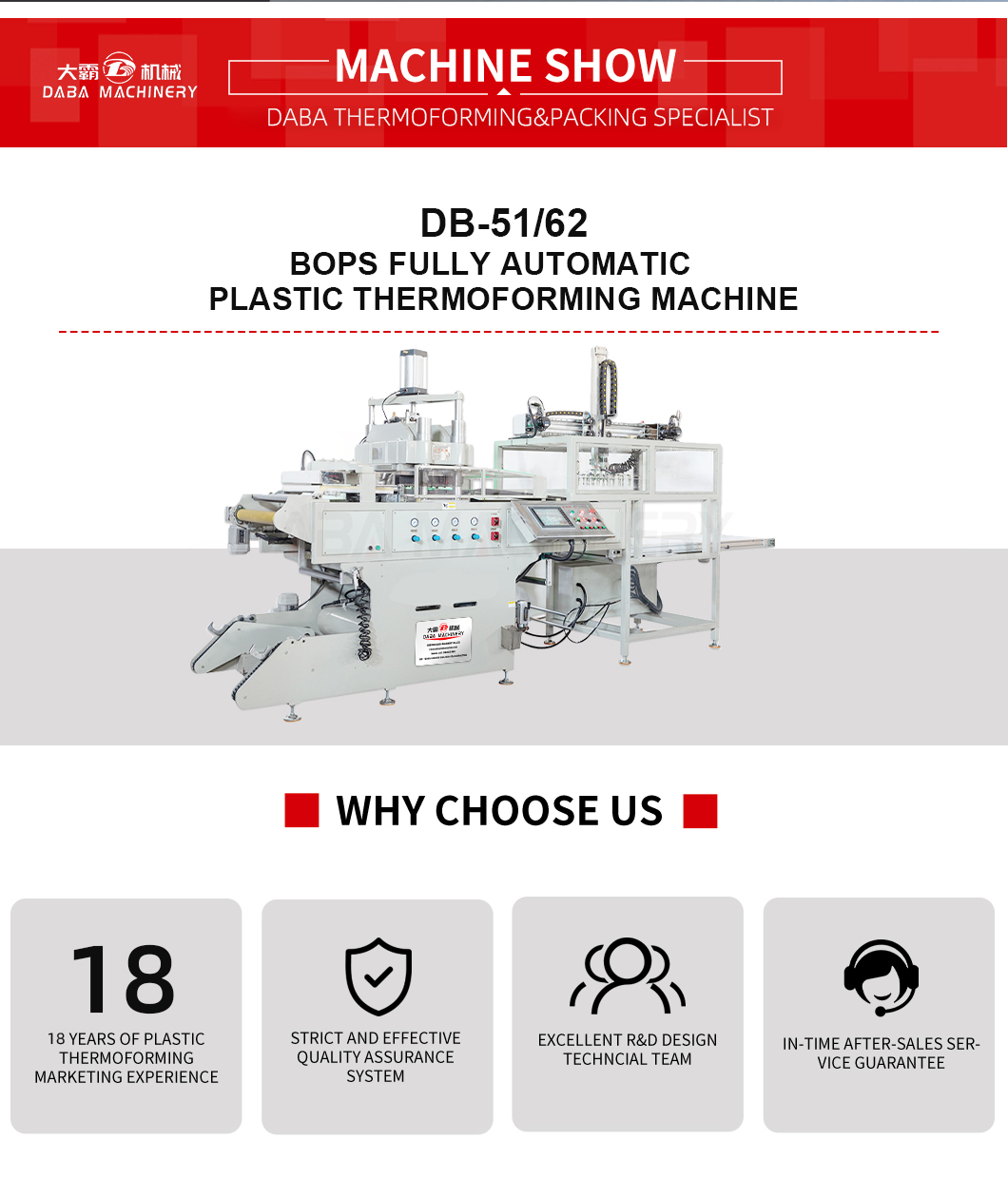

DB-51/62 Plastic Thermoforming Machine is designed for forming PP, HIPS, PS, BOPS, PVC, and PET sheets into various packaging products such as trays, food containers, lids, biscuit trays, mobile phone trays, and blister packaging. Featuring an advanced thermoforming system with integrated heating, forming, and cutting functions, the machine combines mechanical, electrical, and pneumatic technologies under PLC control to deliver high production efficiency, stable operation, easy operation, and consistent product quality.
