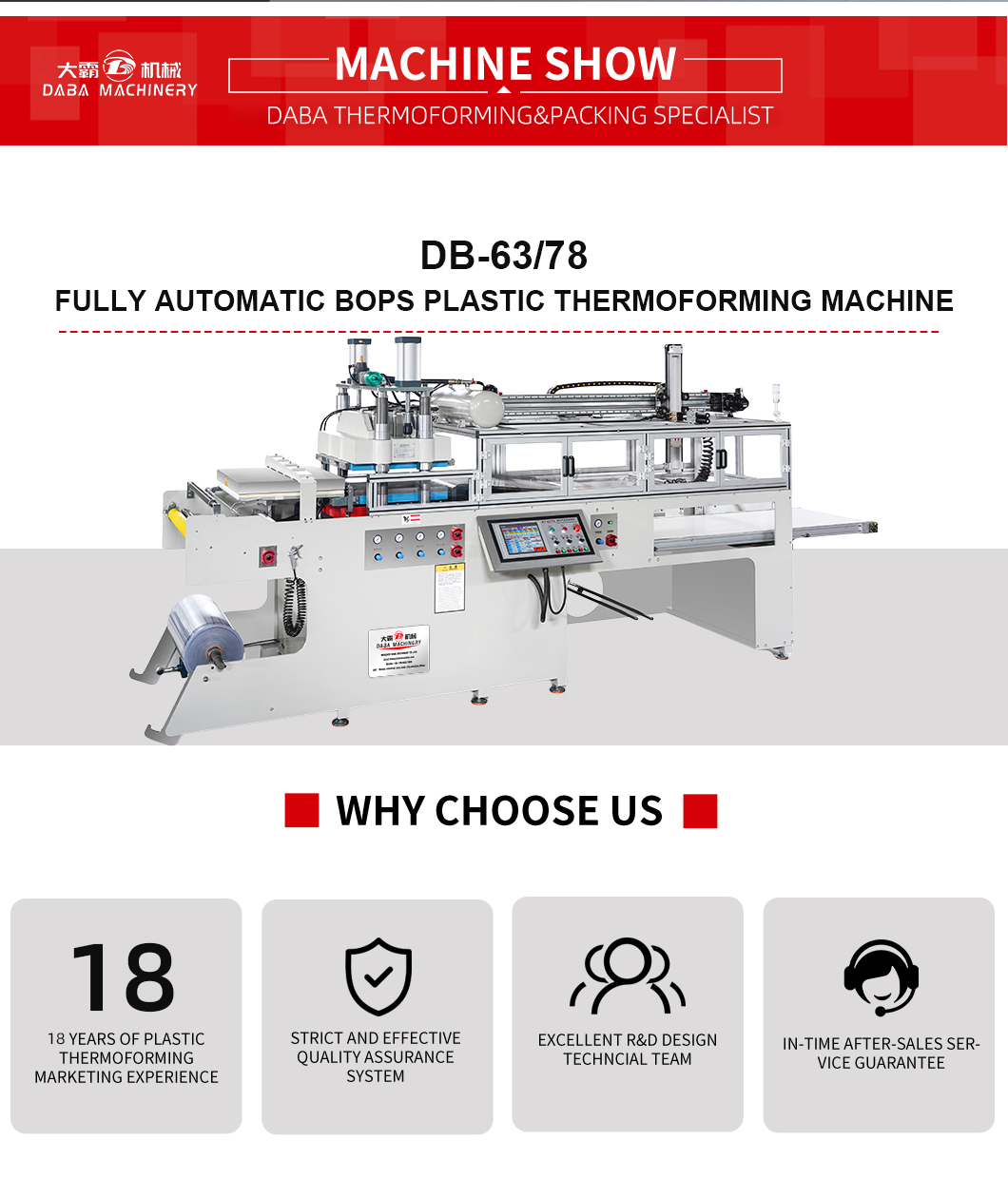

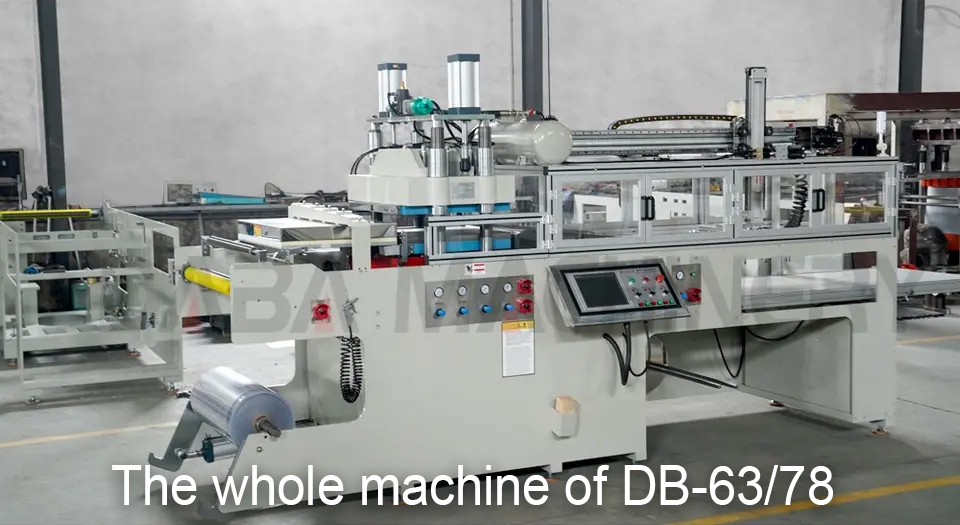

DB-63/78 Fully Automatic BOPS Plastic Thermoforming Machine

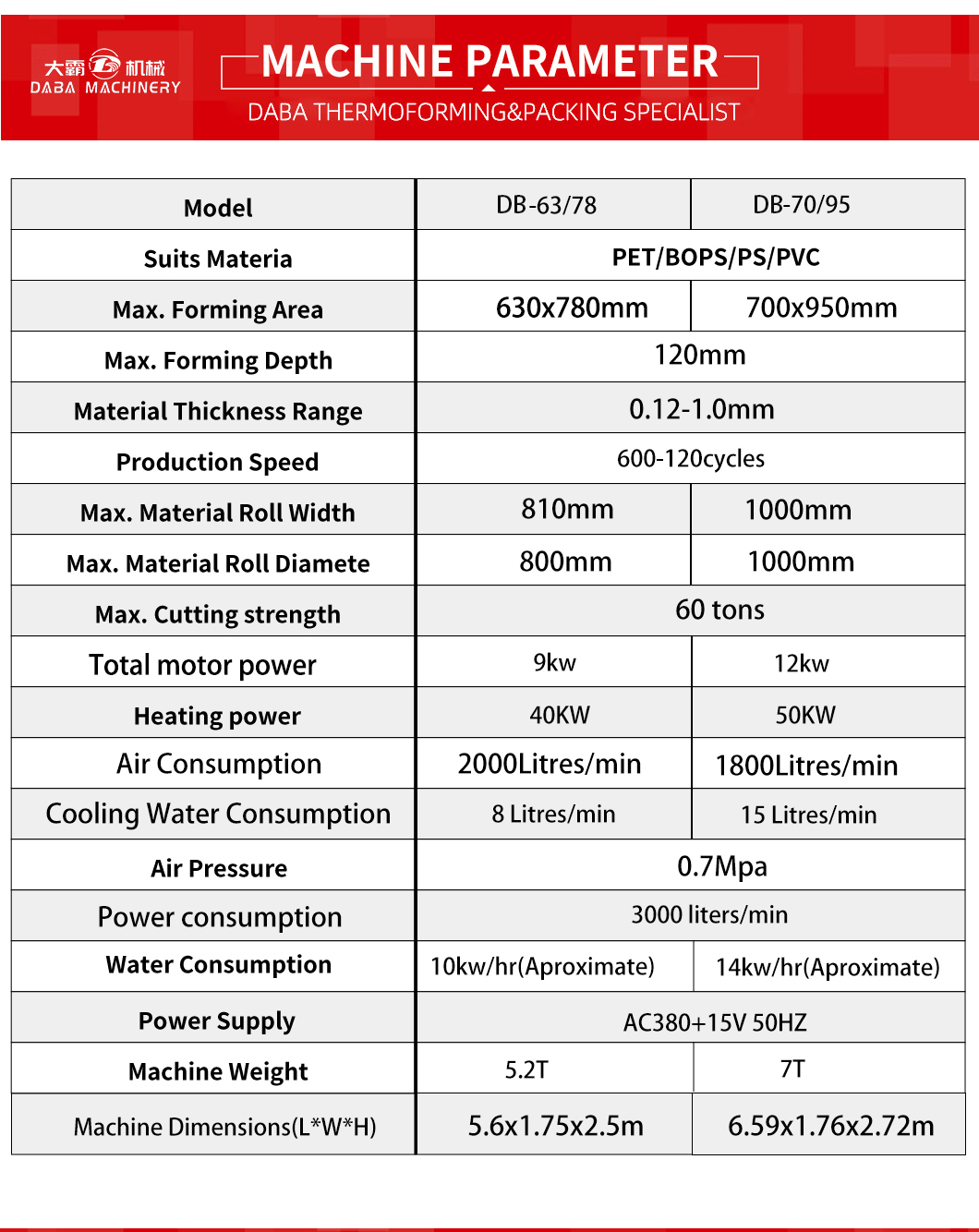

Model	DB-63/78
Max.Forming Area	630x780mm
Max.Forming Depth	125mm
Knife Length	APET：9000mm/OPS：13000mm
Material Thickness Range	0.12-1.0mm
Air Pressure	0.7Mpa
Air Consumption	1500 Litres/min
Water Consumption	8 Litres/min
Power Consumption	10kw/h(Approximate)
Total Heating power	30kw
Total Motor power	9kw
Power Supply	AC380V±15V50/60HZ
Production speed	600-1500 Cycles/h
Max. Material Roll Diameter	800mm
Max. Sheet Width	810mm
Dimensions	5600x1750x2500mm
Weight	5200kg

Get A Quote

Product details

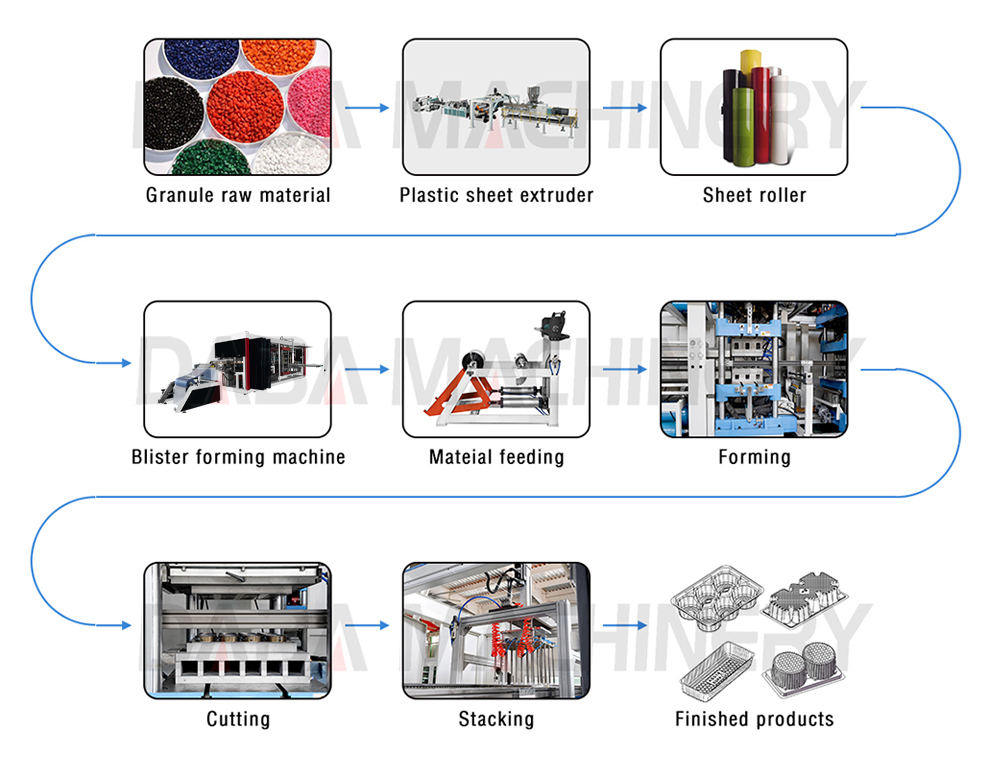

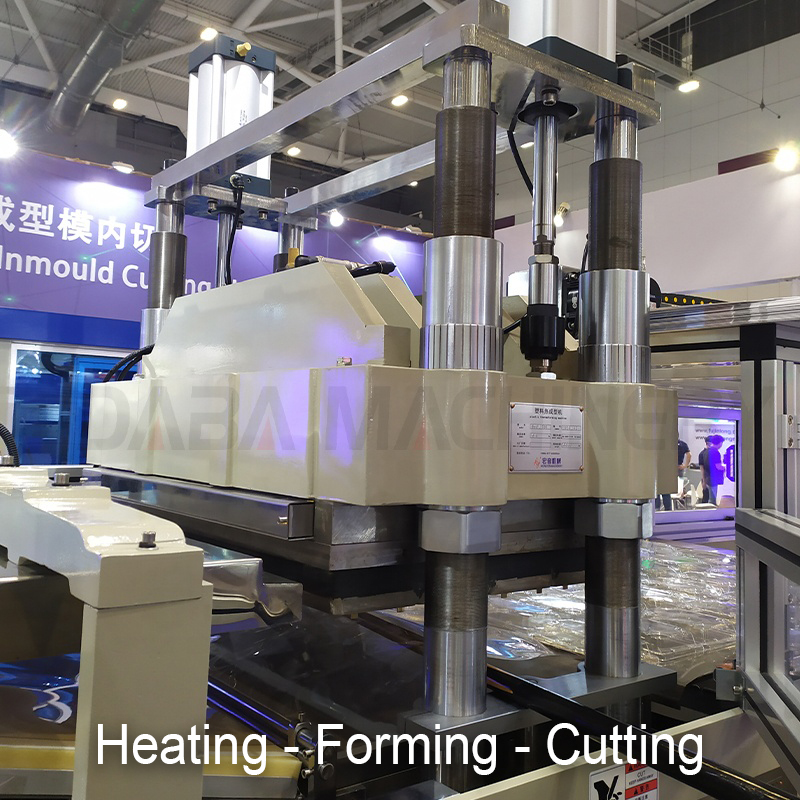

DB-63/78 Plastic Thermoforming Machine is designed for forming PP, HIPS, PS, BOPS, PVC, and PET sheets into various packaging products such as trays, food containers, lids, biscuit trays, mobile phone trays, and blister packaging. Featuring an advanced thermoforming system with integrated heating, forming, and cutting functions, the machine combines mechanical, electrical, and pneumatic technologies under PLC control to deliver high production efficiency, stable operation, easy operation, and consistent product quality.

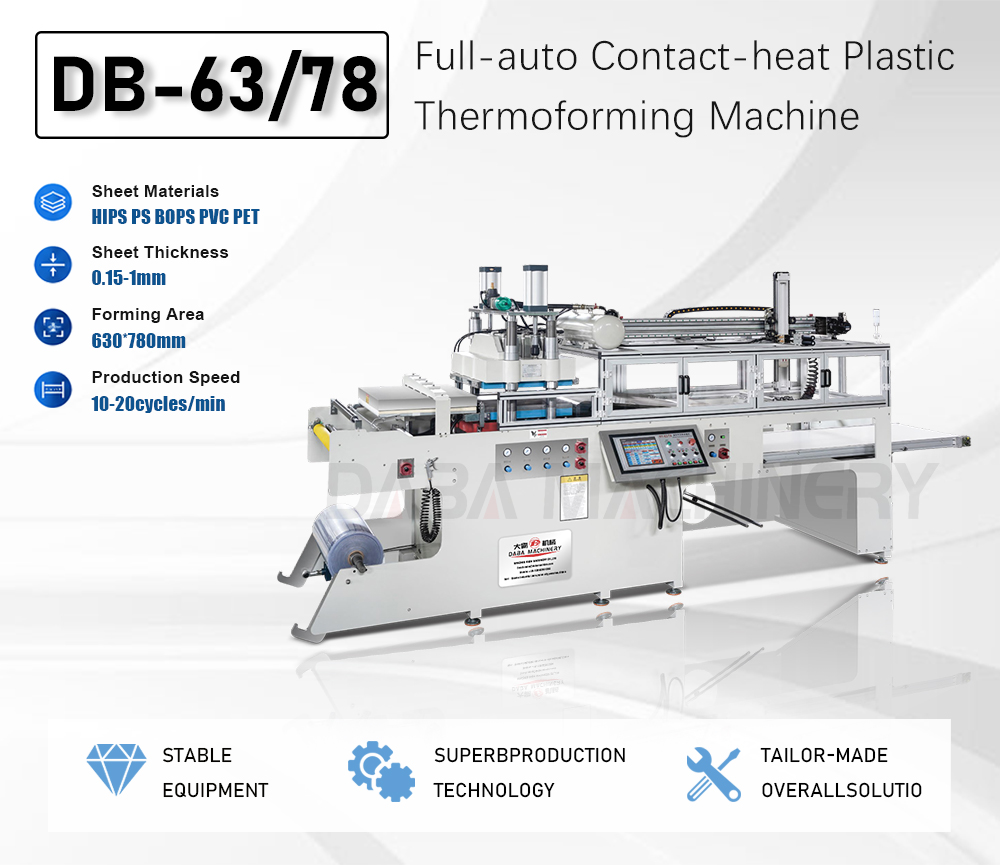

DB-6378 Fully Automatic BOPS Plastic Thermoforming Machine description2
