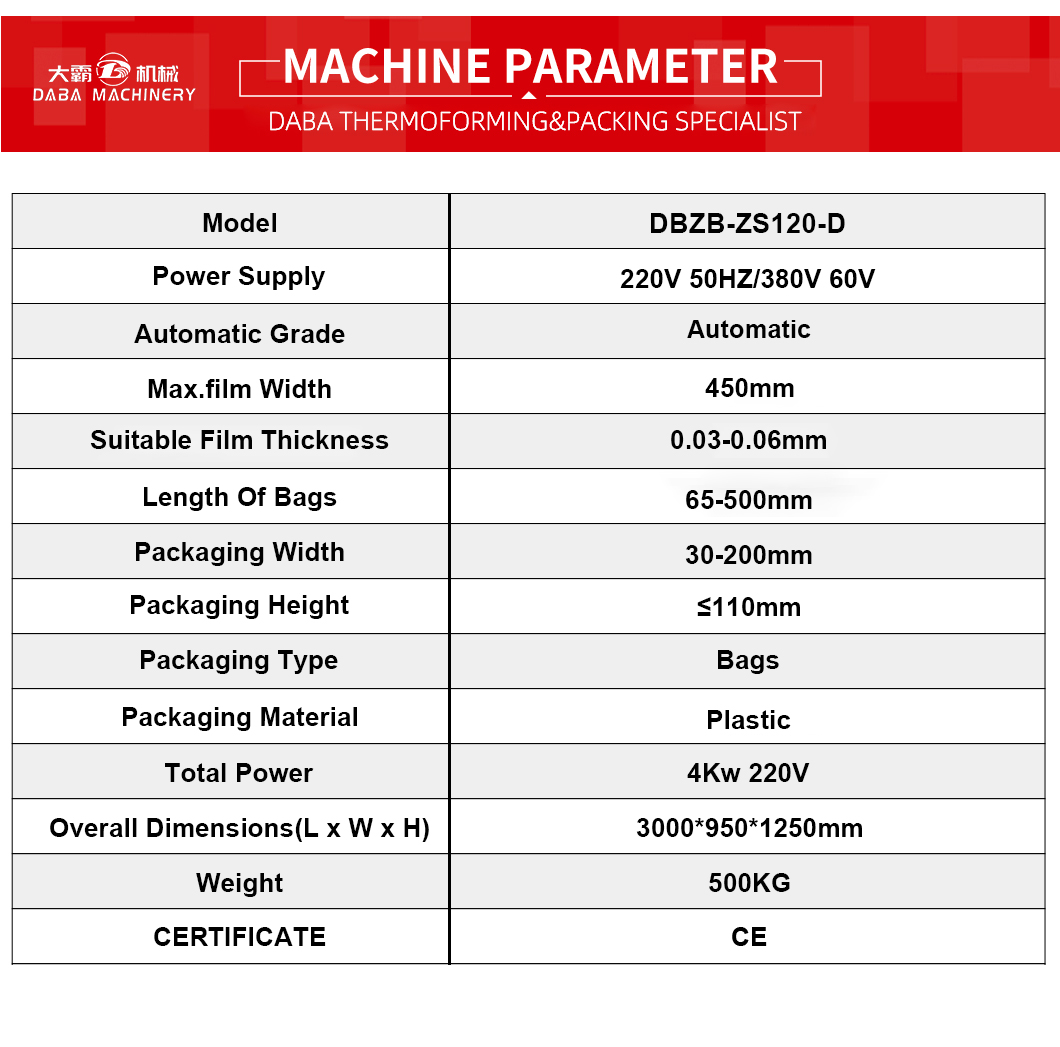

| Item | Parameter |
|---|---|
| Machine Model | DBZB-ZS120-D |
| Power Supply | 220V, 50Hz / 380V, 60Hz |
| Automatic Grade | Automatic |
| Max. Film Width | 450 mm |
| Suitable Film Thickness | 0.03–0.06 mm |
| Bag Length | 65–500 mm |
| Packaging Width | 30–200 mm |
| Packaging Height | ≤110 mm |
| Packaging Type | Bags |
| Packaging Material | Plastic |
| Total Power | 4 kW, 220V |
| Overall Dimensions (L × W × H) | 3000 × 950 × 1250 mm |
| Machine Weight | 500 kg |
| Certificate | CE |

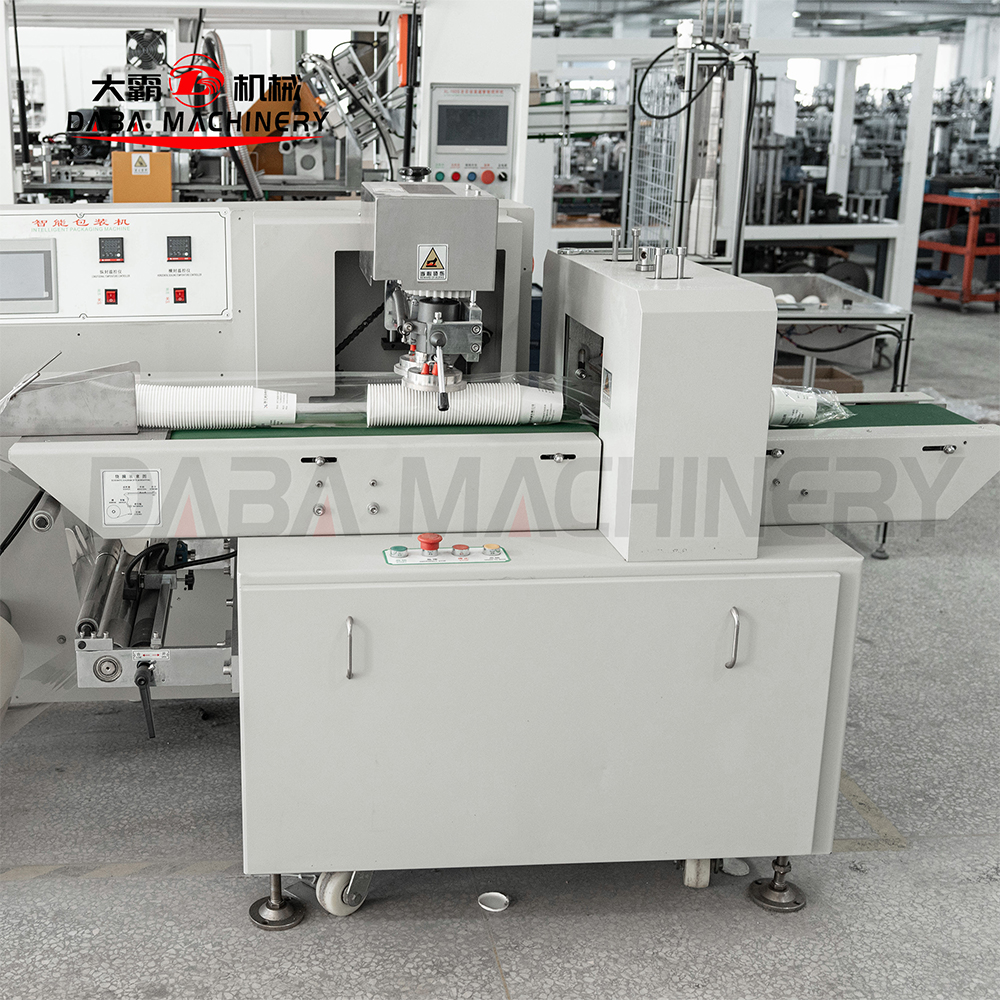

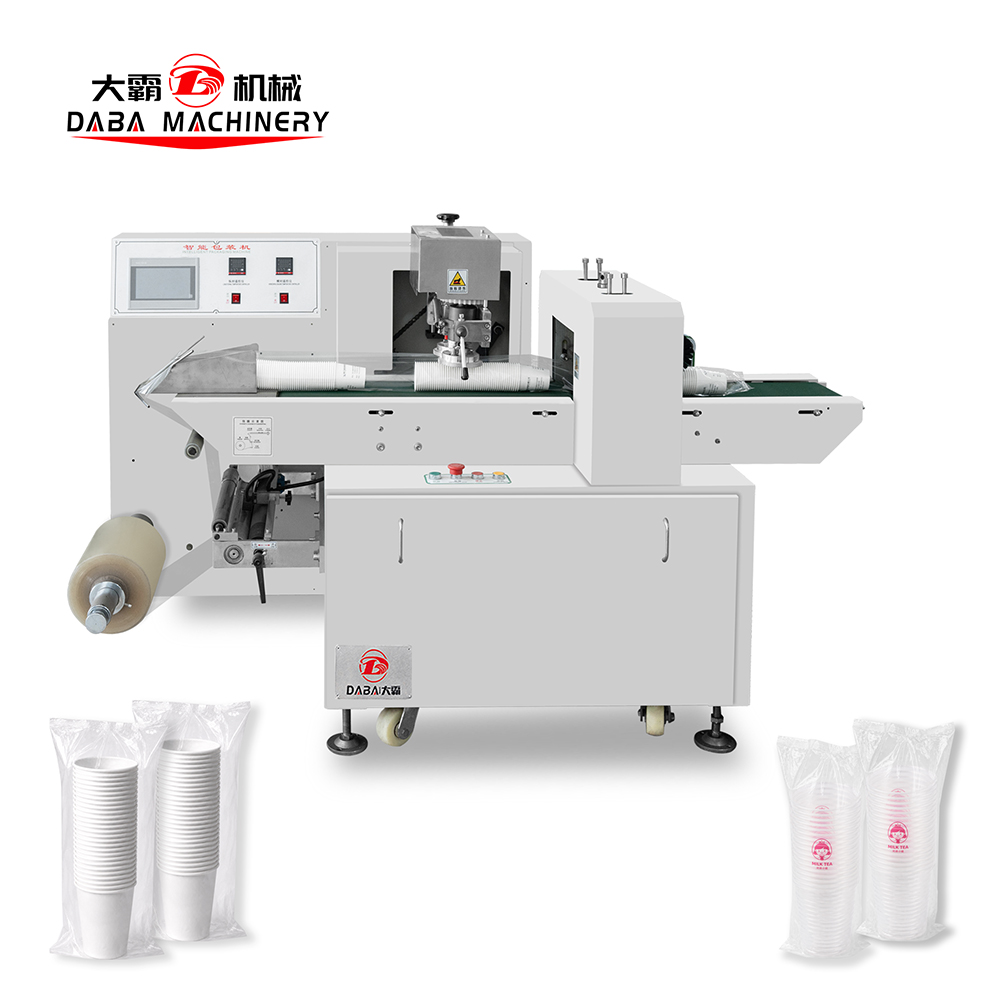

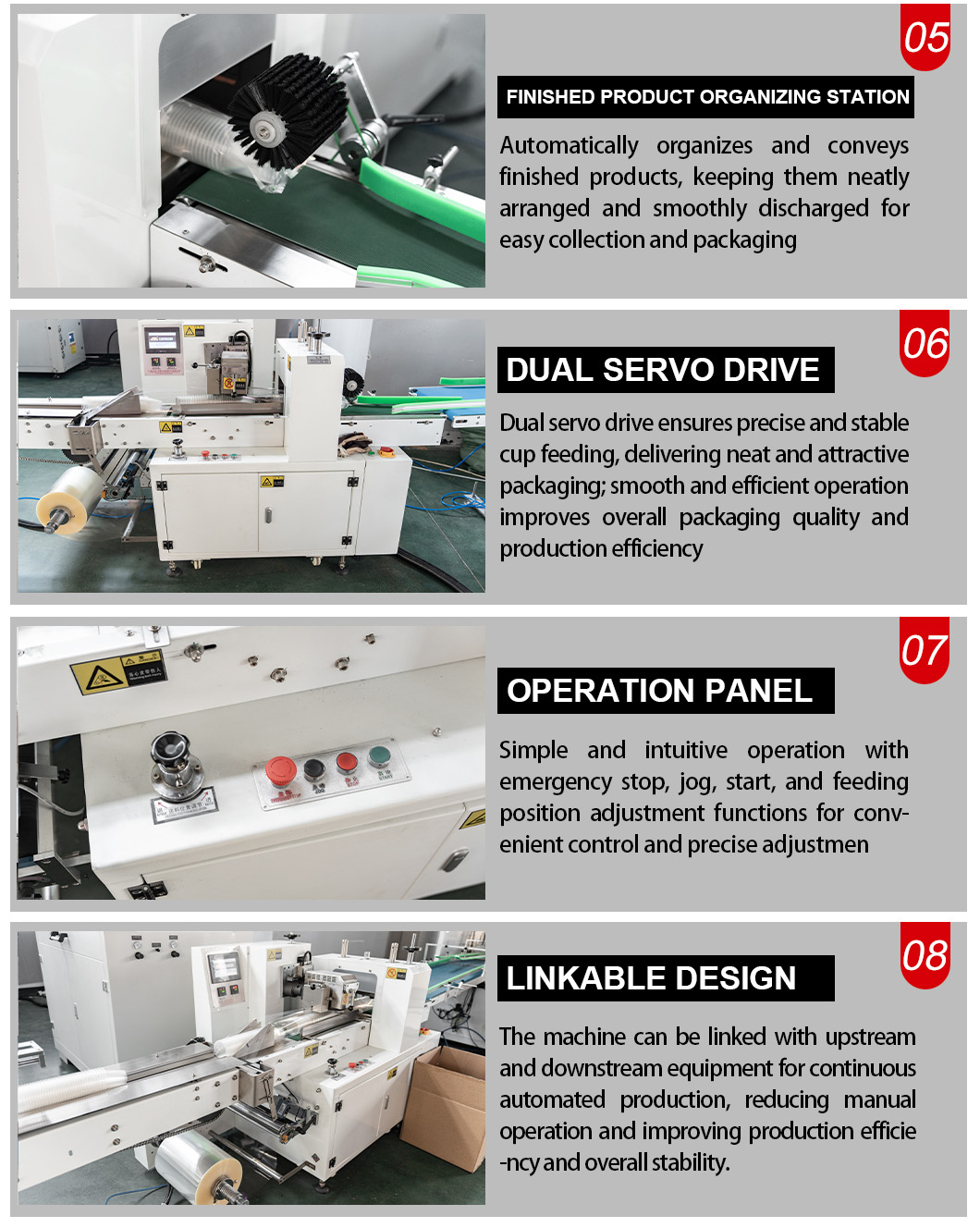

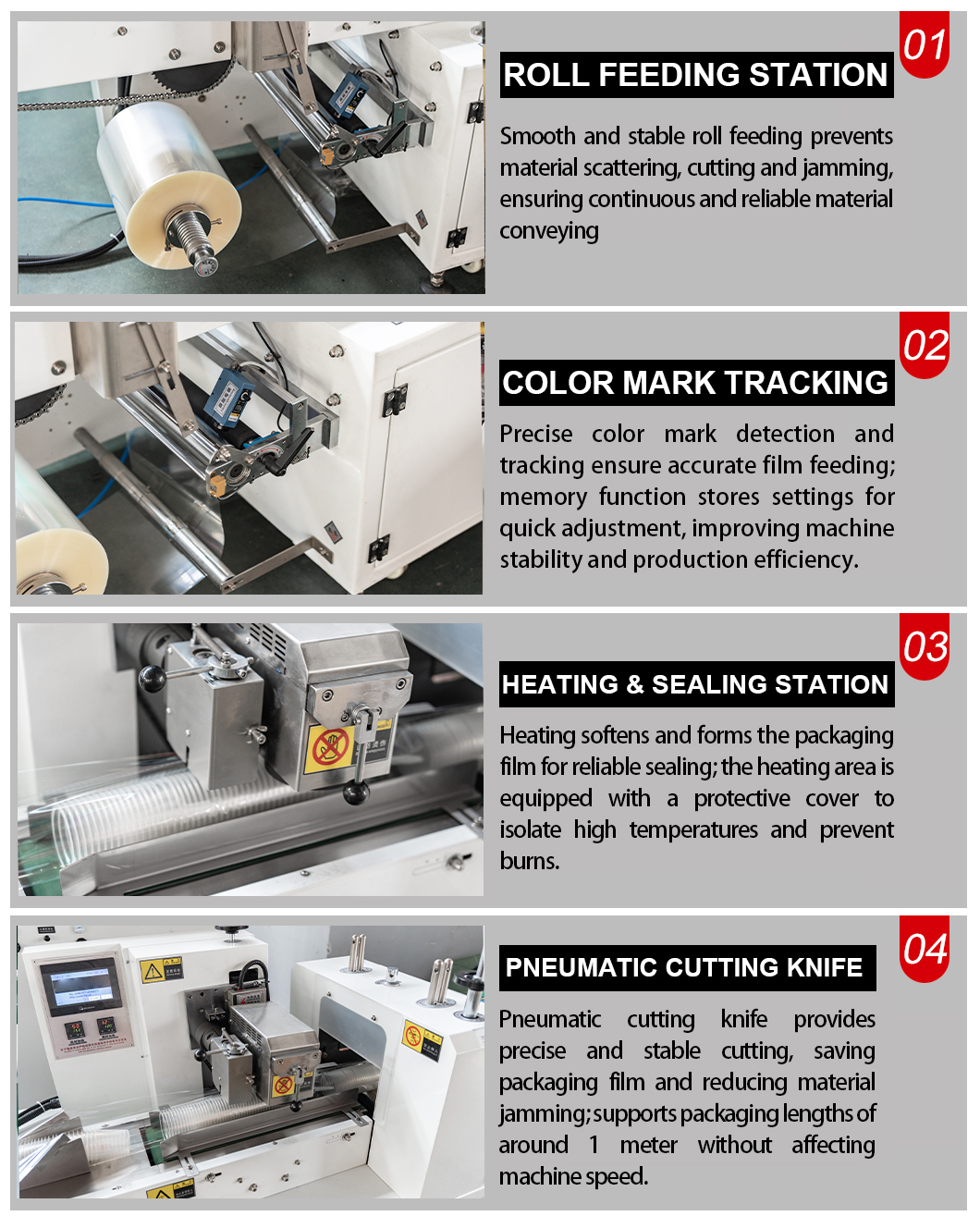

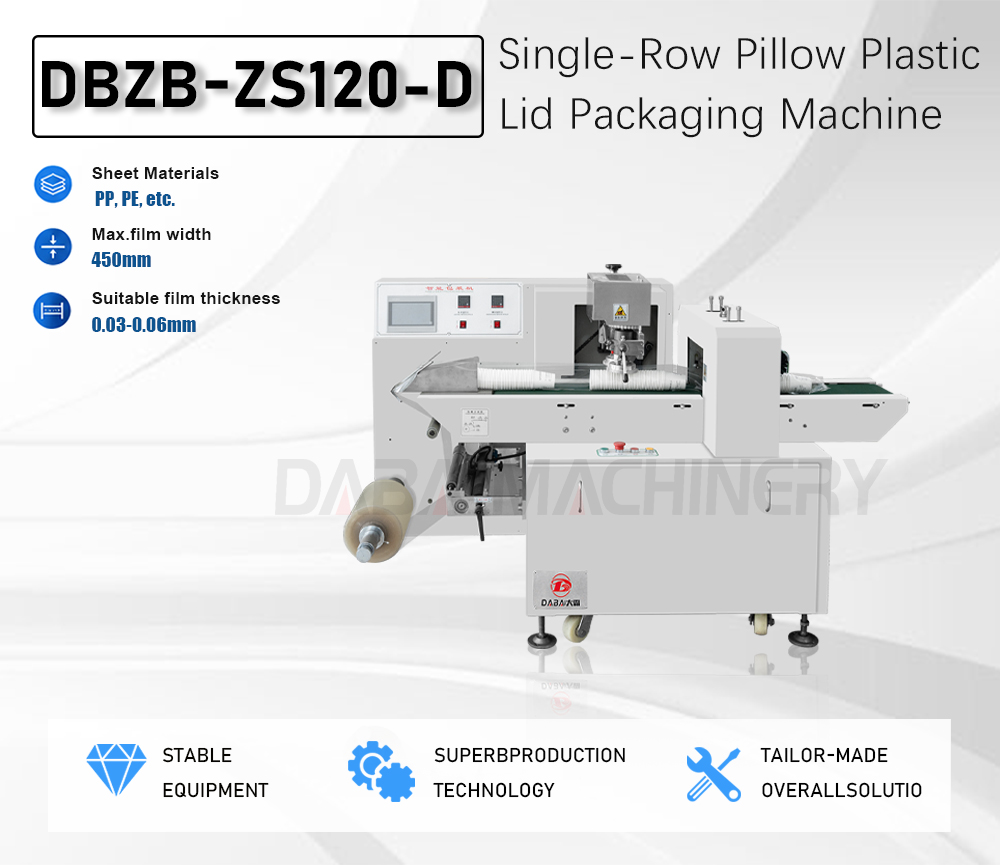

DBZB-ZS120-D Single-Row Pillow Plastic Lid Packaging Machine is designed for efficient and reliable packaging of plastic lids and other regular solid products. Featuring dual frequency converter control, photoelectric color-mark tracking, independent PID temperature control, and a touch-screen interface, the machine provides accurate cutting, stable sealing, and convenient parameter adjustment. Its compact structure, self-diagnosis function, clean rotary system, and software-based control ensure easy operation, low material waste, reliable performance, and convenient maintenance.
