| Item | Parameter |
|---|---|
| Model | DBBG-S550 |
| Maximum Forming Area | 450 × 280 mm |
| Forming Depth | 50 mm |
| Supported Materials | PP, PVC, PET, PS, PLA, GPPS |
| Air Pressure | 0.9 MPa |
| Total Power | 40 kW |
| Production Speed | 12–20 times/min |
| Machine Weight | 3200 kg |
| Machine Dimensions (L×W×H) | 5300 × 1500 × 1900 mm |

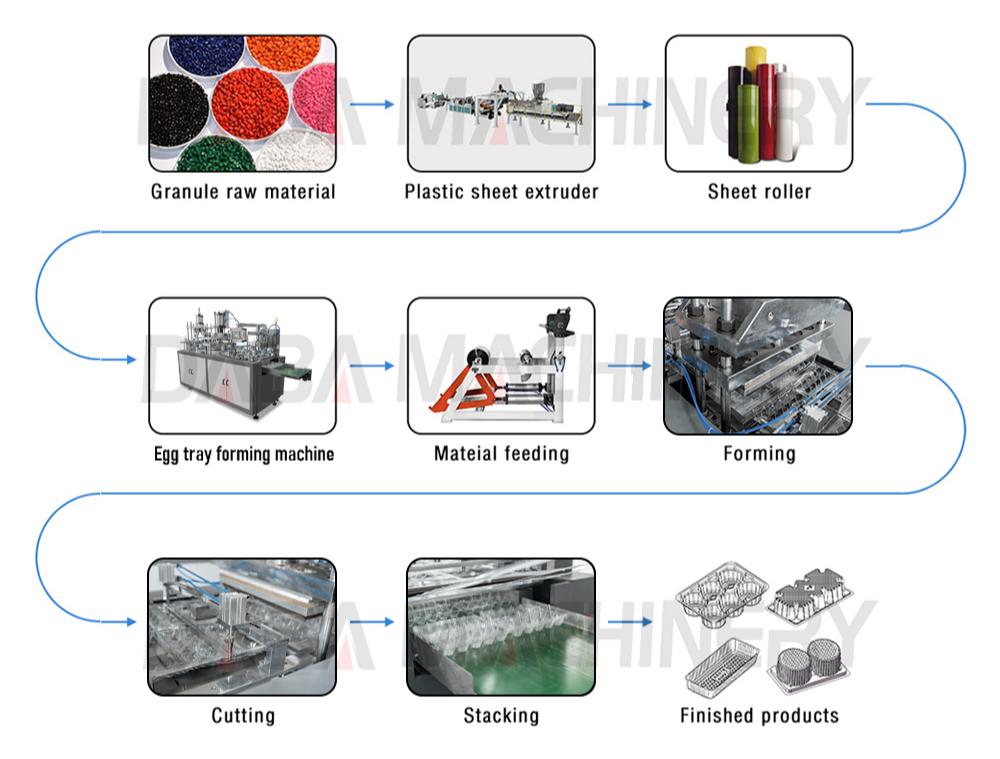

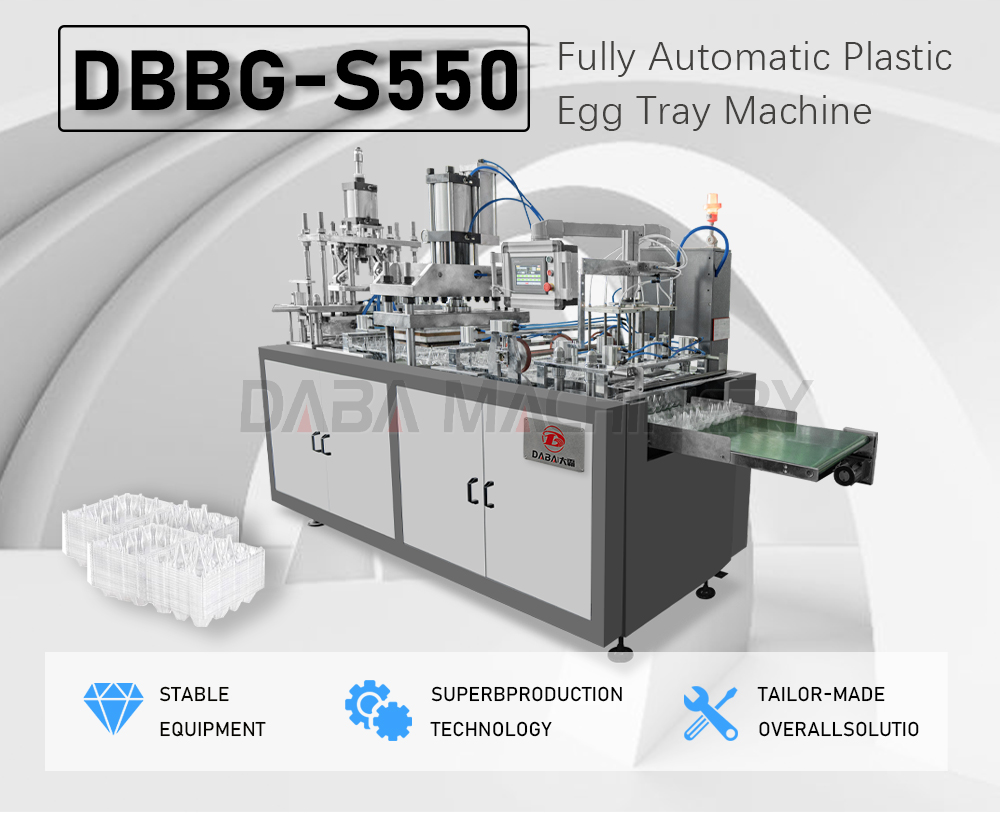

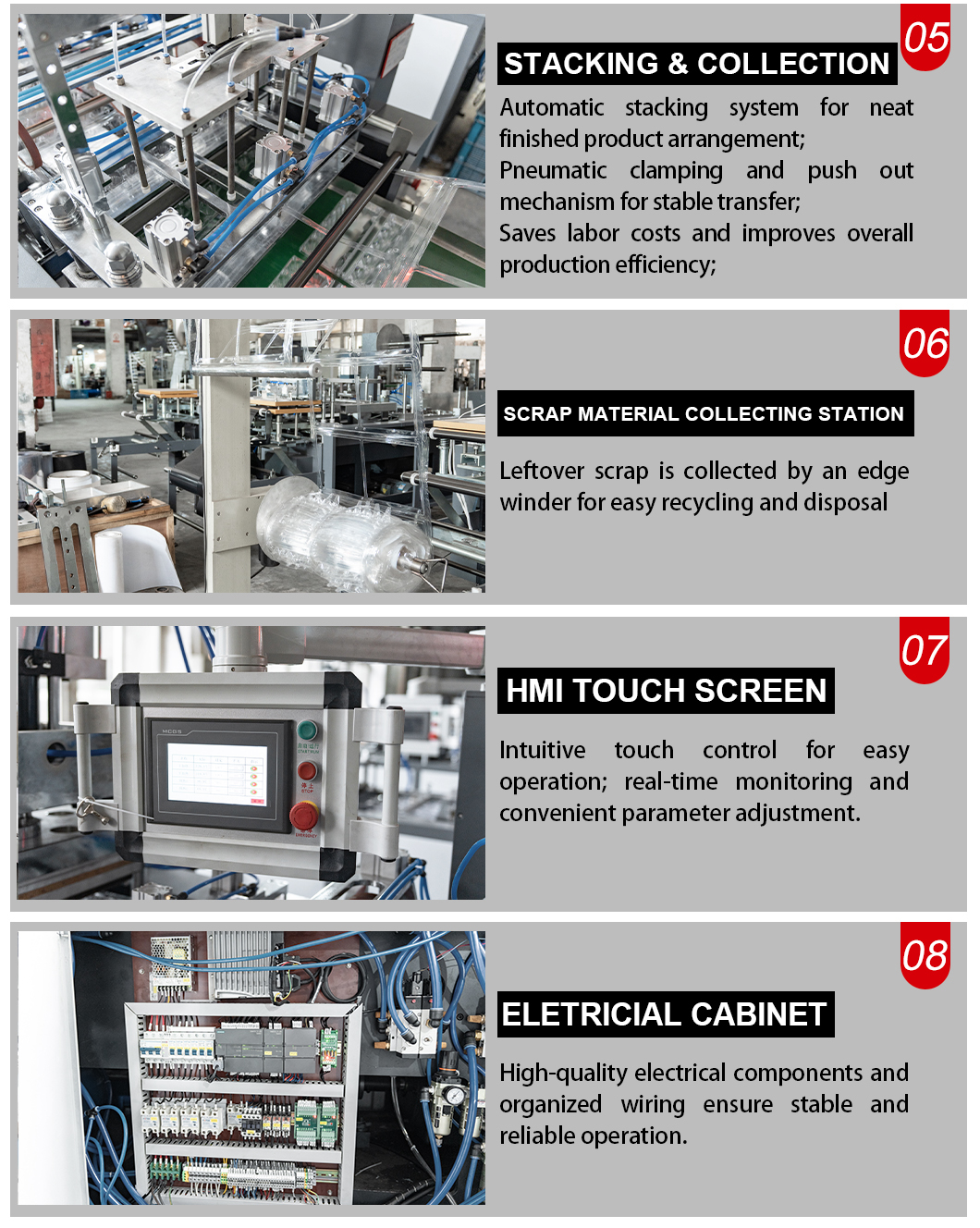

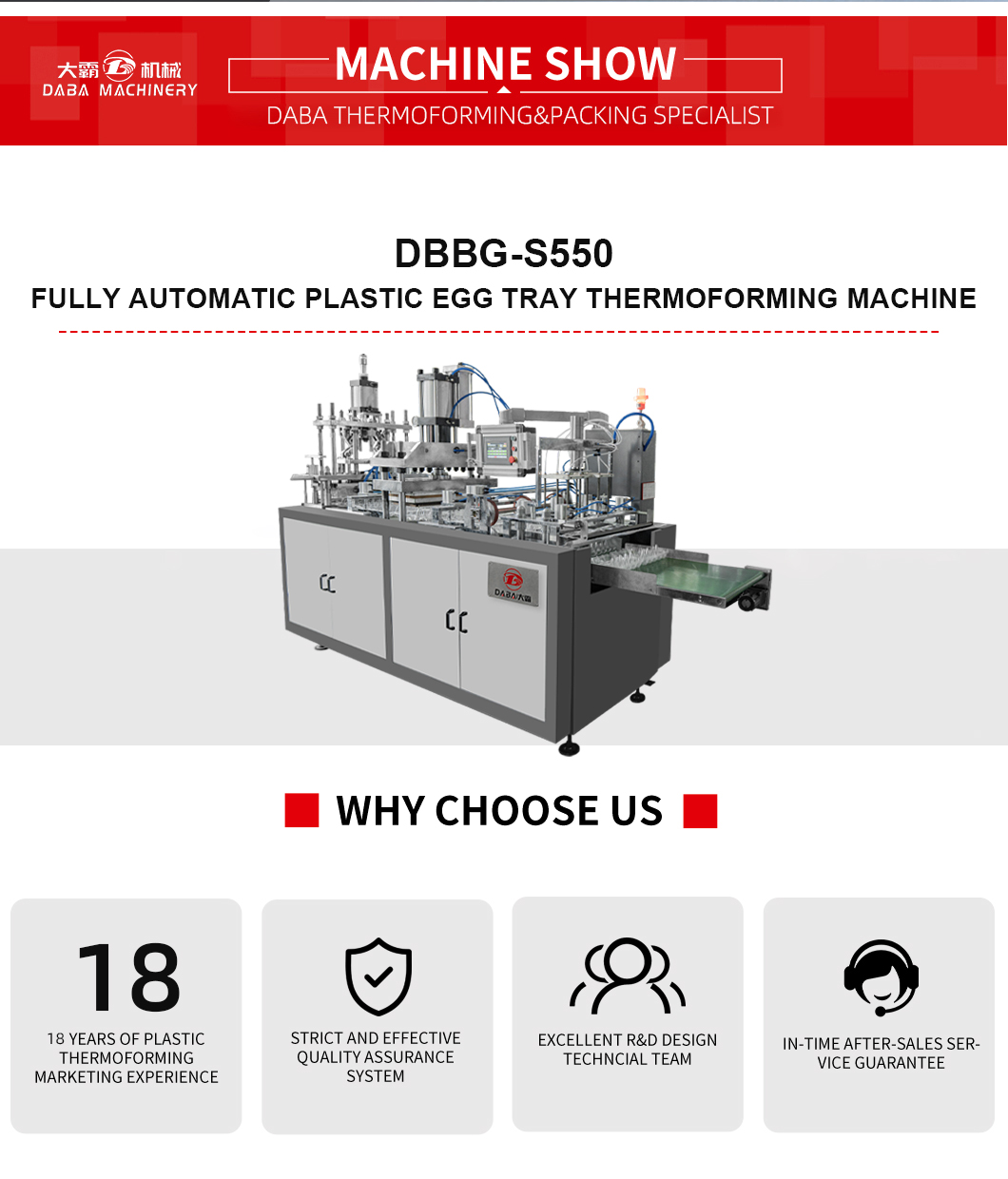

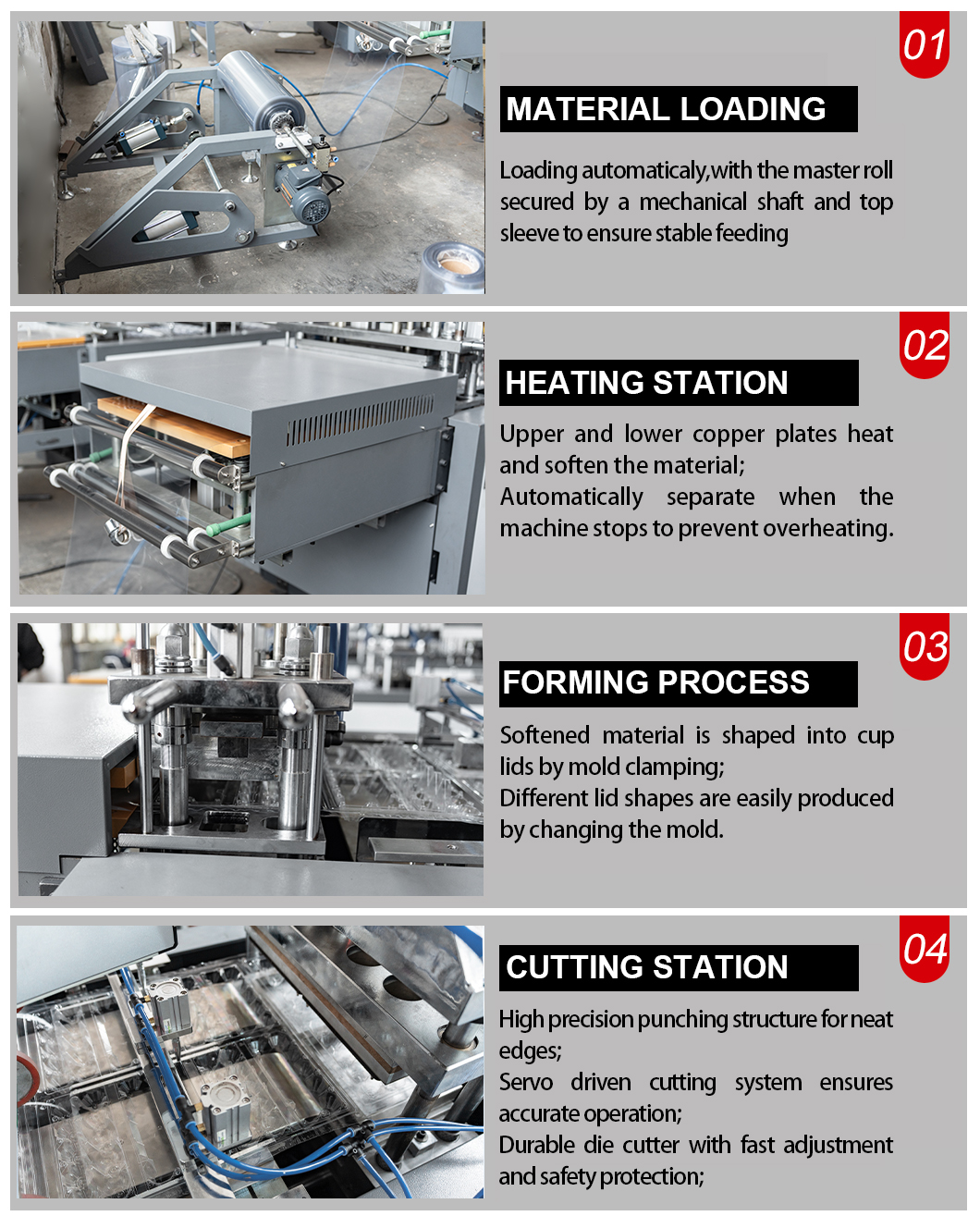

The DBBG-S550 Fully Automatic Plastic Egg Tray Thermoforming Machine is an upgraded thermoforming solution converted from a plastic cup lid production line by changing the mold system to manufacture plastic egg trays. It is suitable for materials such as PP, PET, HIPS and PS, and integrates sheet feeding, heating, forming, punching, stacking and waste rewinding into one continuous automatic process. With PLC control, servo traction, automatic stacking and stable mechanical transmission, the machine ensures high efficiency, consistent product quality, reduced labor cost and reliable long-term production for egg tray packaging.
