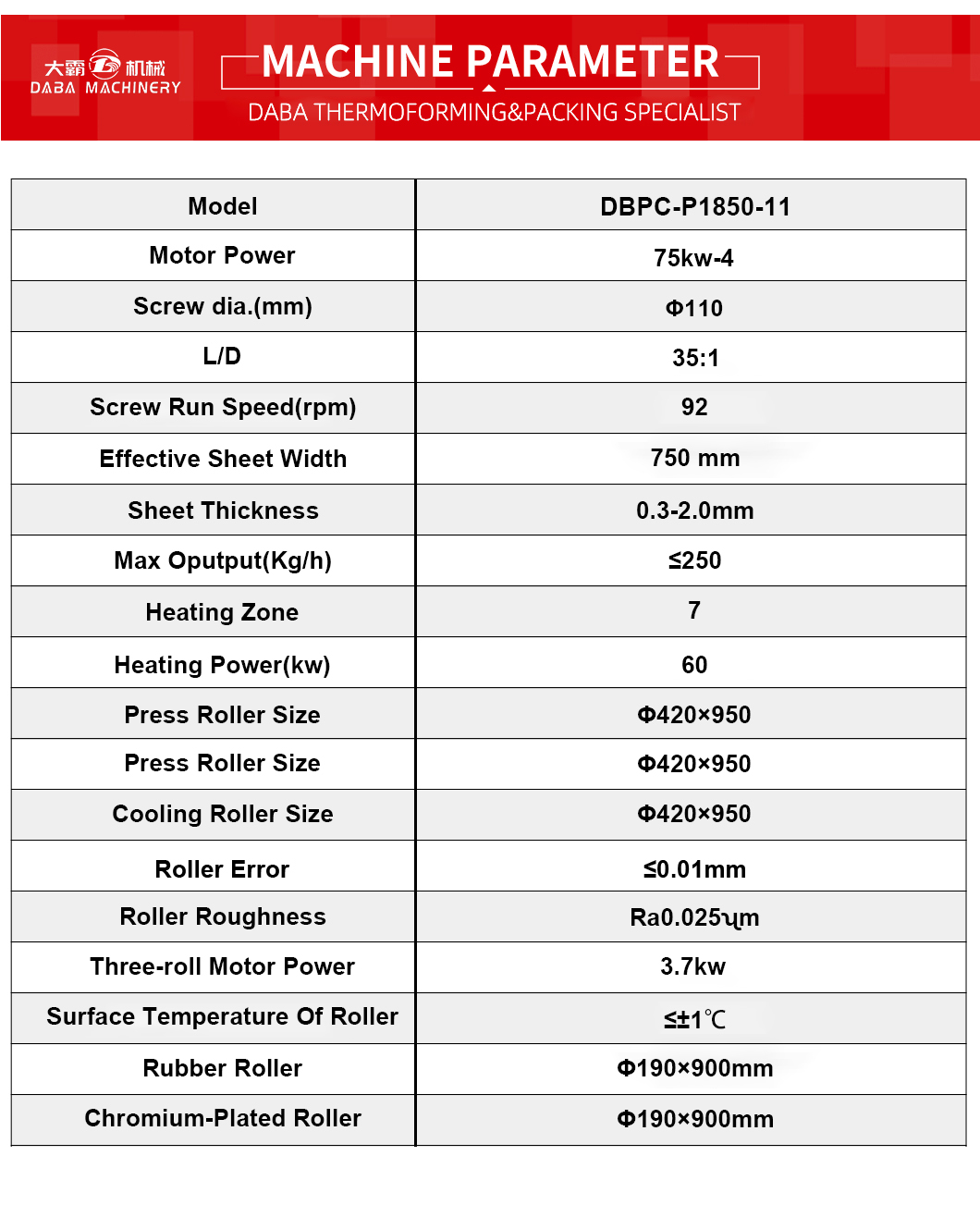

| Name | Parameter |
|---|---|
| Model | DBPC-P1850-11 |
| Motor Power | 75kW-4 |
| Screw Diameter | Φ110 mm |
| Screw L/D Ratio | 35:1 |
| Screw Max Speed | 92 rpm |
| Effective Sheet Width | 750 mm |
| Sheet Thickness | 0.3–2.0 mm |
| Max Output | ≤250 kg/h |
| Heating Zones | 7 |
| Heating Power | 60 kW |

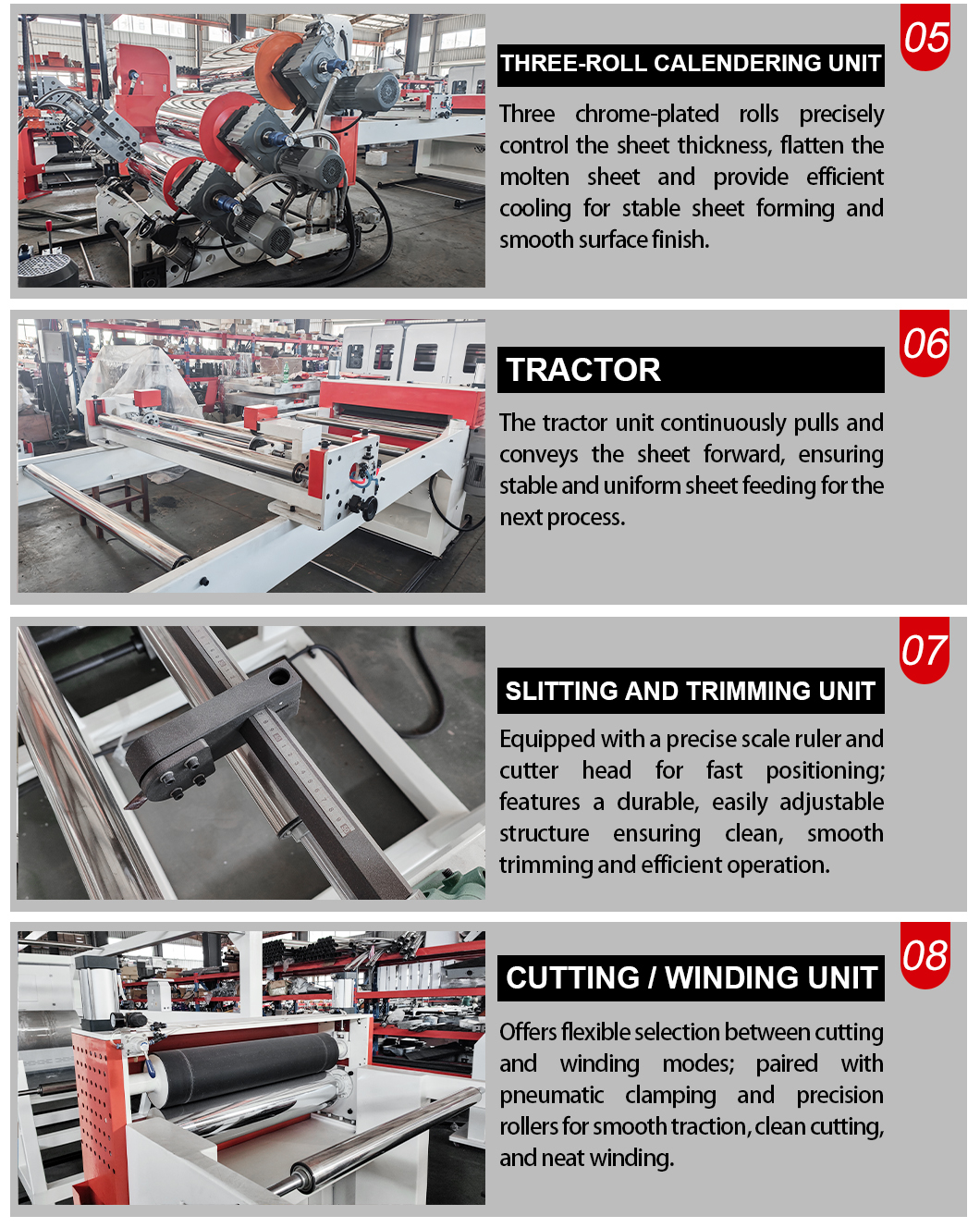

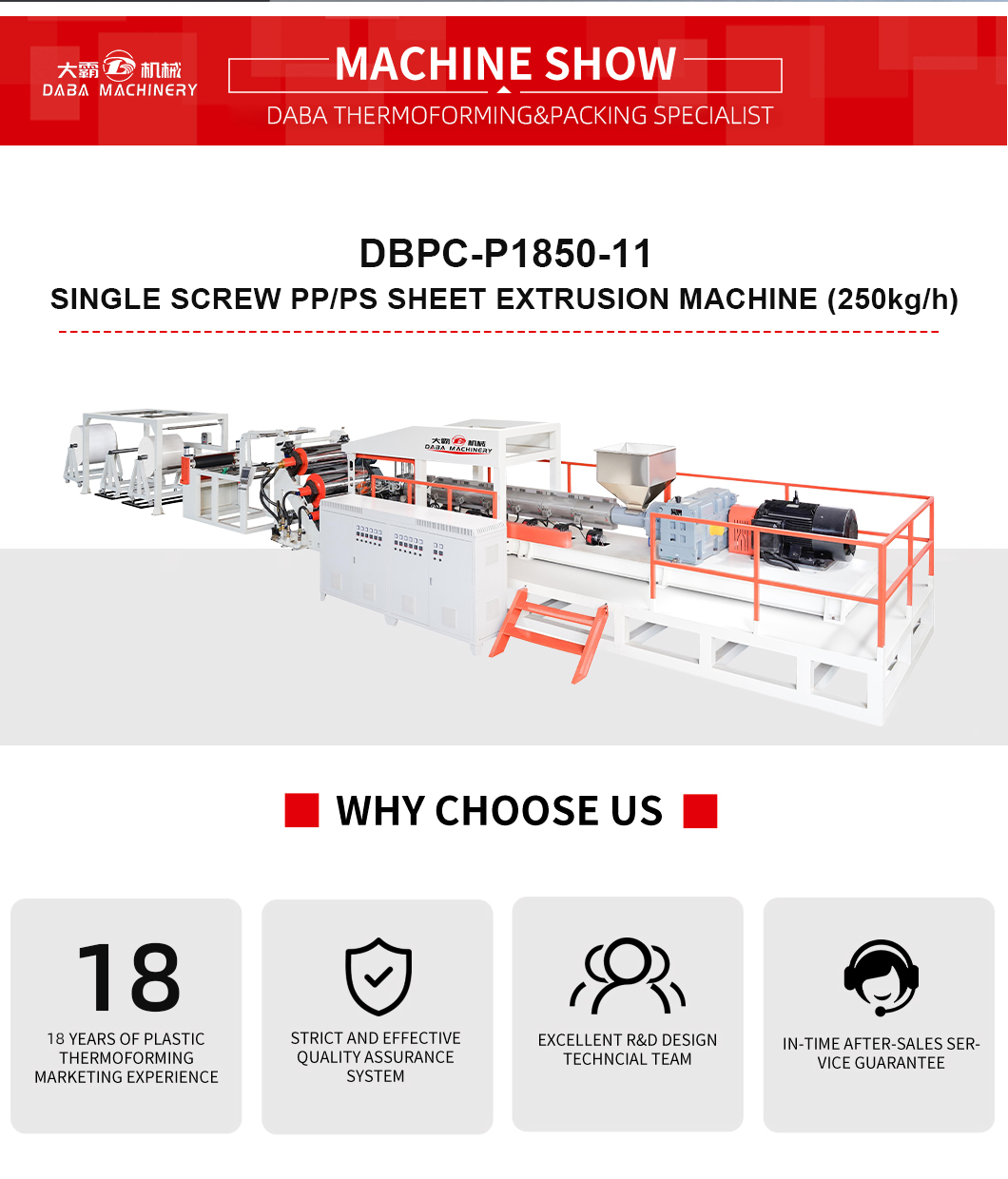

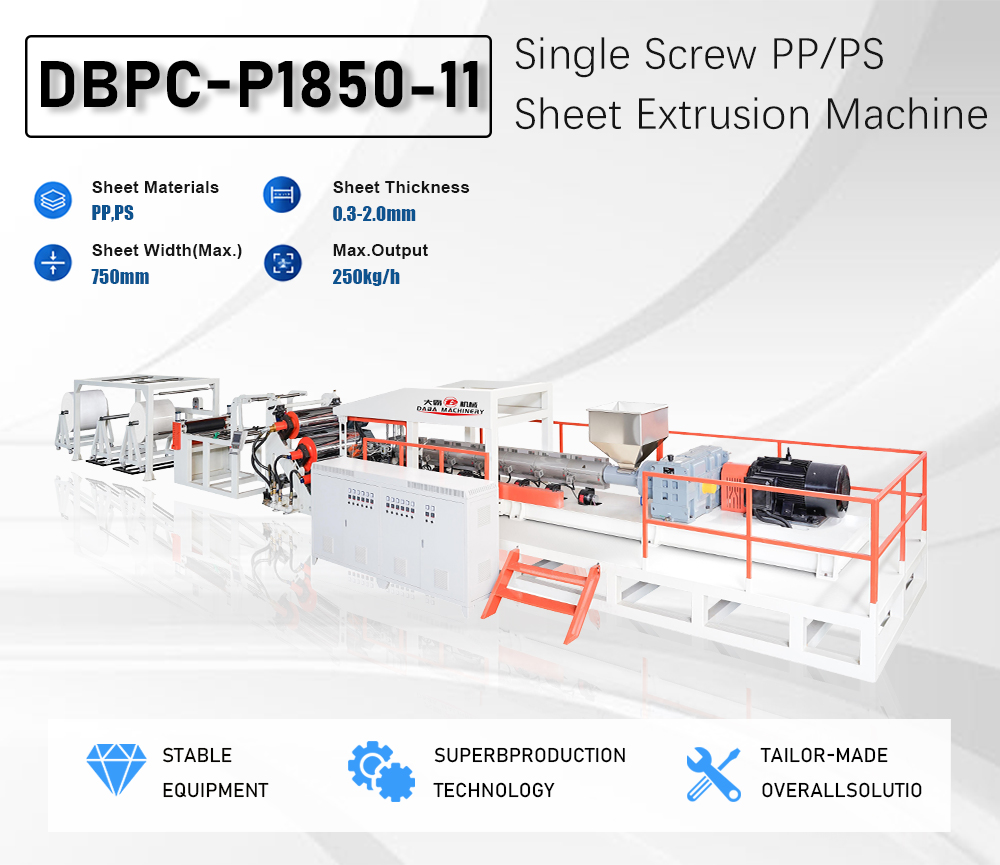

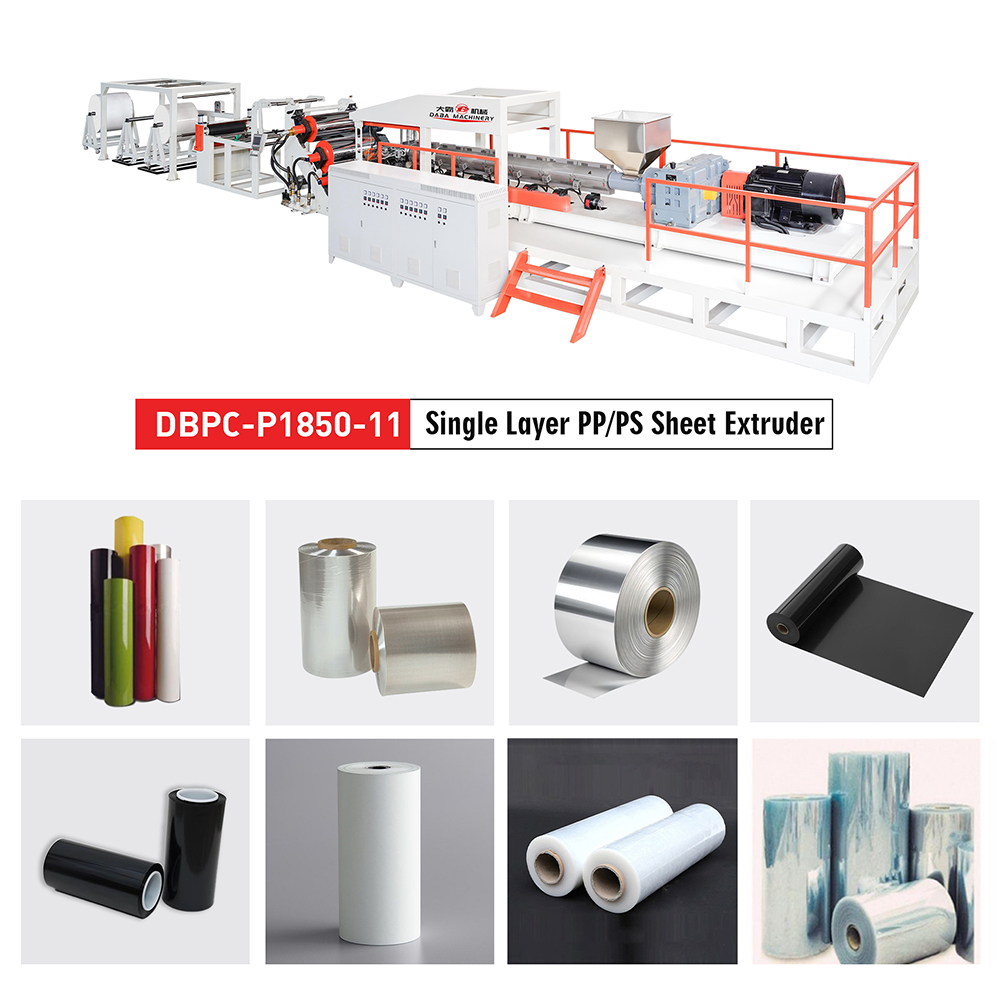

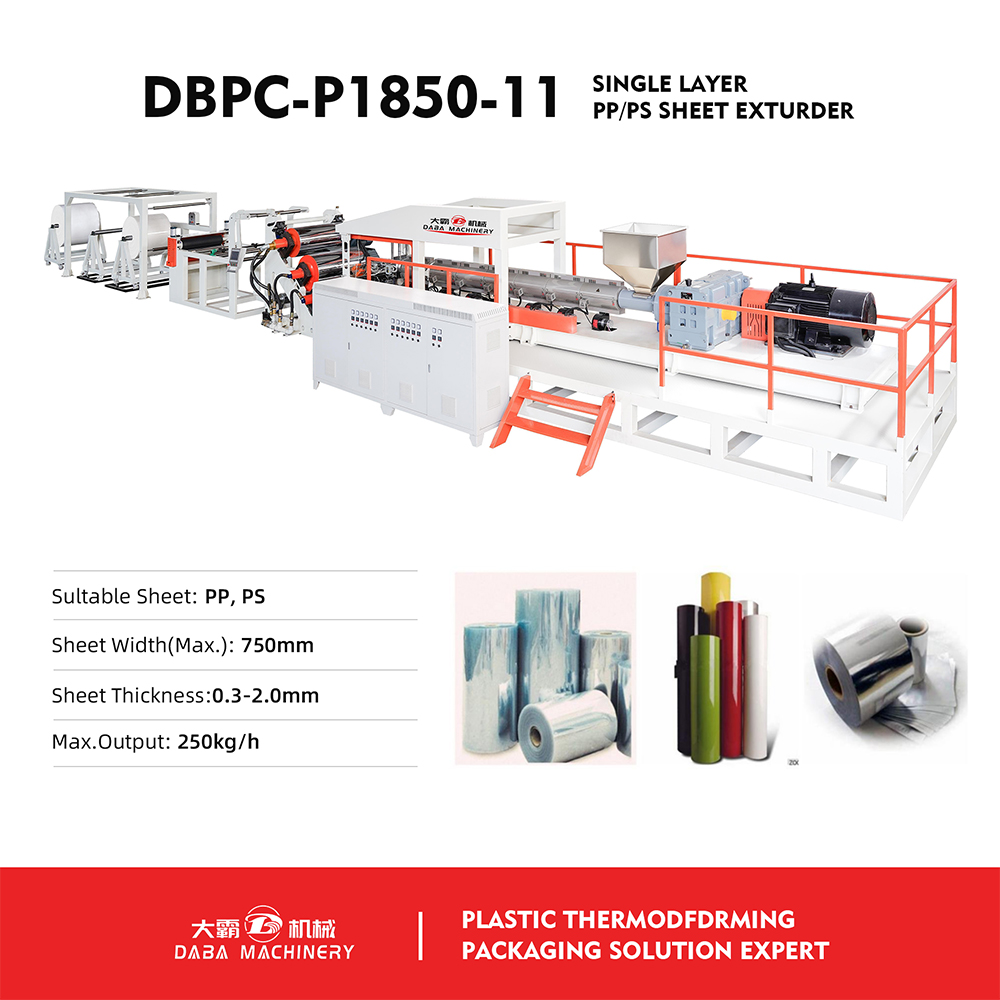

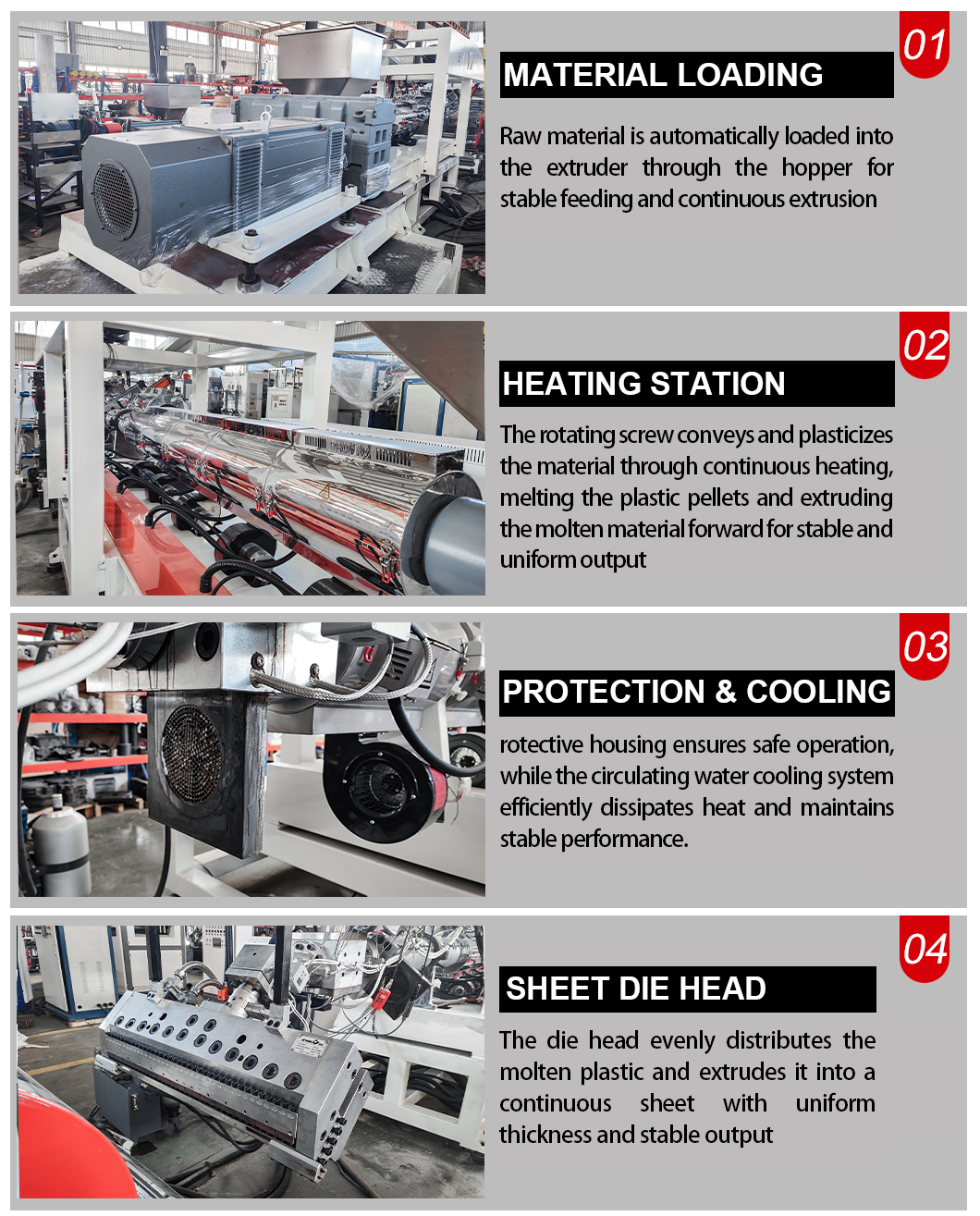

The DBPC-P1850-11 Single Screw PP/PS Sheet Extrusion Machine is designed for stable and efficient production of high-quality plastic sheets with a max output of up to 250 kg/h. Equipped with a 110 mm high-performance screw (L/D 35:1), hydraulic screen changer, precision T-die, and three-roller calendaring system, the machine ensures uniform thickness, smooth surface finish, and reliable continuous operation. With PLC centralized control, inverter speed regulation, and robust industrial structure, it provides high efficiency, easy operation, and long-term production stability for sheet extrusion applications.
