| Item | Specification |
|---|---|
| Suitable Material | PP / PS / PET / HIPS / PLA |
| Mold Size | 750 × 420 mm |
| Forming Area | 700 × 350 mm |
| Machine Travel | 220 mm |
| Production Speed | 15 – 30 cycles/min |
| Total Power | ≤ 140 kW |
| Machine Weight | Approx. 6.5 Ton |
| Machine Dimensions (L × W × H) | 4500 × 1600 × 2500 mm |

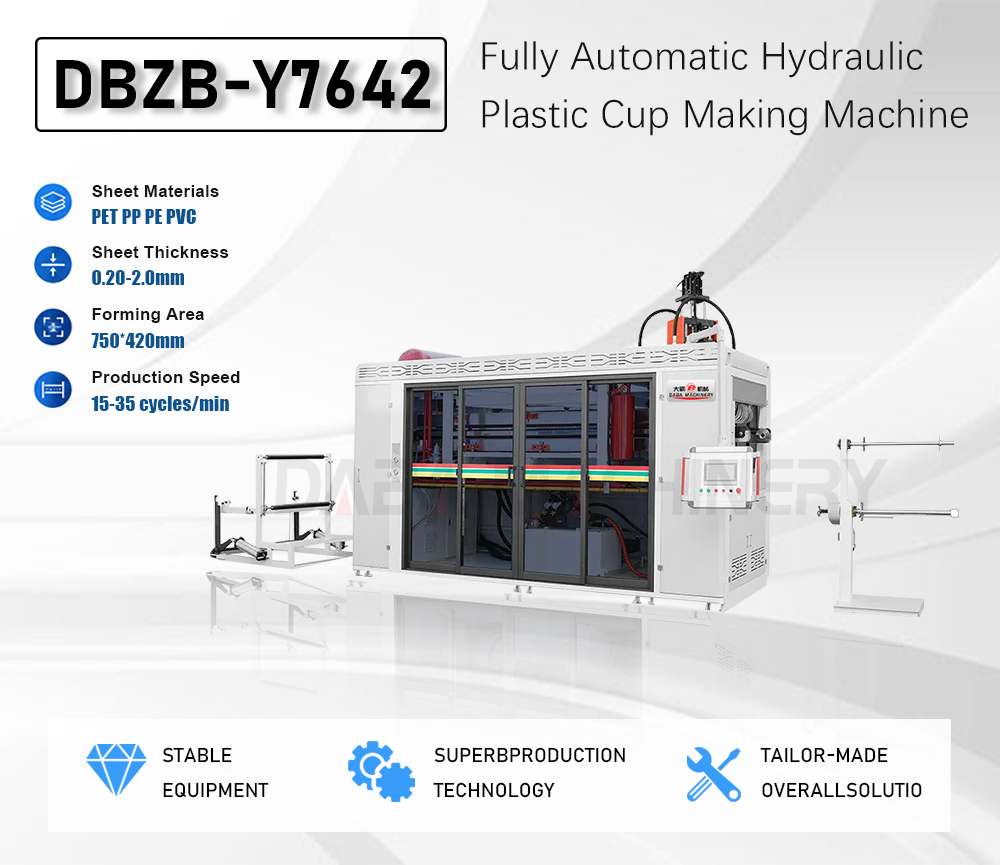

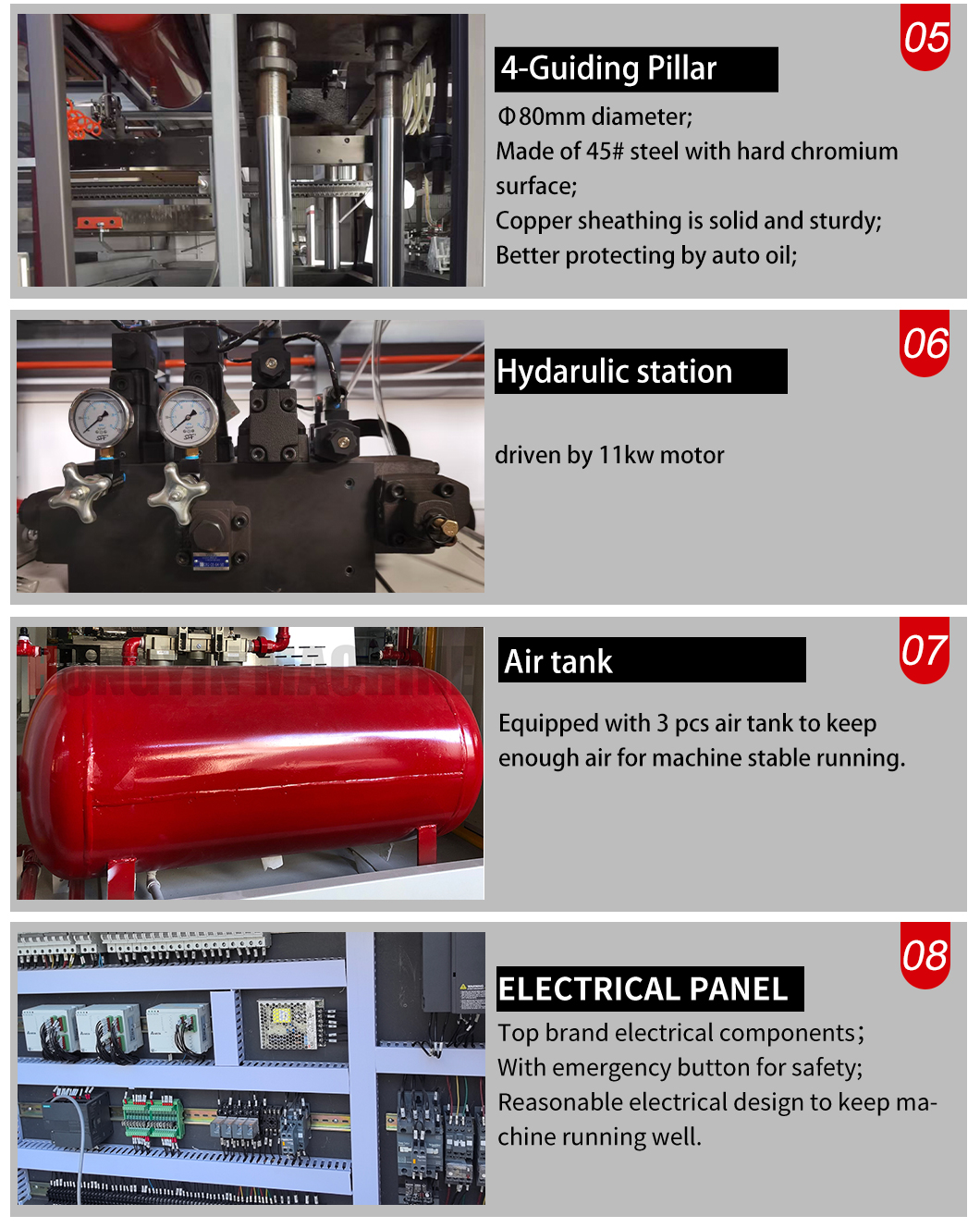

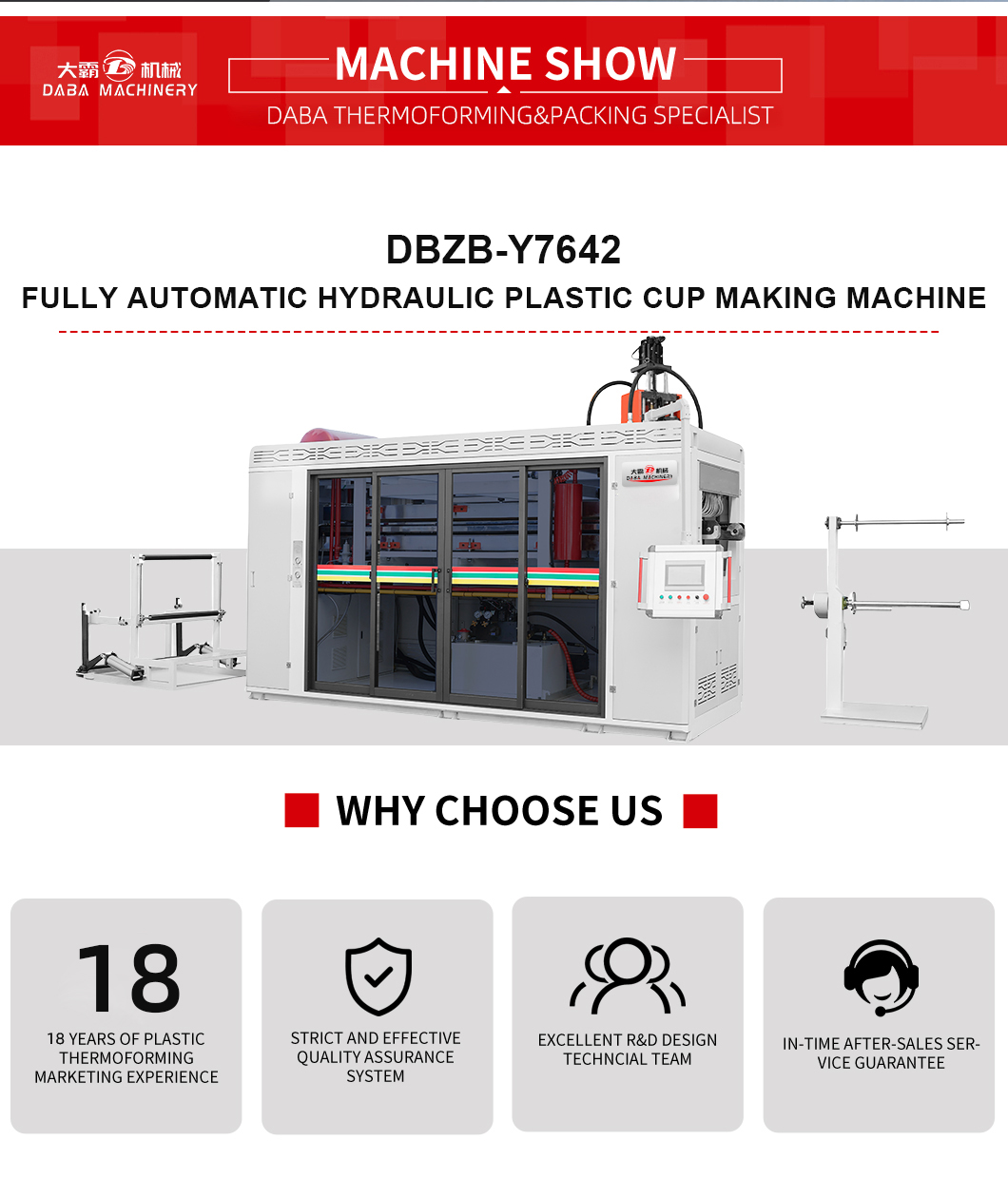

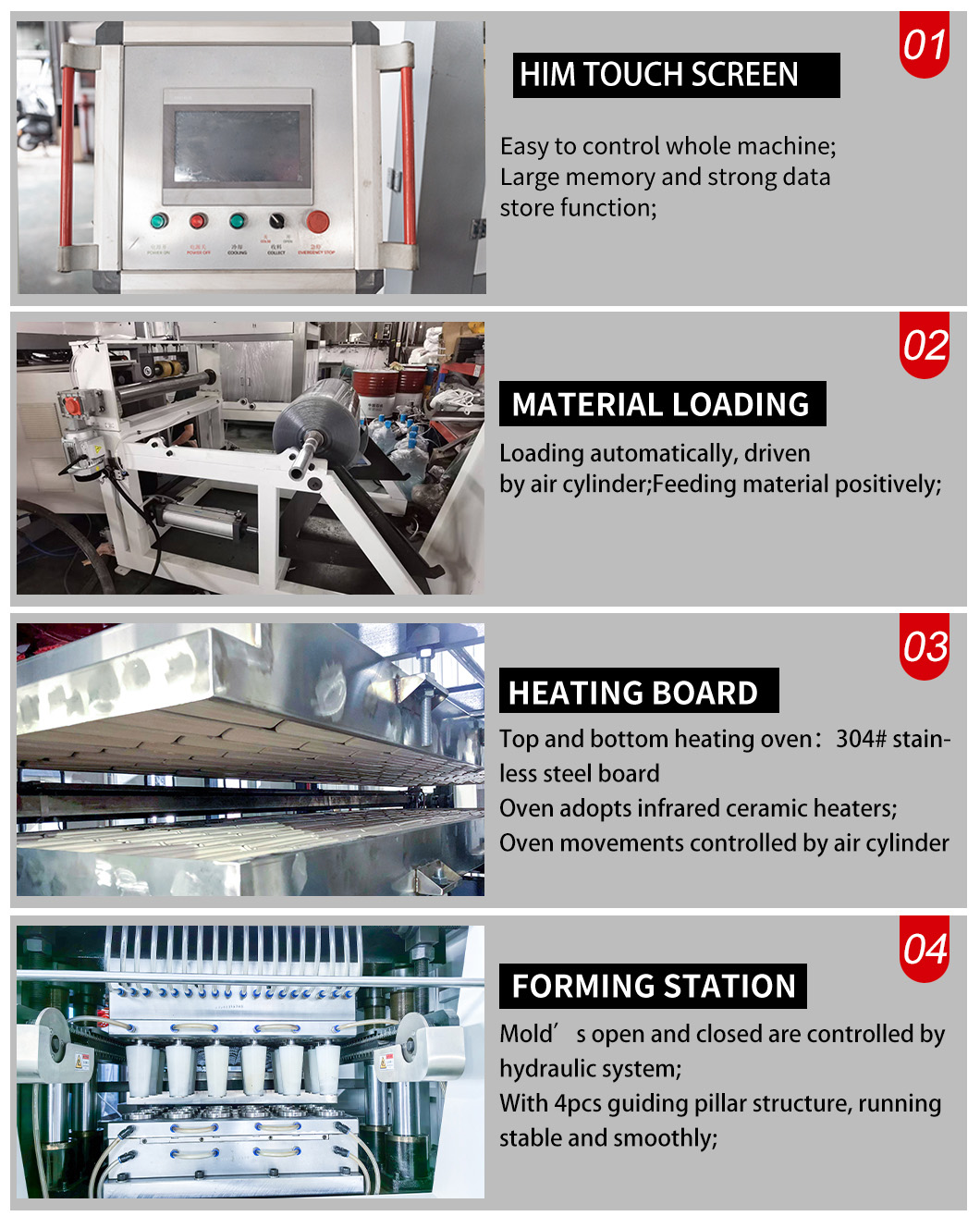

The DBZB-Y7642 Fully Automatic Hydraulic Plastic Cup Making Machine is built with a heavy-duty steel frame and full steel base to ensure excellent stability during high-speed operation. It adopts a Taiwan Yuken hydraulic system for reliable mold opening and closing, combined with SMC pneumatic components for stable performance. The machine features inverter-controlled feeding, a pneumatic stretching system (optional Yaskawa servo), automatic lubrication, and a multi-zone ceramic infrared heating system for uniform temperature control. With its robust mold-clamping structure and precision guide pillars, the DBZB-Y7642 delivers stable operation and high-efficiency production for plastic cups.
