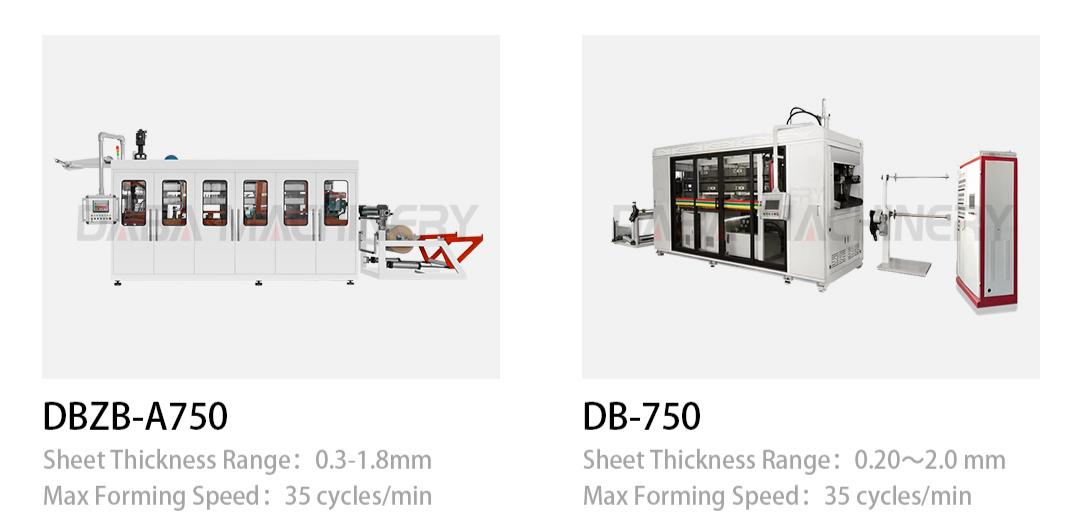

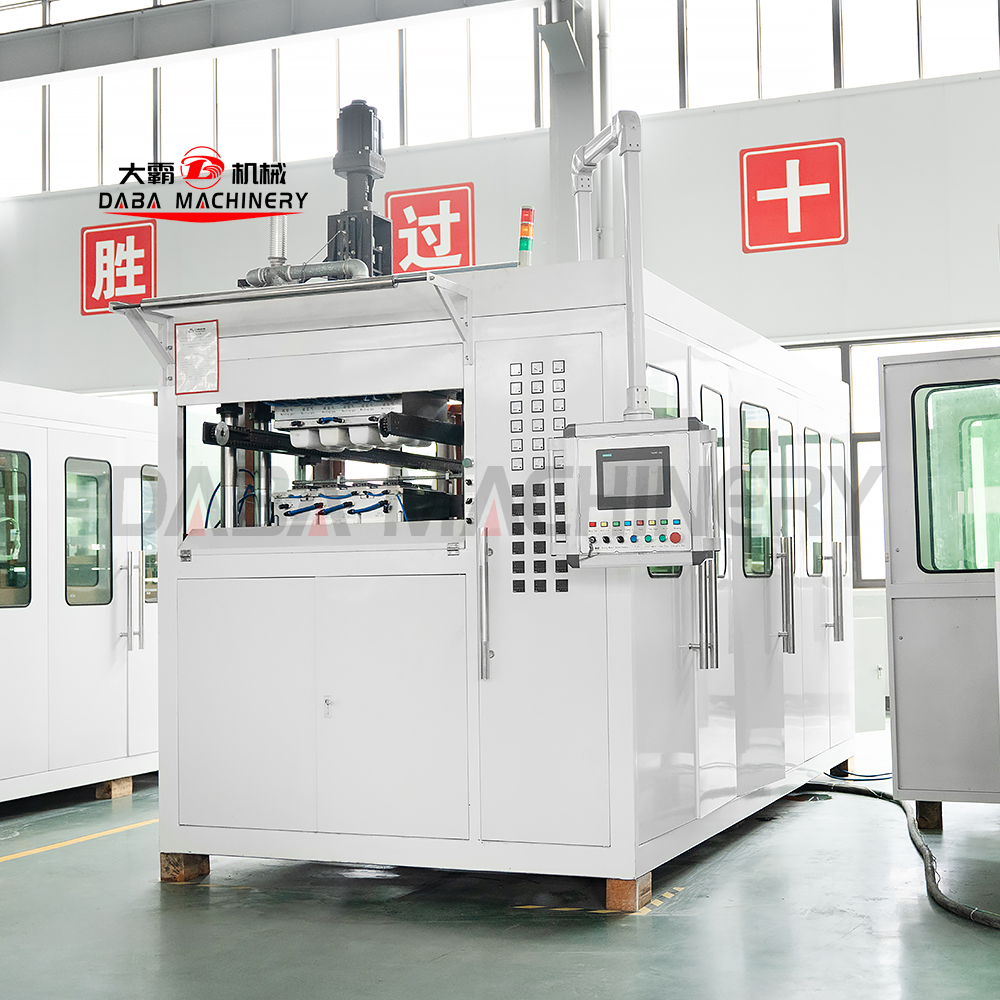

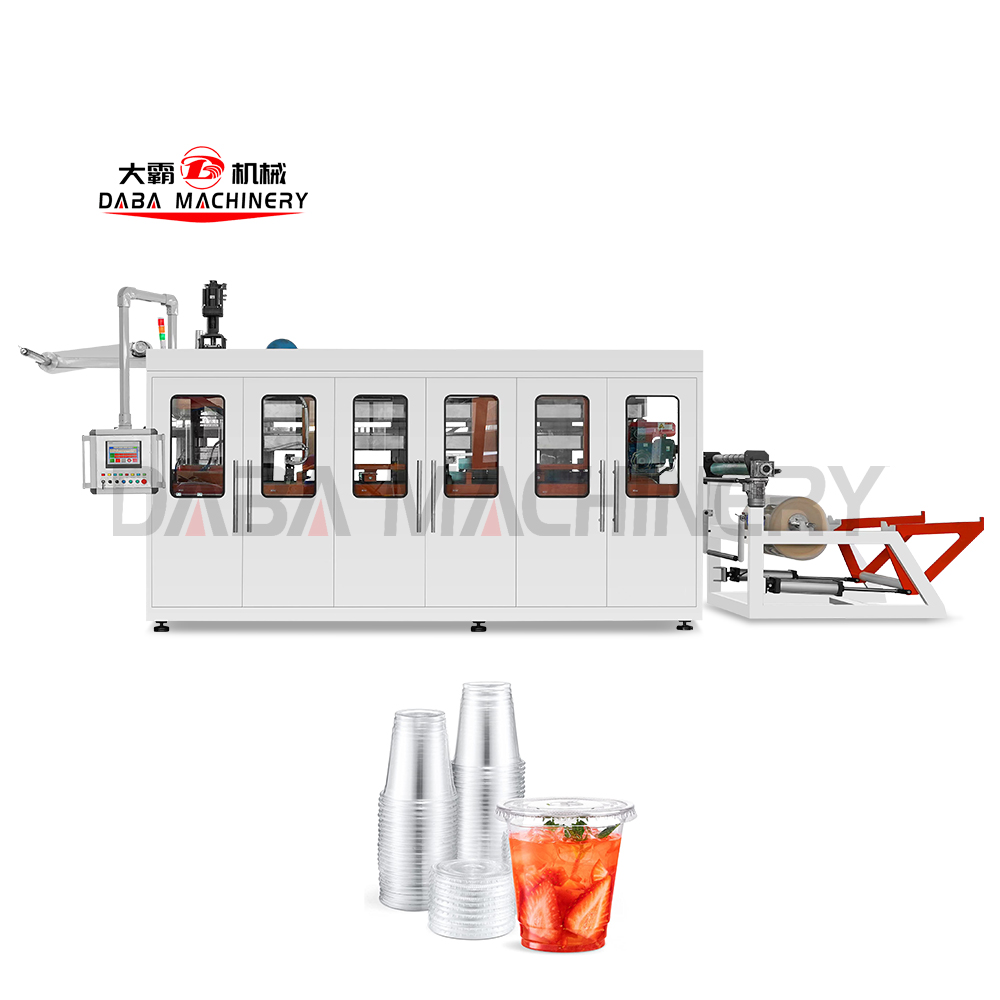

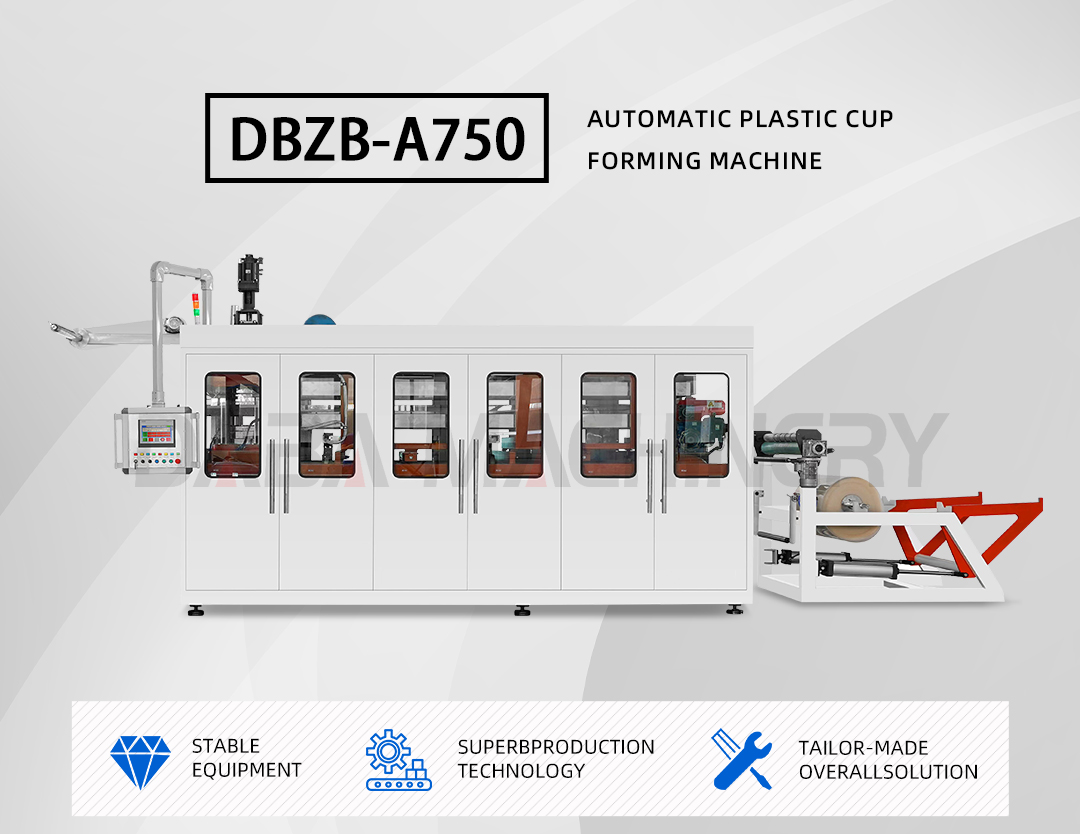

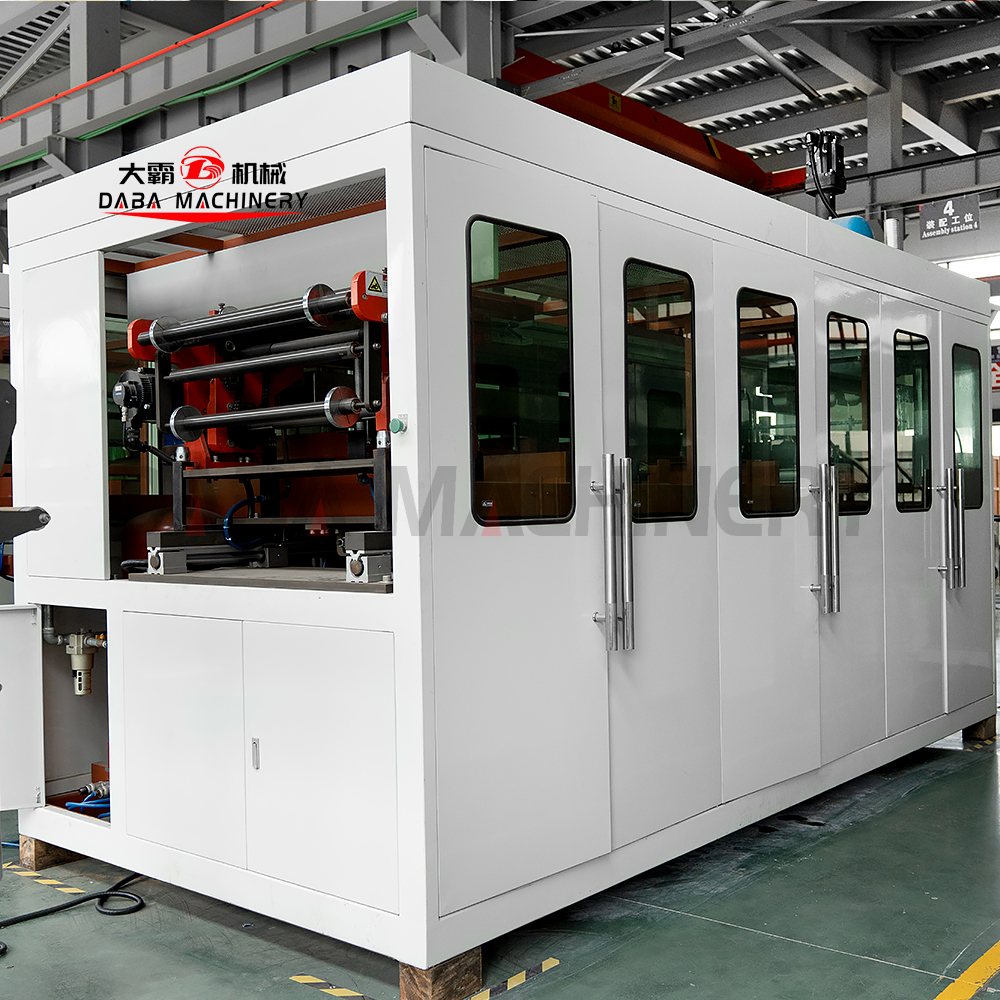

DB-A750 Full Servo Plastic Cup Making Machine
| Item | Specification |
|---|---|
| Model | DBZB-AS750 |
| Forming Area (L×W) | 750 × 480 mm |
| Max. Forming Depth | 180 mm |
| Max. Sheet Width | 760 mm |
| Suitable Sheet Thickness | 0.3 – 1.8 mm |
| Max. Forming Speed | 30 cycles/min |
| Air Pressure | 0.6 – 0.8 MPa |
| Air Consumption | 3 m³/min |
| Water Consumption | 0.7 m³/hour |
| Applicable Materials | PP/ PS/ PET/ PVC/ HIPS/ PLA/ Corn Starch, etc. |
| Power Supply | 380V, 50Hz, 3 Phase, 4 Wire |
| Actual Power Consumption | 50 kW |
| Installed Power | 173 kW |
| Heating Power | 72 kW |
| Punching Force | 70 Ton |
| Machine Dimensions (L× W×H) | 9000 × 2300 × 3200 mm |
| Machine Weight | 8.2 Ton |
