| Item | Parameter |
|---|---|
| Model | DB-800-1 |

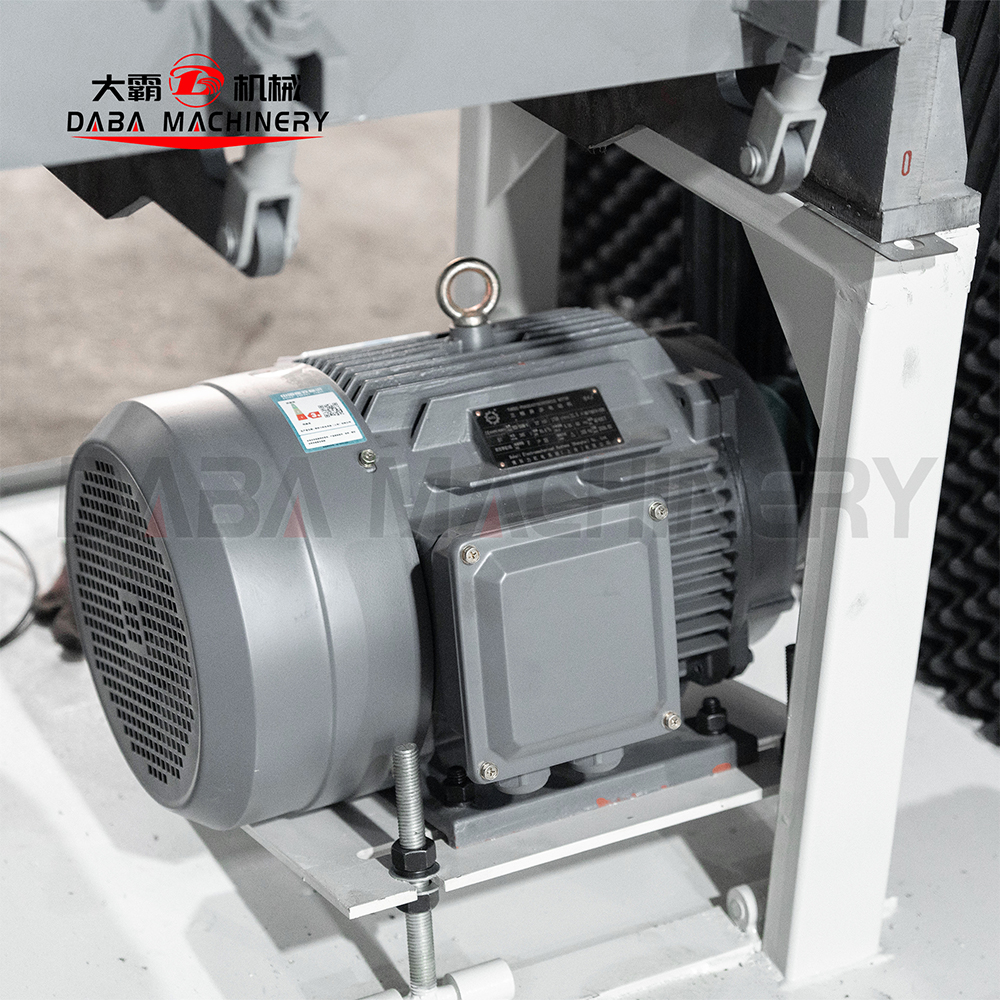

| Main Motor Power | 11 KW |
| Discharge Blower Power | 4 KW |
| Crushing Inlet Size | 840 × 85 mm |
| Rotary Blades | 24 pcs |
| Fixed Blades | 4 pcs |
| Blade Material | DC-53 |
| Screen Mesh Diameter | Ø11 mm (PET: 14 mm) |
| Machine Dimension | 1500 × 1300 × 1700 mm |
| Machine Weight | 1700 kg |

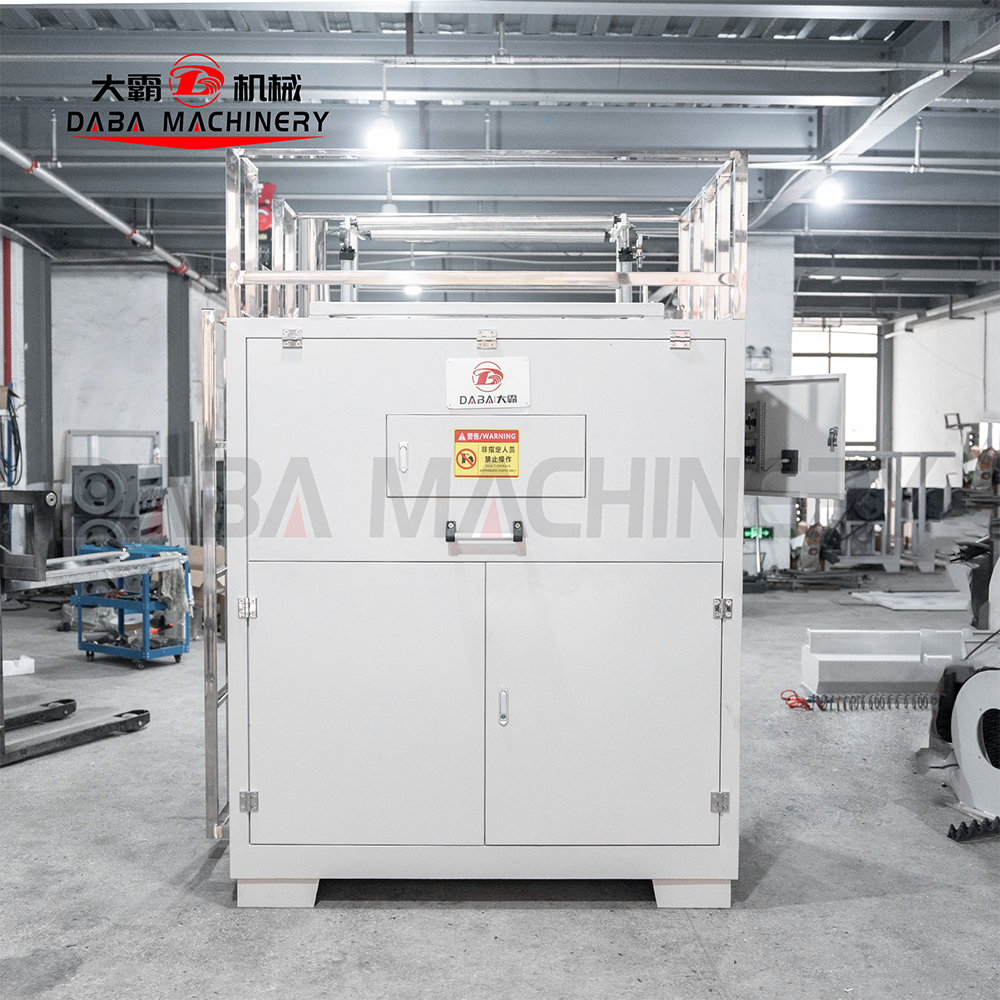

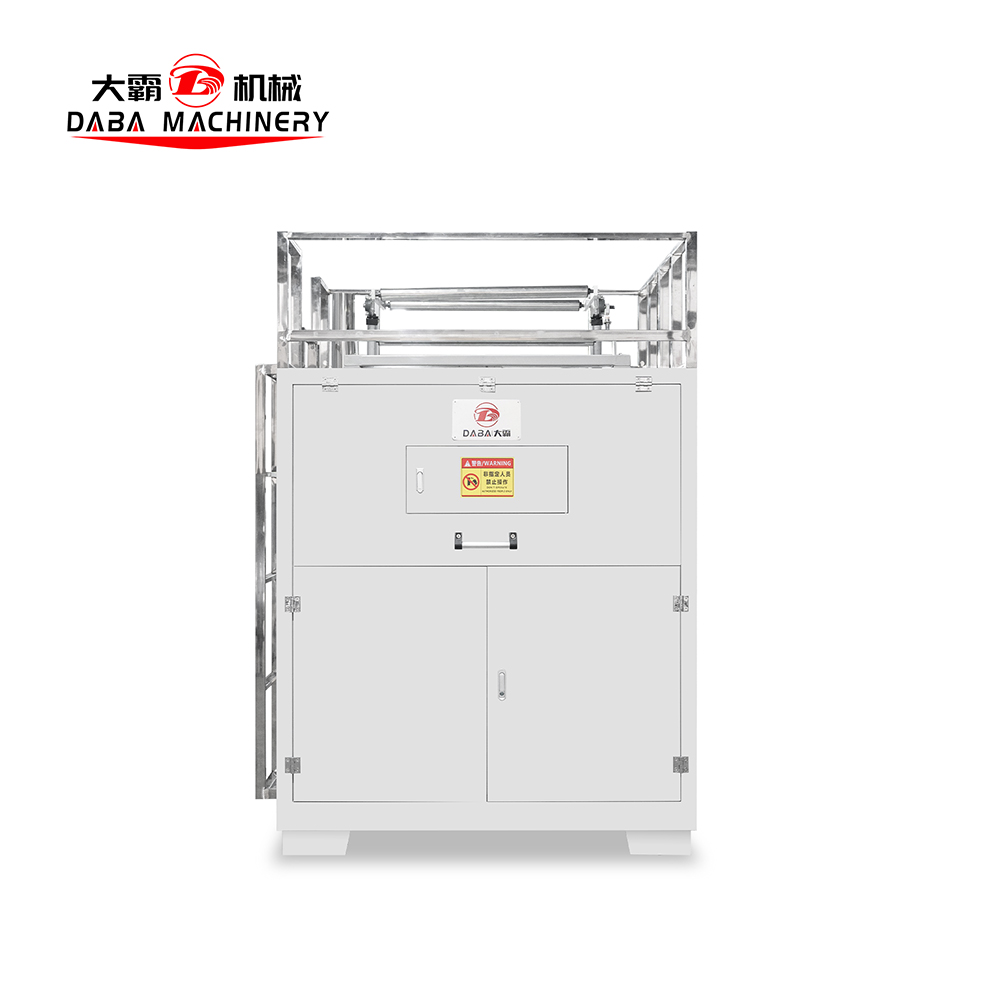

DB-800-1 Single-Station Plastic Crusher is an automated recycling solution designed to cut, shred, and grind plastic trims, edge waste, films, and defective formed products into reusable material. It enables real-time inline recycling and can be connected directly to production lines to form a complete waste recovery system, significantly reducing raw material loss and improving material utilization. This type of crusher is suitable for medium-soft to medium-rigid plastic sheets and trims, including PP, PE (HDPE/LDPE), PET, PS, PVC, and similar materials.

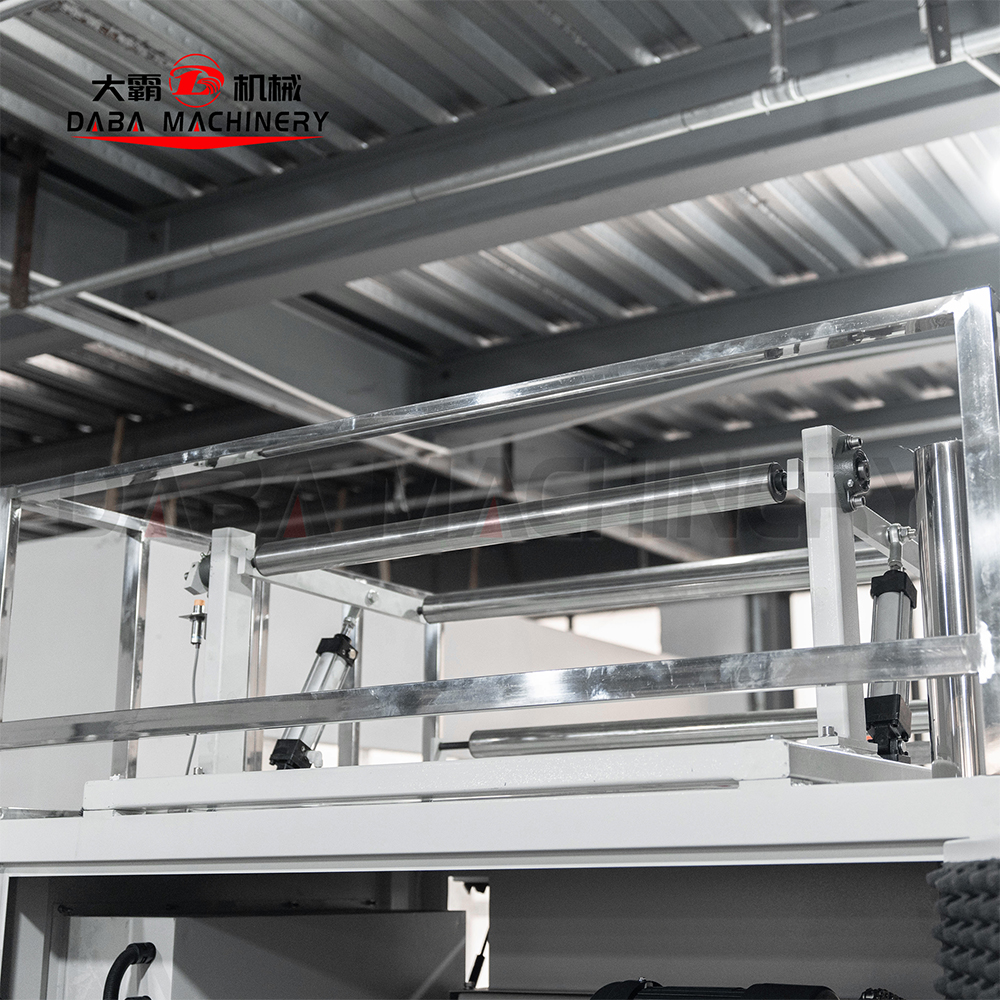

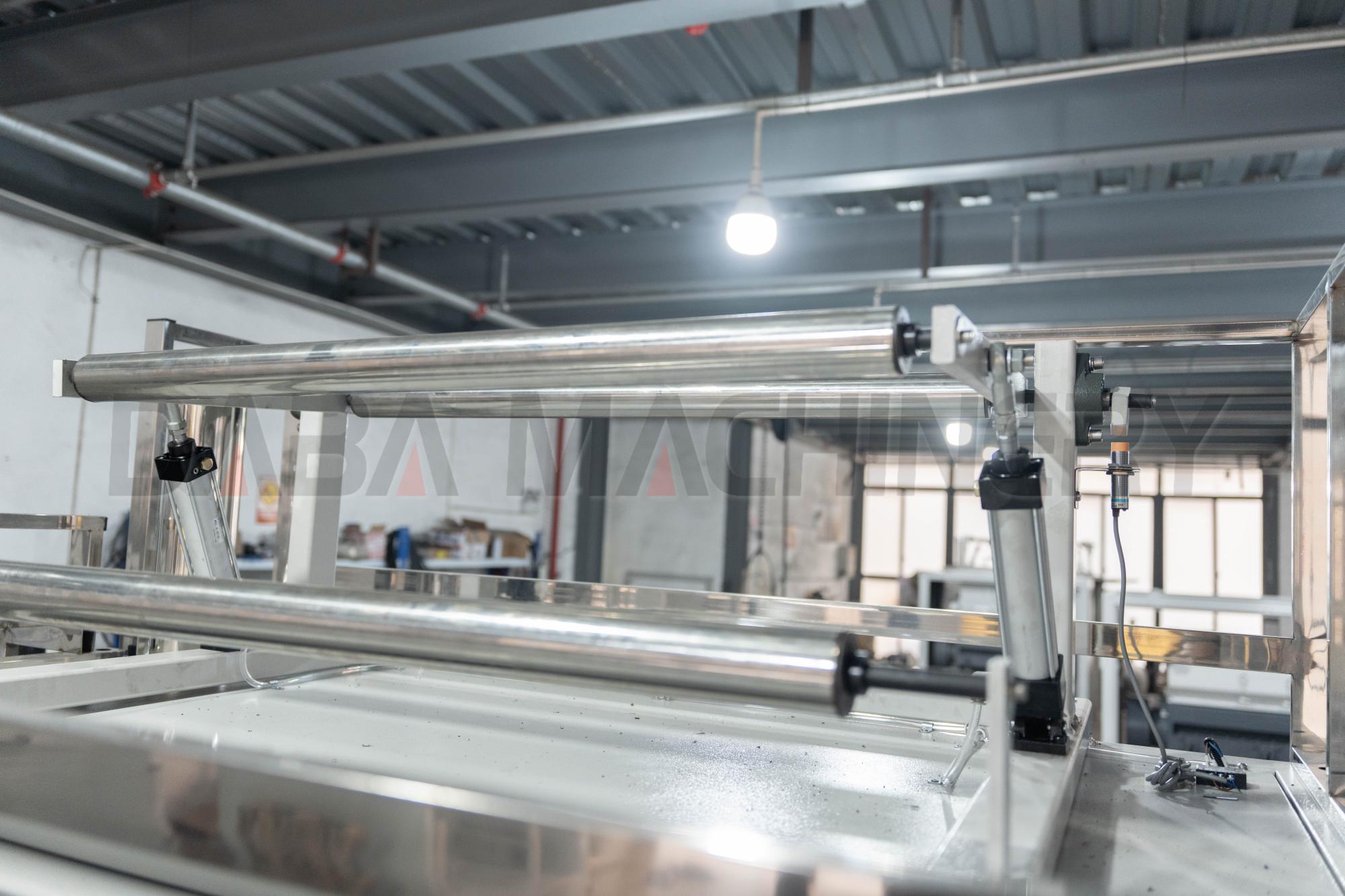

 | 1. Feeding System (Flipping Frame)When materials enter the machine, the flipping frame continuously turns to change the material orientation. Each section is equipped with a photoelectric sensor to monitor the material line speed in real time. | |

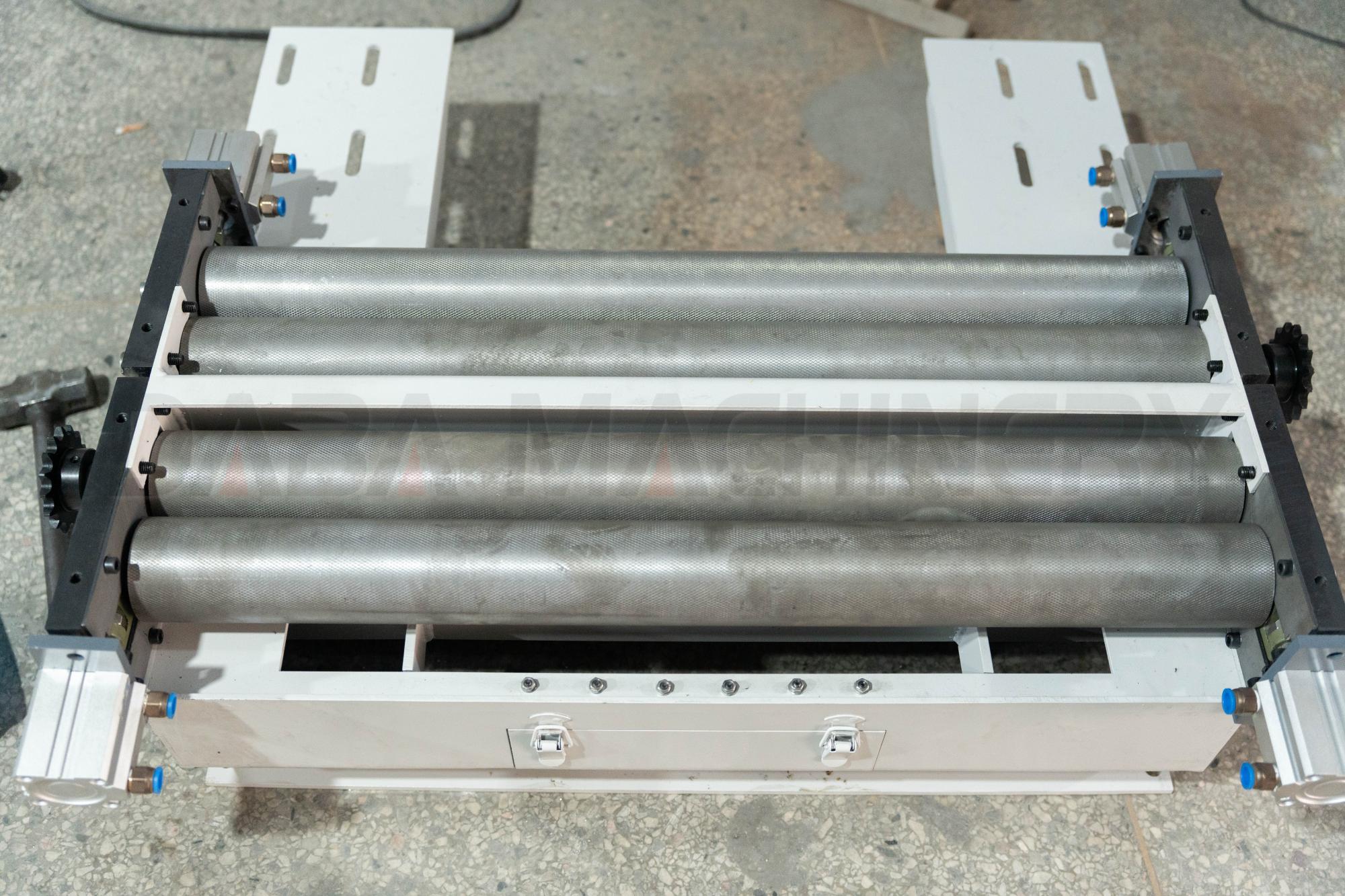

2. Traction UnitOne set rubber rollers provide stable traction, ensuring smooth and continuous feeding of materials into the crushing chamber. The image shows a dual-station traction roller. |  | |

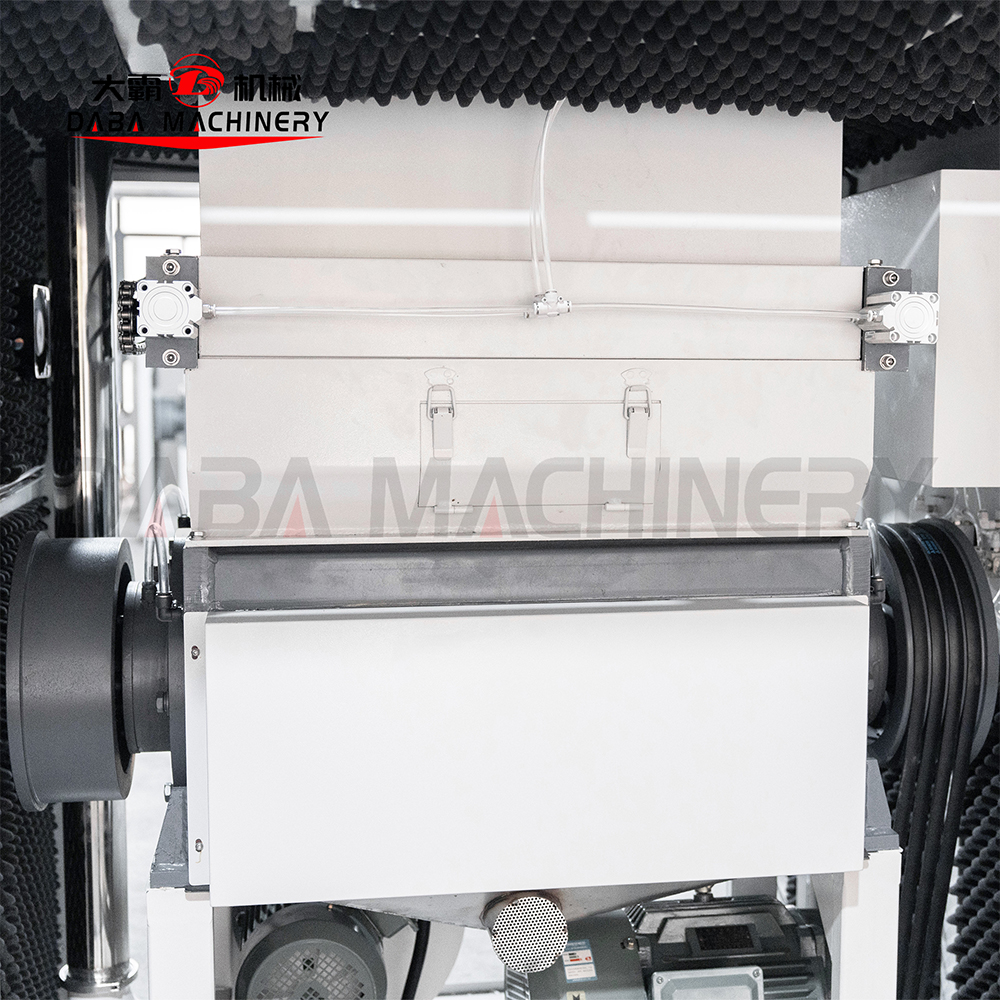

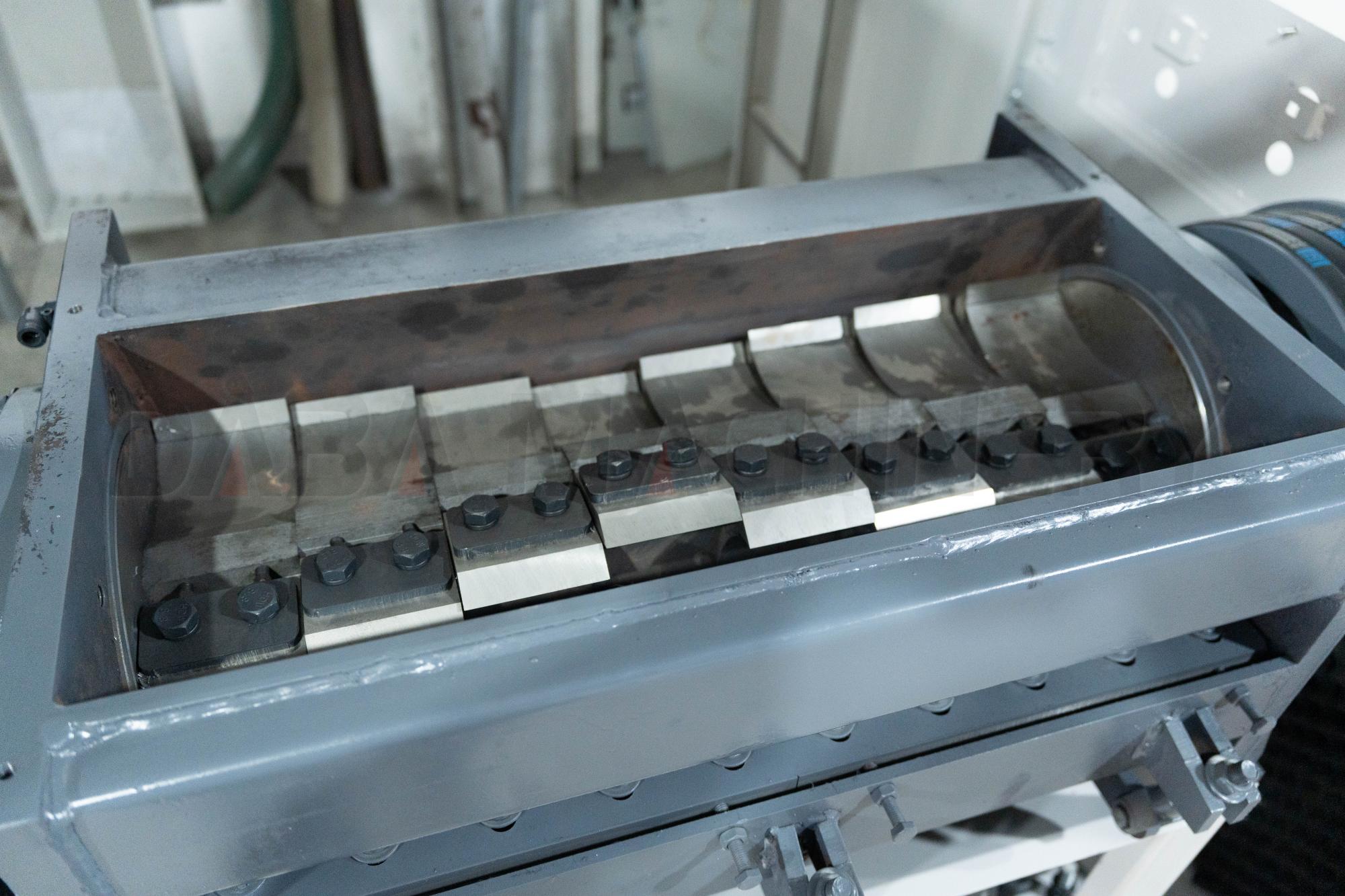

| 3. Crushing SystemThe crushing chamber adopts a staggered three-row block-type rotary knife design. The rotating knives efficiently shear, tear, and crush plastic materials for high-efficiency size reduction. | |

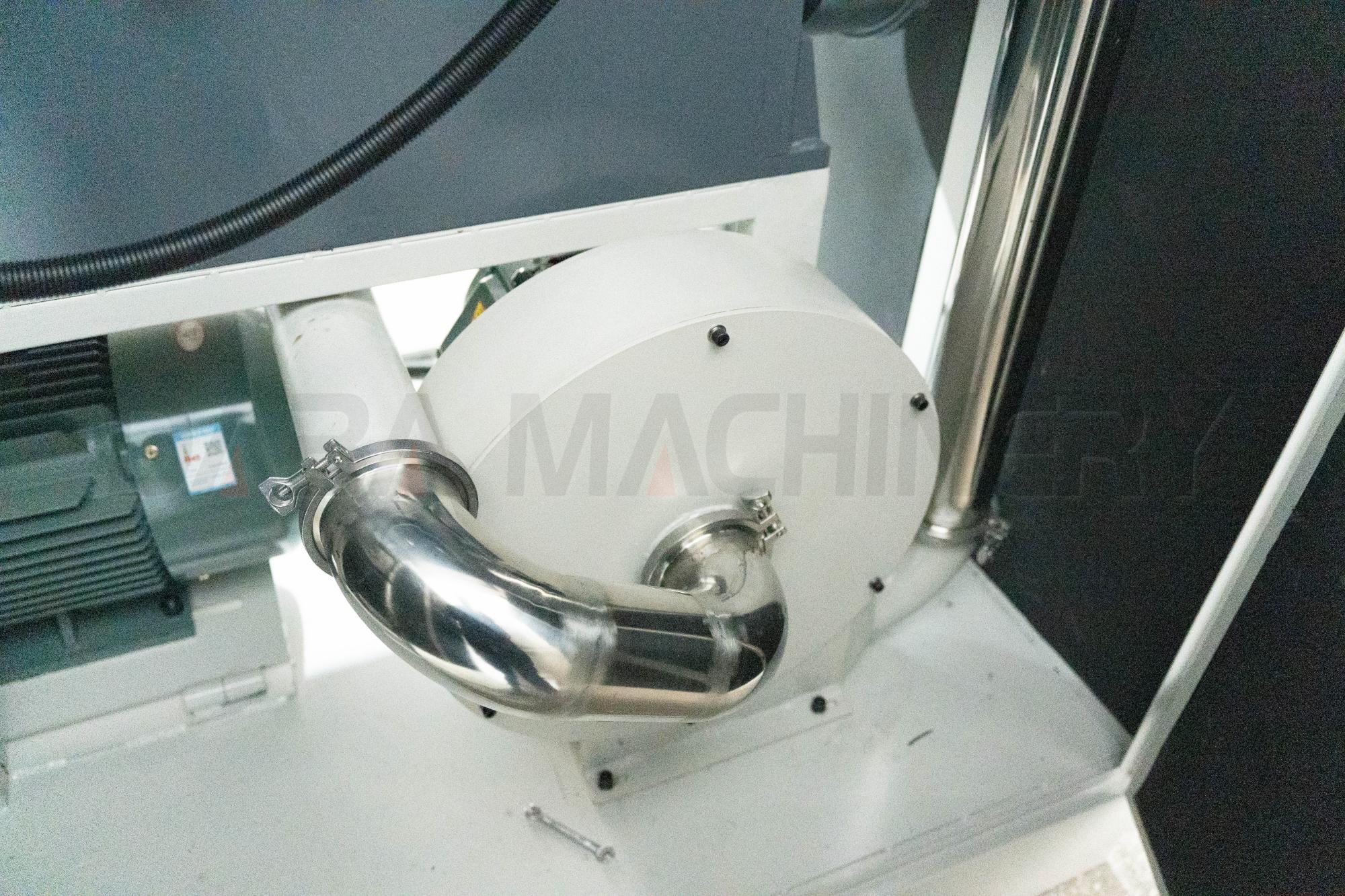

4. Air Conveying DischargeQualified crushed materials are collected through the bottom hopper and blown out of the crushing chamber by a high-pressure blower for continuous operation. |
| |

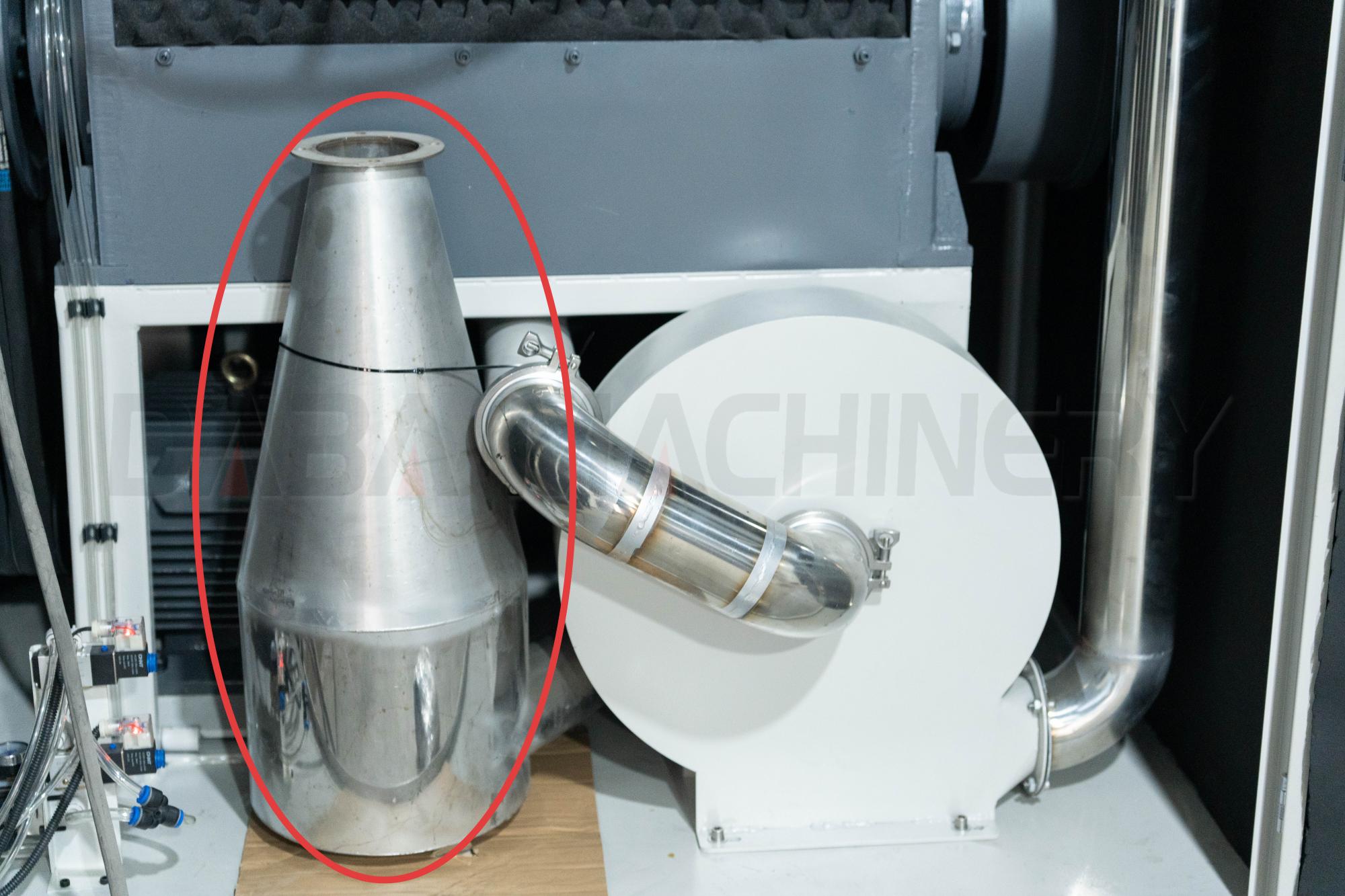

| 5. Cyclone Collection SystemThe material-air mixture enters the cyclone separator and rotates at high speed. Plastic particles fall due to centrifugal force while air is discharged from the top, enabling centralized collection and reduced dust generation. |
