DBZS-TD120-PE Full-Servo High-Speed PE Film Cup Lid Bagging Packaging Machine_Packaging Machine_Auxiliary Machines_Products

Item	Parameter
Model	DBZS-TD120-PE
Power Supply	220V / 50Hz
Packaging Film	PE heat shrink tubular film, CPP heat-seal tubular film
Driving System	Servo + Pneumatic
Max Packaging Speed	10–15 bags/min (depending on product & bag length)
Max Film Width	≤220 mm (double-layer width)
Packaging Diameter	Customizable
Film Thickness	0.02–0.08 mm
Max Film Roll Diameter	≤420 mm
Air Pressure	0.4–0.6 MPa
Total Power	≤4.5 kW
Adjustable Table Height	950–1050 mm (customizable)
Applicable Product Shape	Round (square & irregular shapes customizable)
Applicable Lid Diameter	Flat lids (special-shaped lids) 40–120 mm (customizable)
Machine Dimensions	L3575 × W1160 × H1480 mm (without cup slot width)
Machine Weight	630 kg

Product details

Product Description

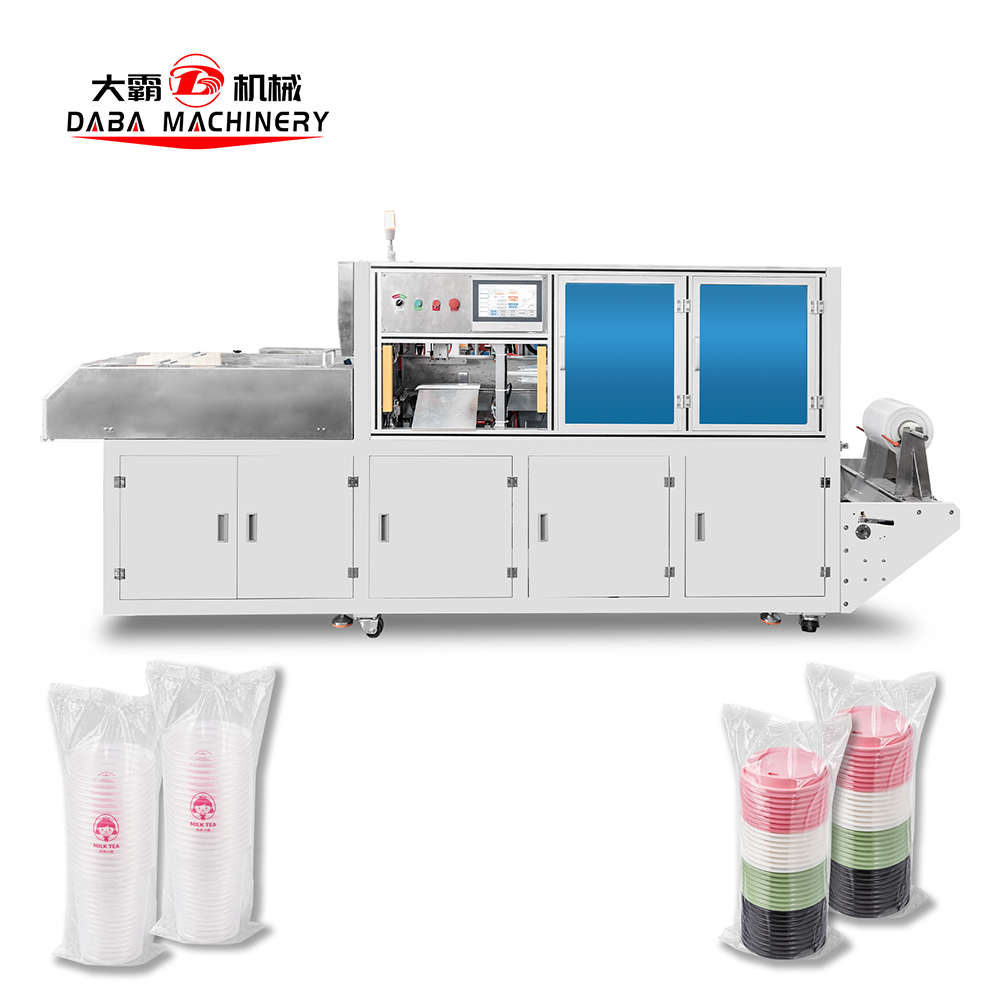

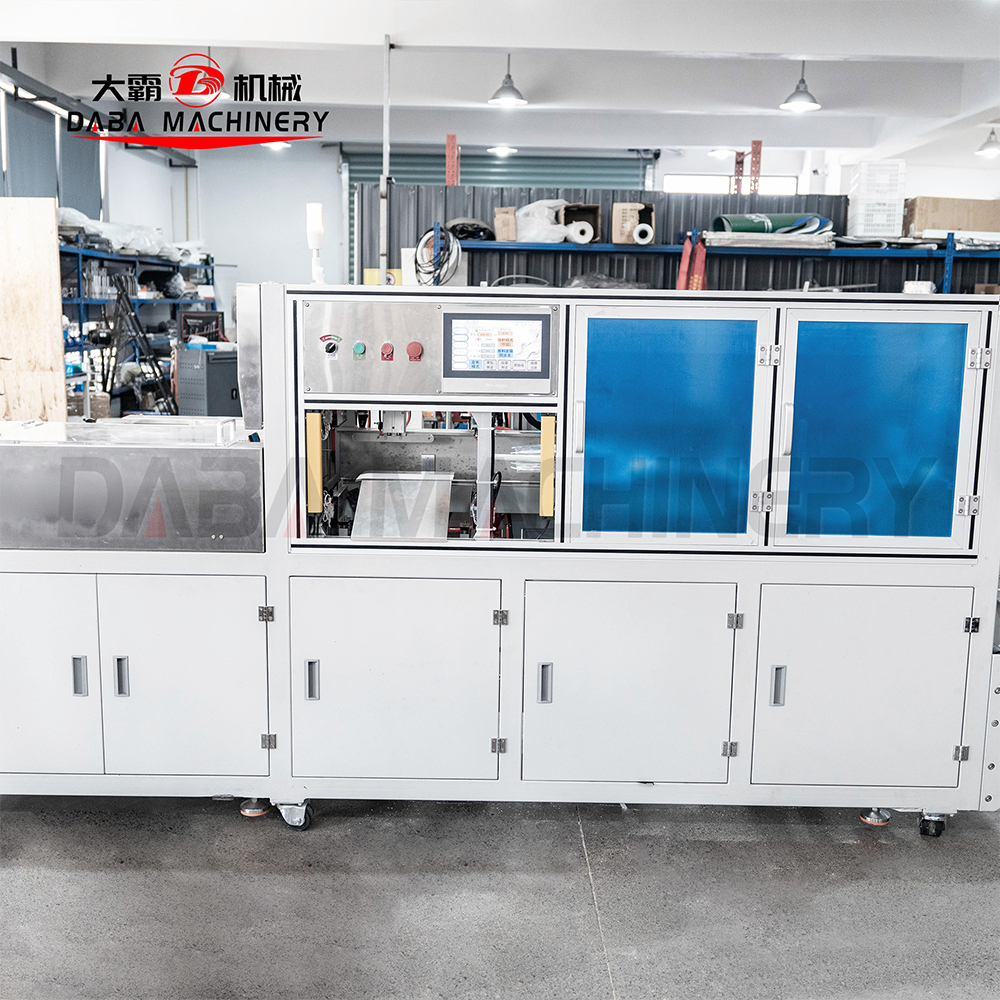

DBZS-TD120-PE Full-Servo High-Speed PE Film Cup Lid Bagging Packaging Machine is specially designed for automatic bagging of cup lids, paper cups, and plastic cups. Using tubular film and a three-servo system, it completes pushing, bagging, and sealing in one continuous cycle, reaching 14–15 bags/min. It supports BOPP, POF, CPP, and laminated heat-sealable films (0.02–0.08 mm), eliminating the longitudinal sealing process for higher efficiency and lower material consumption.

DBZS-TD120-PE PE Film Cup Lid Bagging Packaging Machine description

Machine Features

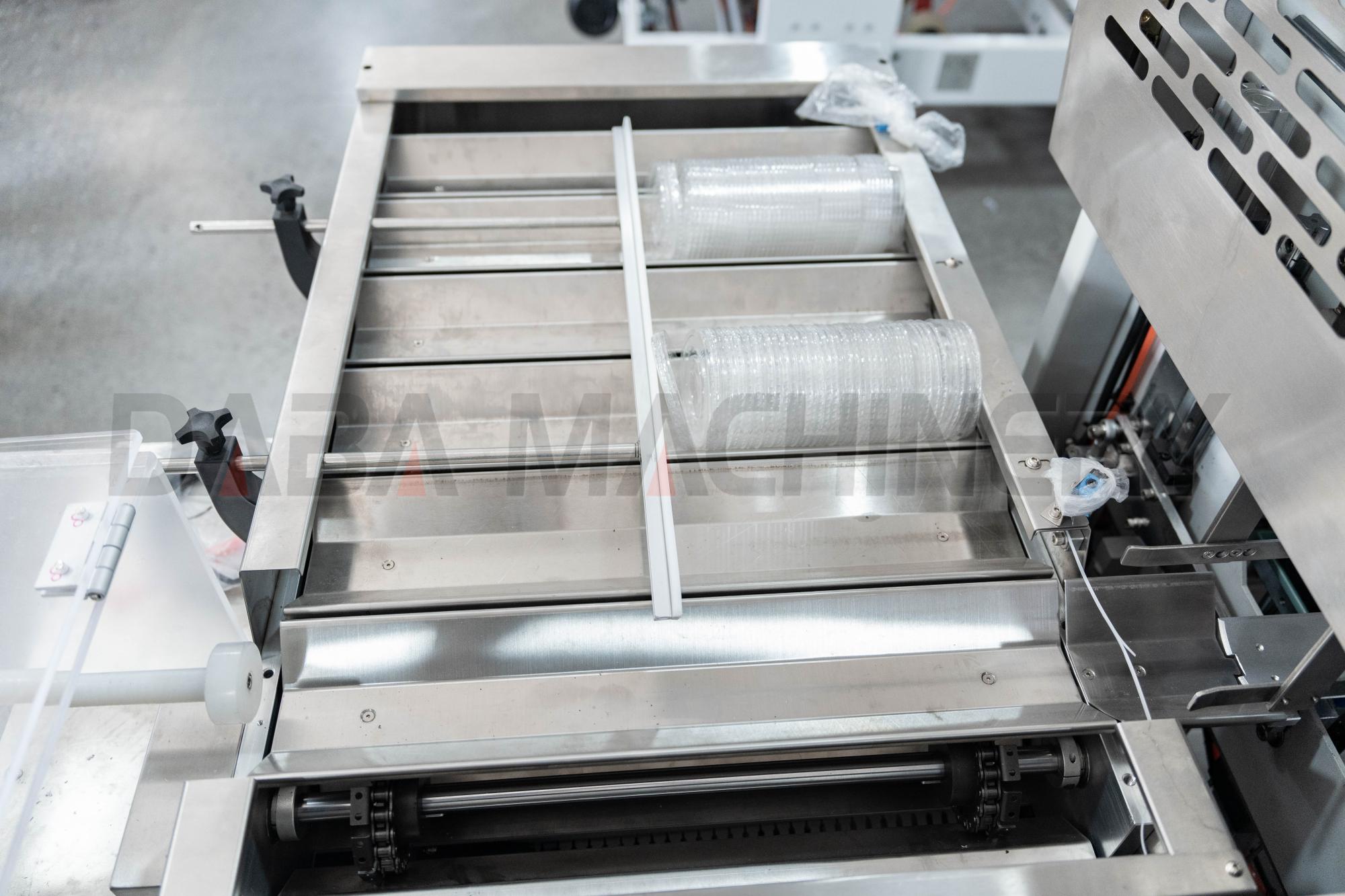

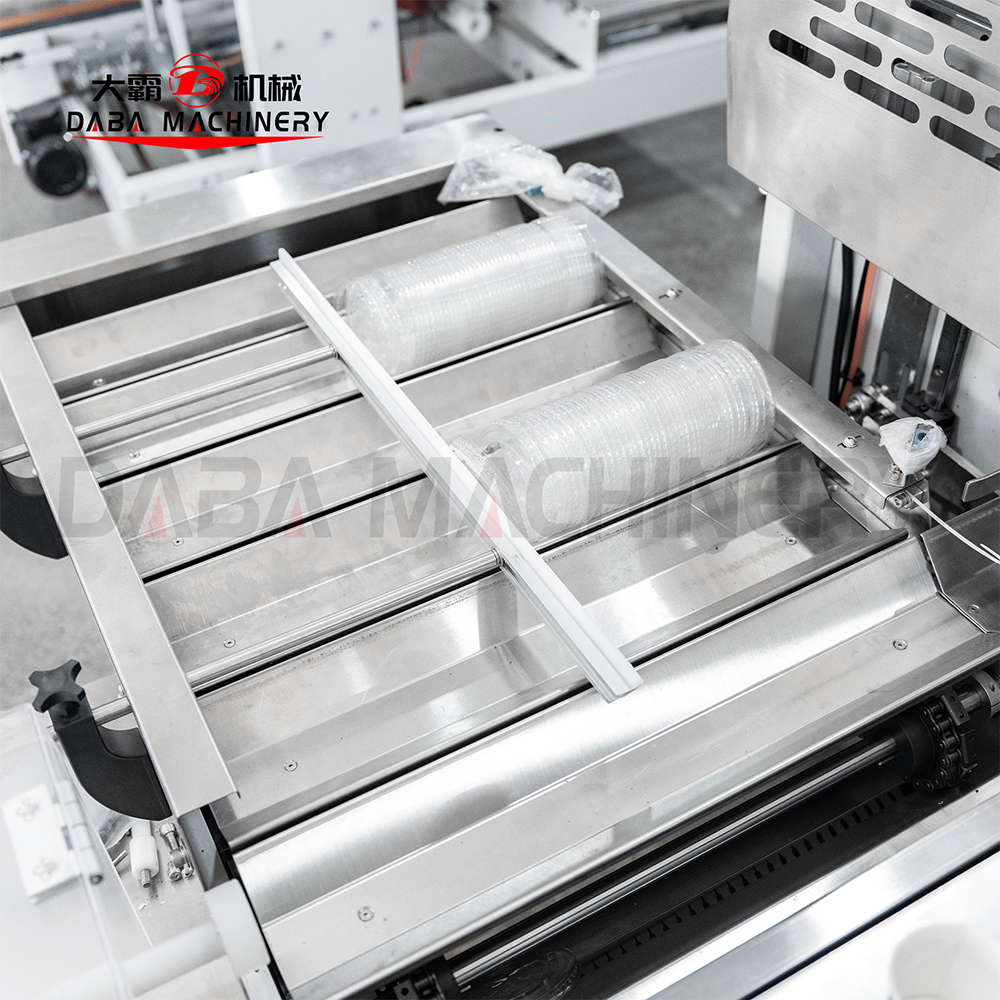

		1. Hopper Storage Unit The machine is equipped with a standard hopper composed of multiple material channels. The channel length can be customized according to customer requirements to accommodate different product sizes.

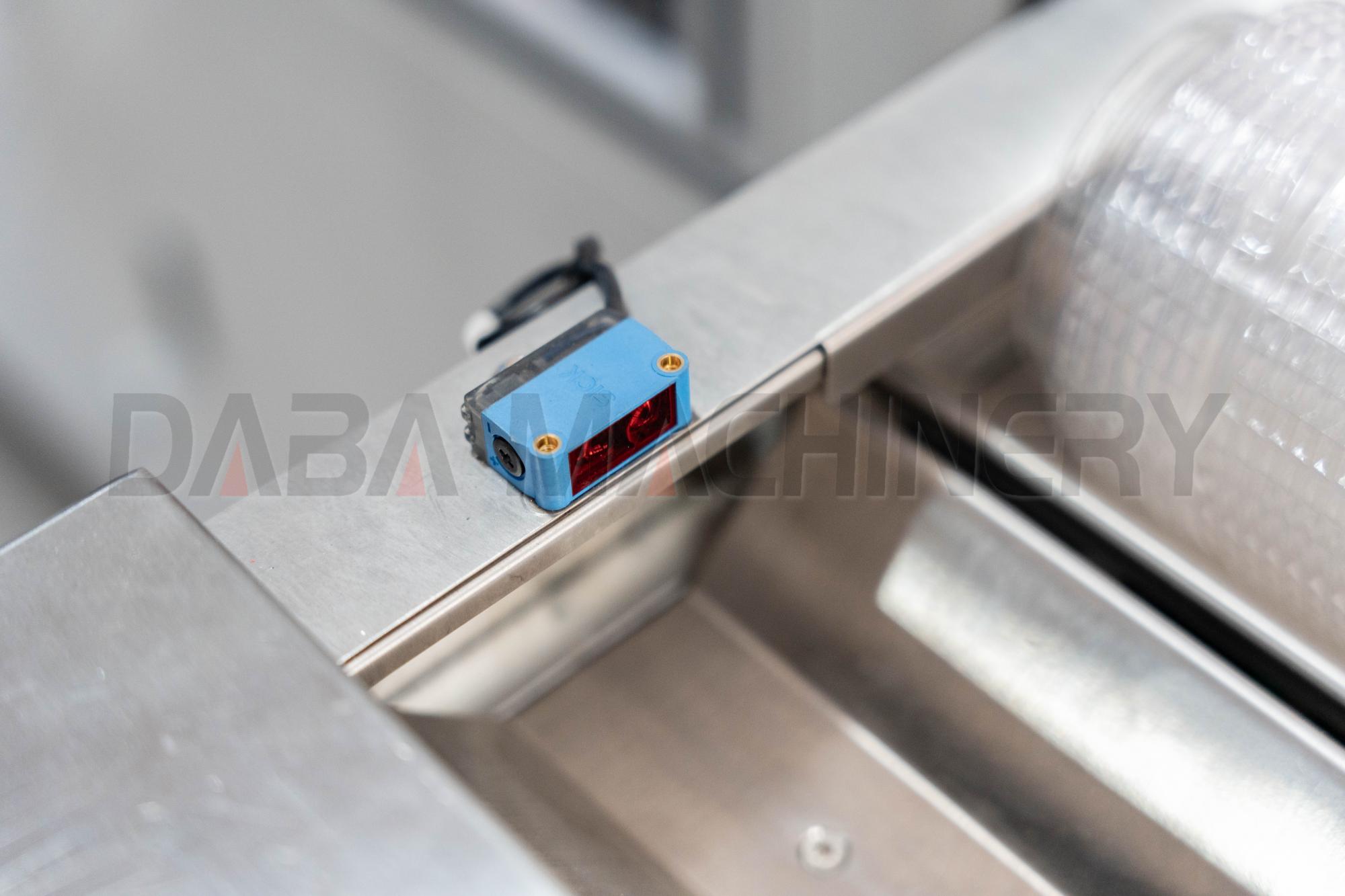

2. Material Detection Photoelectric Sensor A photoelectric sensor monitors material supply in real time. When material shortage is detected, the system automatically stops and triggers an alarm to prevent empty packaging.

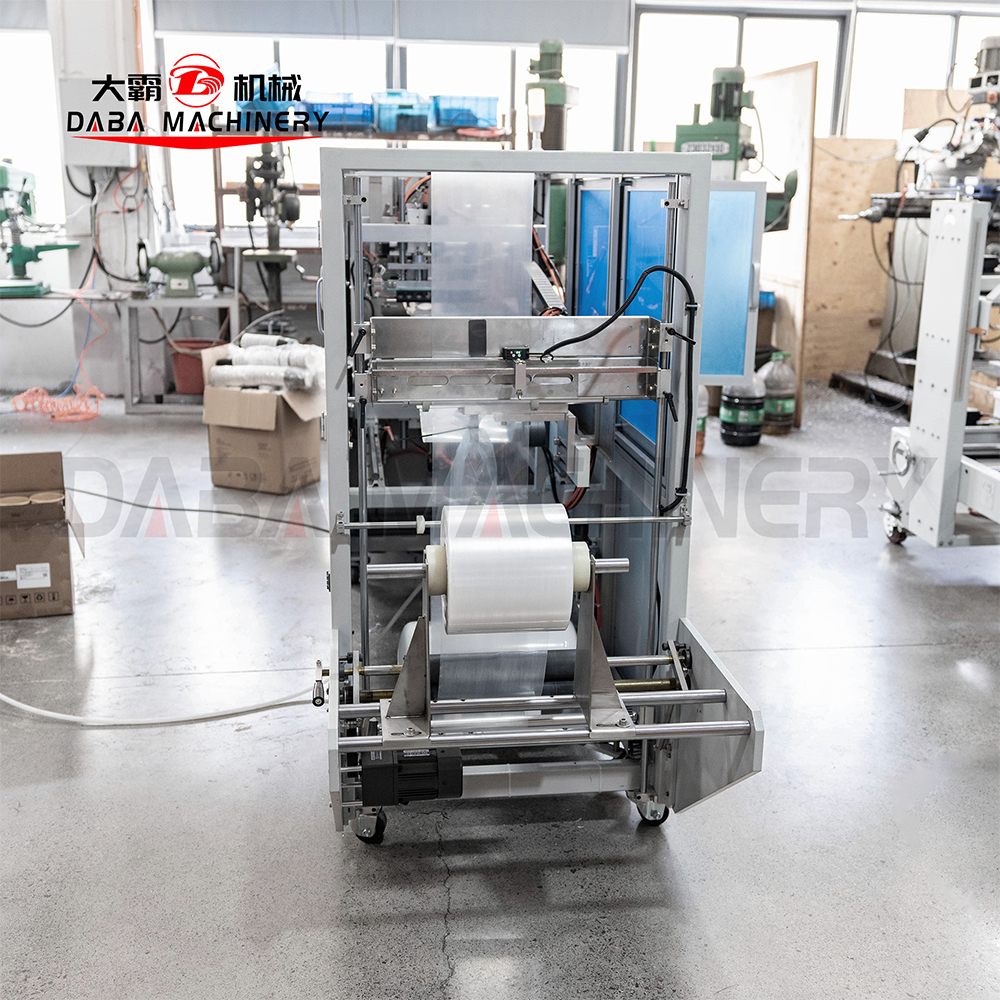

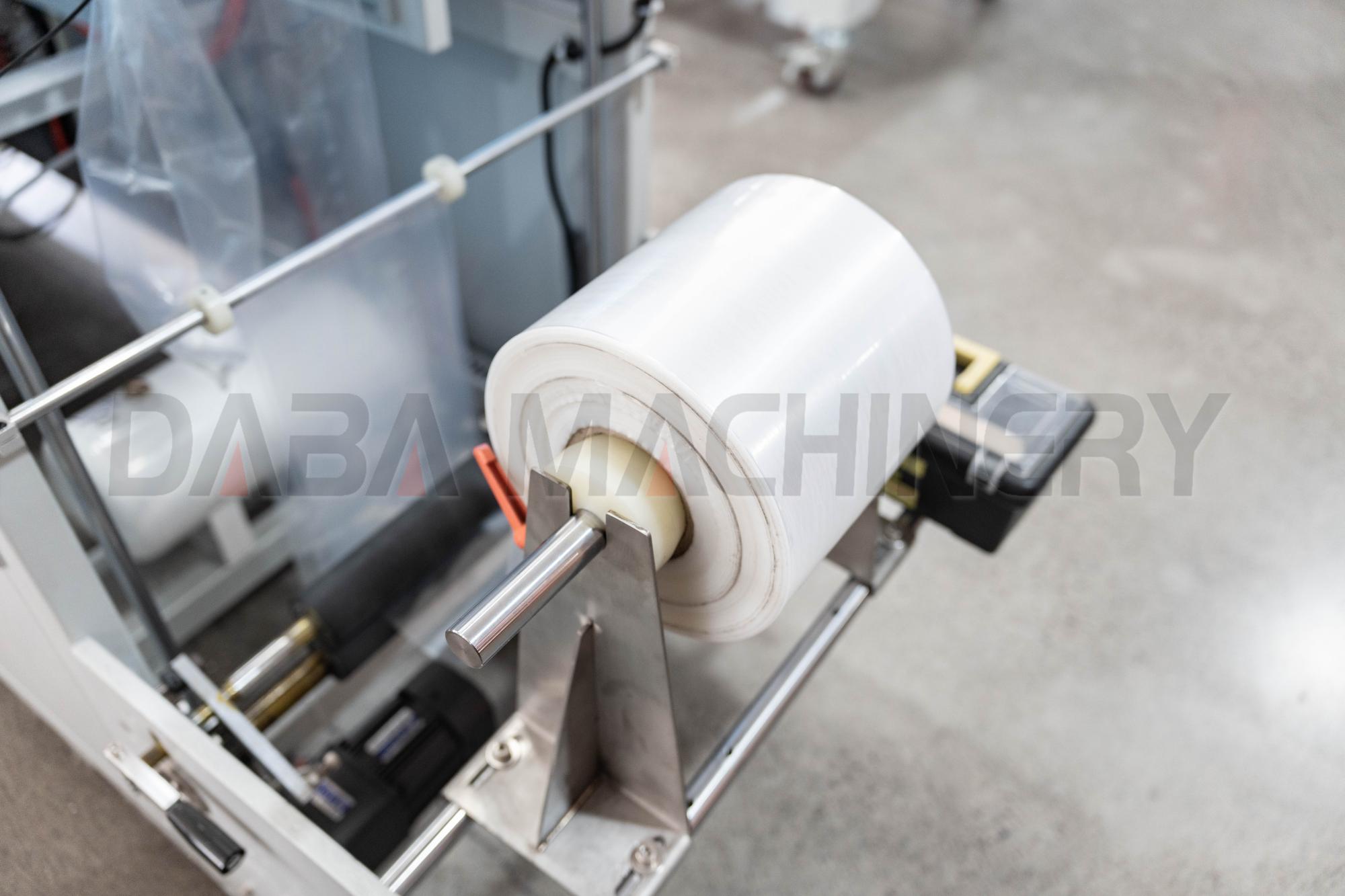

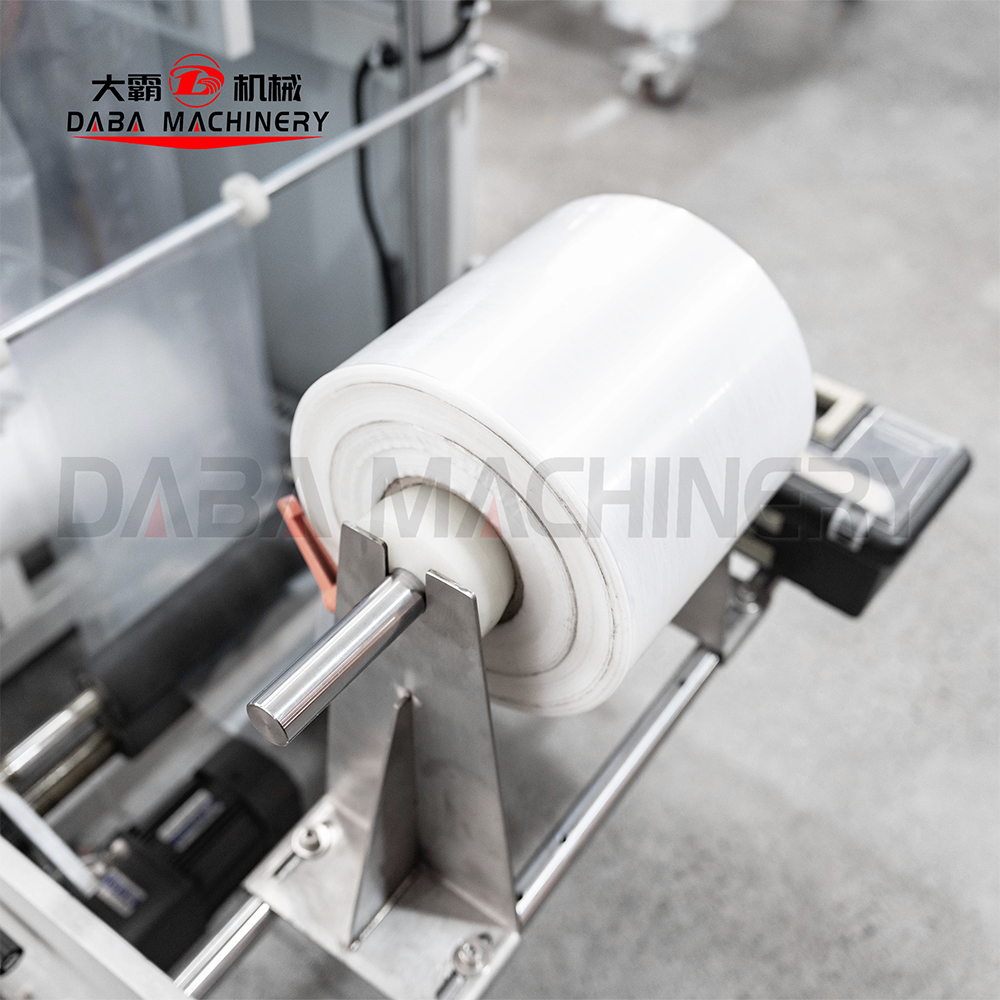

		3. Film Unwinding Station The film roll is fixed using a mechanical shaft with top sleeve support, ensuring stable film feeding during operation.

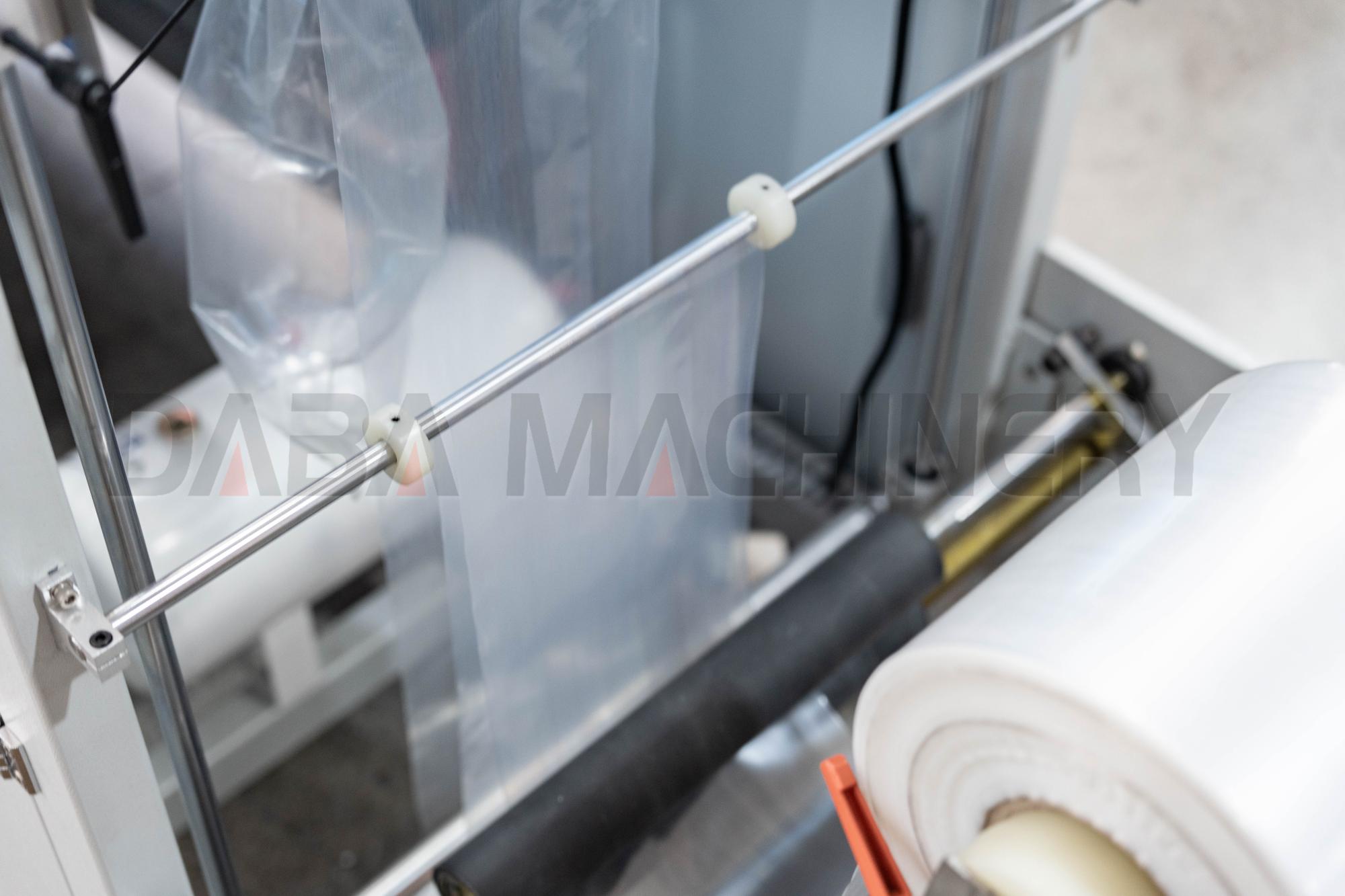

4. Film Positioning Clamping Unit Multiple left and right positioning clamps keep the film centered before entering the bagging section, ensuring precise alignment.

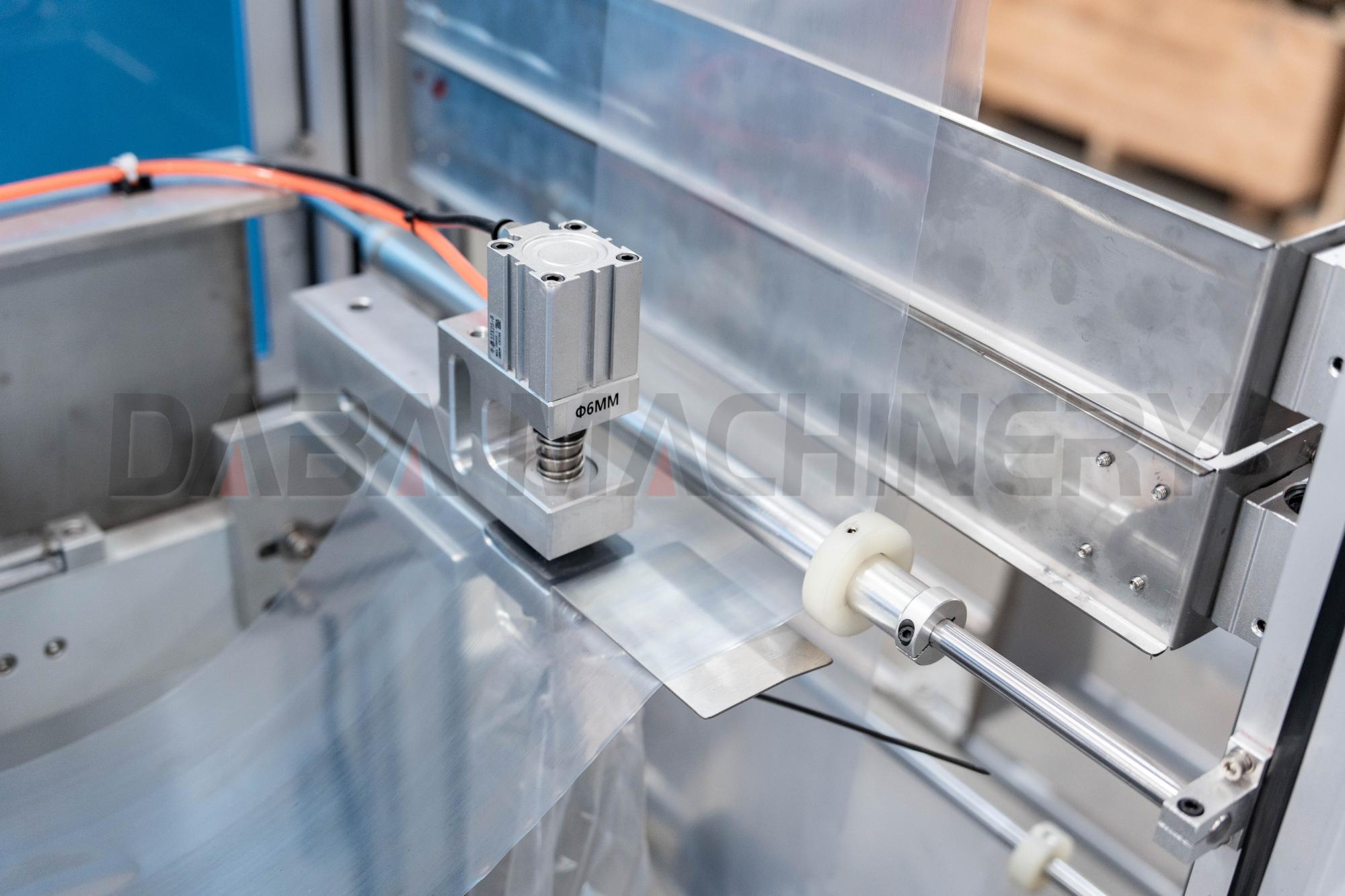

		5. Perforation Device Vent holes are punched in the film before sealing, allowing air release inside the bag for easier bagging, sealing, and transportation.

6. Film Pulling Unit A servo motor controls the film feeding system, accurately adjusting film length according to preset bag length or color mark signals.

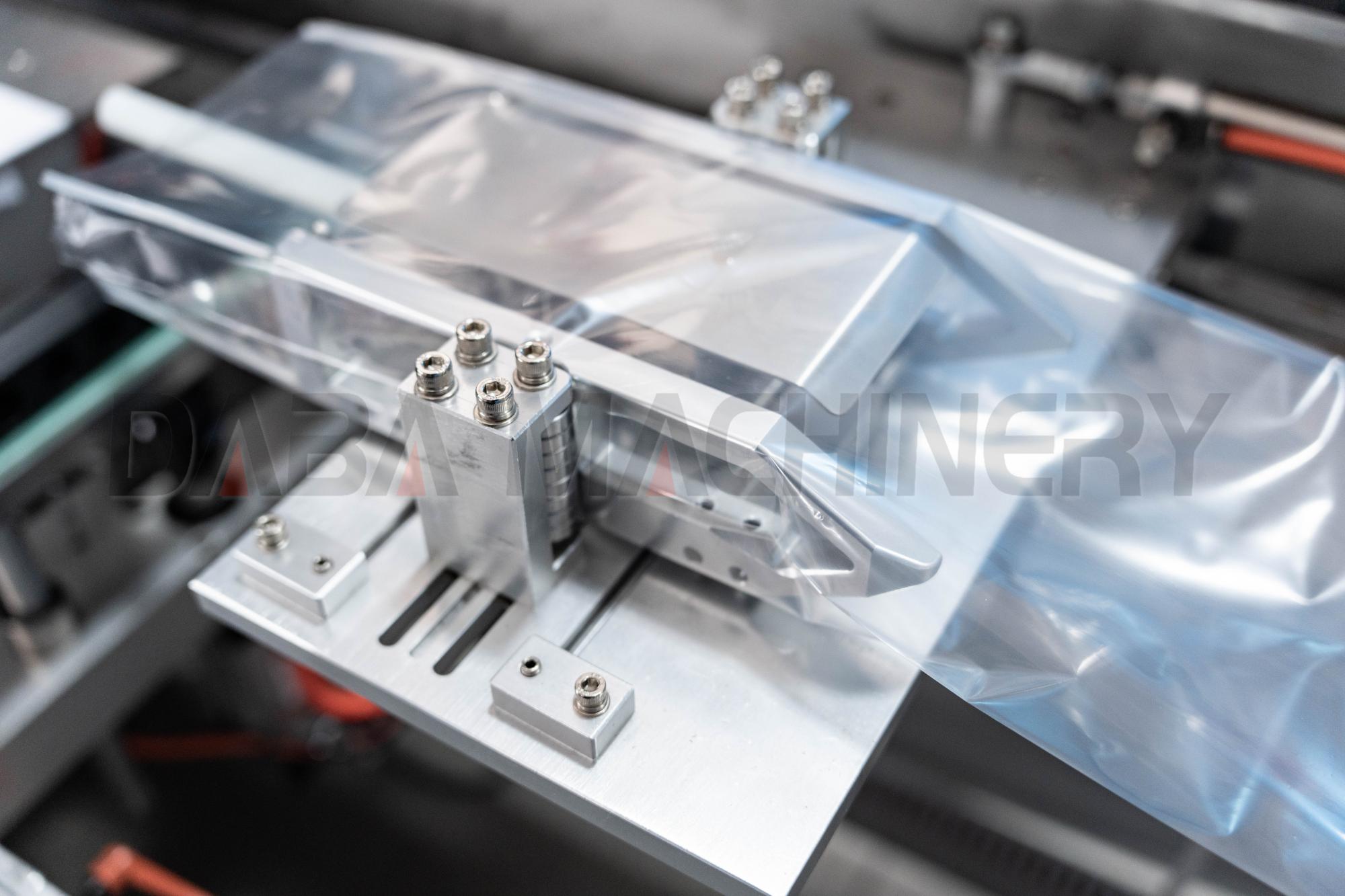

		7. Bag Opening Device The tubular film passes through a bag-opening mechanism to pre-open the bag, making product insertion smoother and faster.

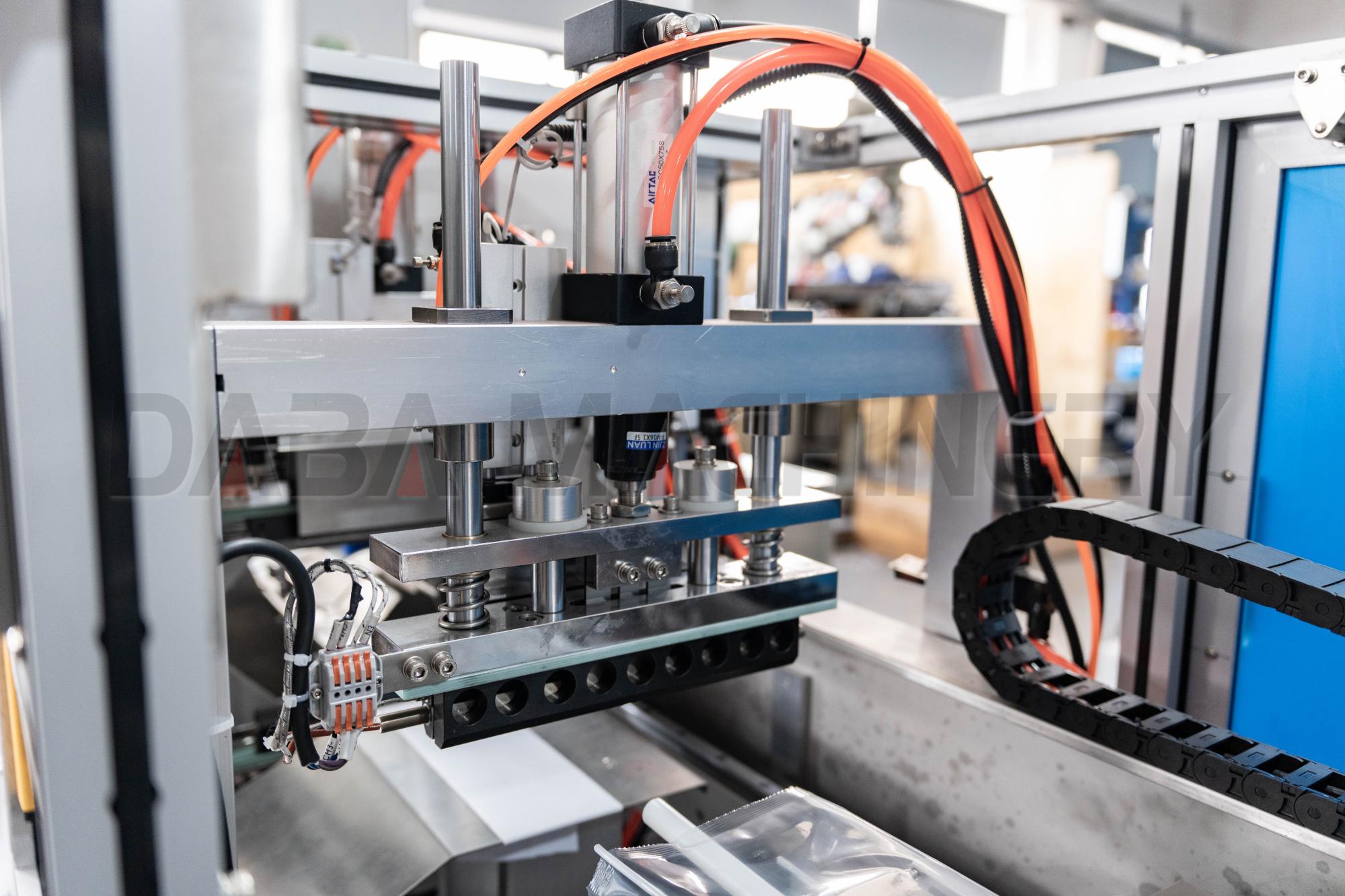

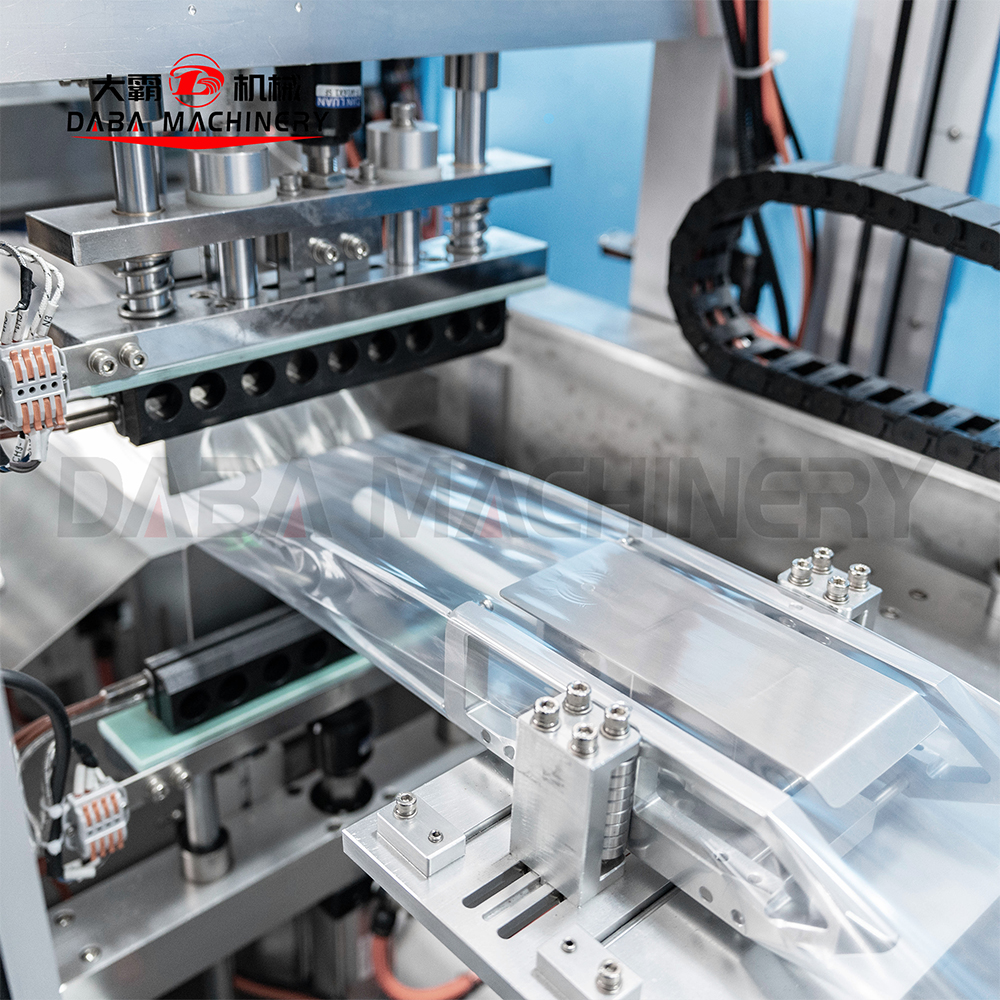

8. Bag Mouth Heat Sealing Unit After the product stack is pushed into the bag, the upper and lower sealing knives perform heat sealing on the bag opening to complete the packaging process.

		9. Bottom Sealing & Cutting Unit The bag bottom is heat sealed and cut simultaneously. The cut edge becomes the opening for the next bag, enabling continuous operation.

10. Finished Product Output Finished bags automatically drop after cutting. A side pusher transfers the bags onto an inclined slide for easy collection in cartons by the operator.
