| Parameter | Specification |
|---|---|
| Model | DB-200 |
| Max Speed | 40 cycles/min |
| Punching Structure | Hydraulic Cylinder |
| Pot Height Range | 1–200 mm |
| Maximum Height | 200 mm |
| Height Adjustment Range | 100 mm |
| Rotary Table Indexing Stations | 7–8 stations |
| Hydraulic Pump Motor | 5.5 kW (4-pole) |
| Rotary Table Servo Motor | 1 kW |
| Servo Gearbox Ratio | 10:1 |
| Hydraulic Cylinder Stroke | 0–200 mm |

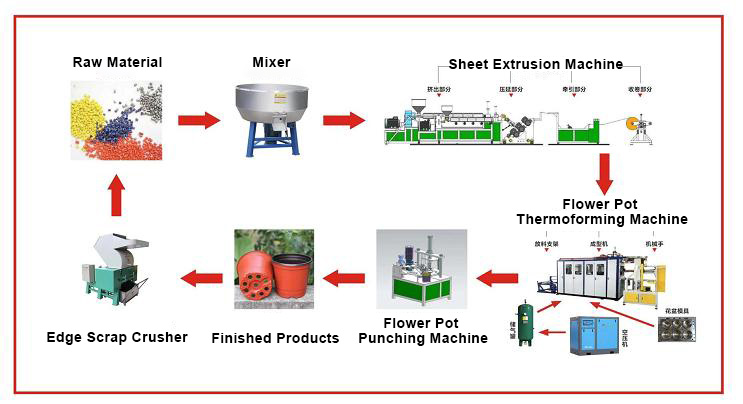

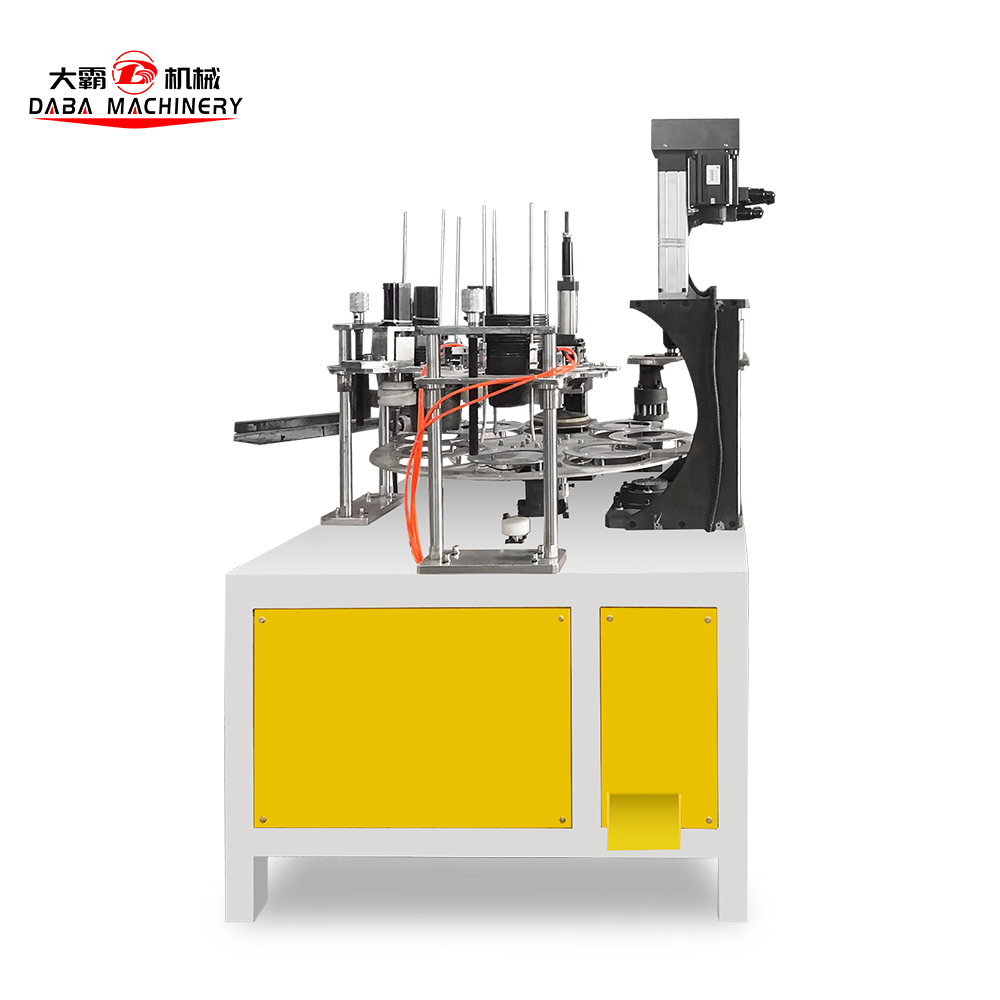

The DB-200 Hydraulic Flower Pot Punching Machine is designed for high-efficiency and precise punching of drainage holes in plastic flower pots. Driven by a hydraulic cylinder system, the machine delivers strong and stable punching force while maintaining consistent hole quality at speeds up to 40 cycles per minute. Its rotary indexing table with 7–8 stations enables continuous operation, improving productivity and reducing manual handling. The adjustable height range and servo-controlled indexing ensure flexible compatibility with different pot sizes and heights. This machine is an ideal solution for automated flower pot production lines, helping manufacturers improve efficiency, reduce labor costs, and achieve stable, high-quality output.
